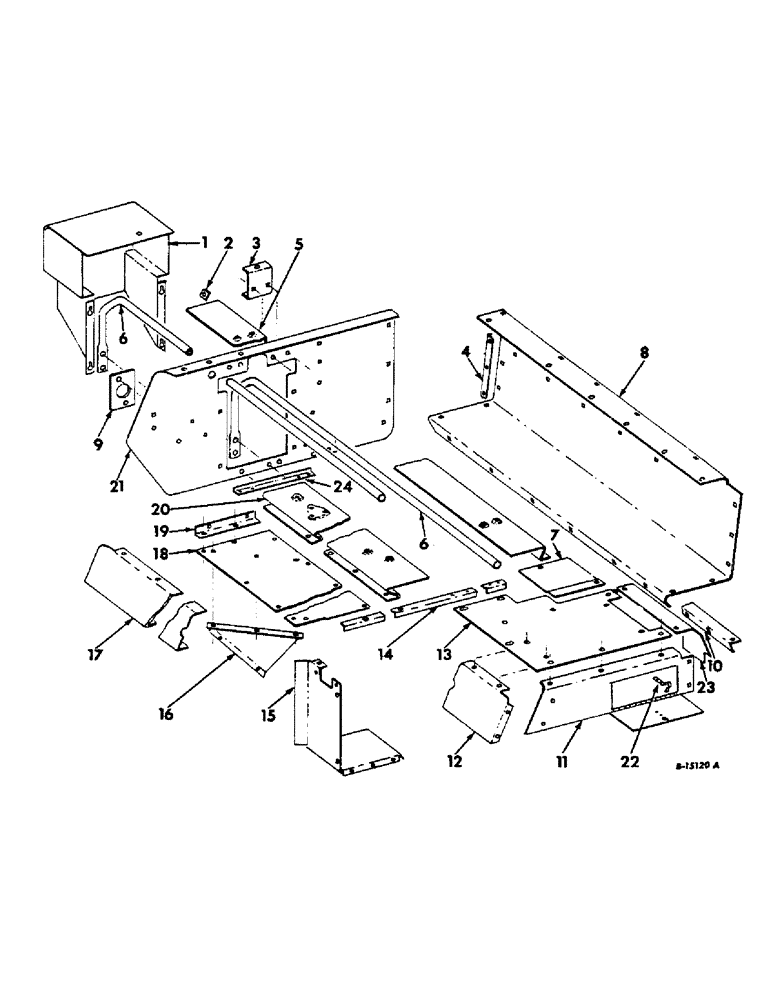

Запчасти Case IH 420 (D-07) - CROSS CONVEYOR AND FEED OPENING

1

670449R91

COVER

ASSY, feeder

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 spinlock

4шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt pan hd C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga C-Z

1шт.

2

670465R1

BUMPER

crg, 000504 thru 003106

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

4шт.

2

202607C1

STOP

BUMPER, carriage, 003107 and up

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach.

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

670467R1

BRACKET

rear rail support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

670454R1

NUT

5/16-18 speed grip

1шт.

4

670457R1

ANGLE

cross conveyor side sheet

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

670466R3

RAIL

feeder crg rear

1шт.

670454R1

NUT

5/16-18 speed grip

7шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

7шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

9шт.

120376

NUT,5/16"-18, G5

2шт.

6

670468R91

BRACKET

PIPE ASSY, cross conveyor

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

7

673996R1

SUPPORT

PLATE, cross conveyor extension LH

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

1шт.

8

670455R1

GUARD

SHEET, feed opening

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 4 5/16"

1шт.

133837

SCREW, 5/16-18 x 1 C-Z slt-f-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

670531R1

PLATE, pickup pivot RH brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

670458R1

ANGLE

cross deck support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

11

673991R1

DOOR SEAL

DOOR ASSY, clean-out

1шт.

12

670473R1

SUPPORT ASSY.

SUPPORT, cross conveyor LH front

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

670479R2

PLATE

COVER, cross conveyor LH

1шт.

14

670641R2

ANGLE

knotter shield support

1шт.

144811

SCREW,Sl Rnd Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z slt-rd-hd tap

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

2шт.

15

670460R91

OPENING ASSY, feed

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

670478R1

DEFLECTOR

hay

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

670474R1

COVER ASSY

COVER, cross conveyor front

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

5шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga C-Z

5шт.

18

670475R1

PLATE

SHEET, cross conveyor top

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

4шт.

19

670477R1

ANGLE

cross conveyor side sheet front

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

670464R4

RAIL

feeder crg front

1шт.

670454R1

NUT

5/16-18 speed grip

7шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

7шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

6шт.

120376

NUT,5/16"-18, G5

2шт.

21

670453R1

SHEET

cross conveyor side

1шт.

670454R1

NUT

5/16-18 speed grip

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

673995R1

LATCH

door

1шт.

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

8-32 x 3/4 znd slt-pan-hd mach

2шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

3шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

200430C1

BAFFLE

breast plate

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

3шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

24

202608C1

ANGLE

carriage stop

1шт.
