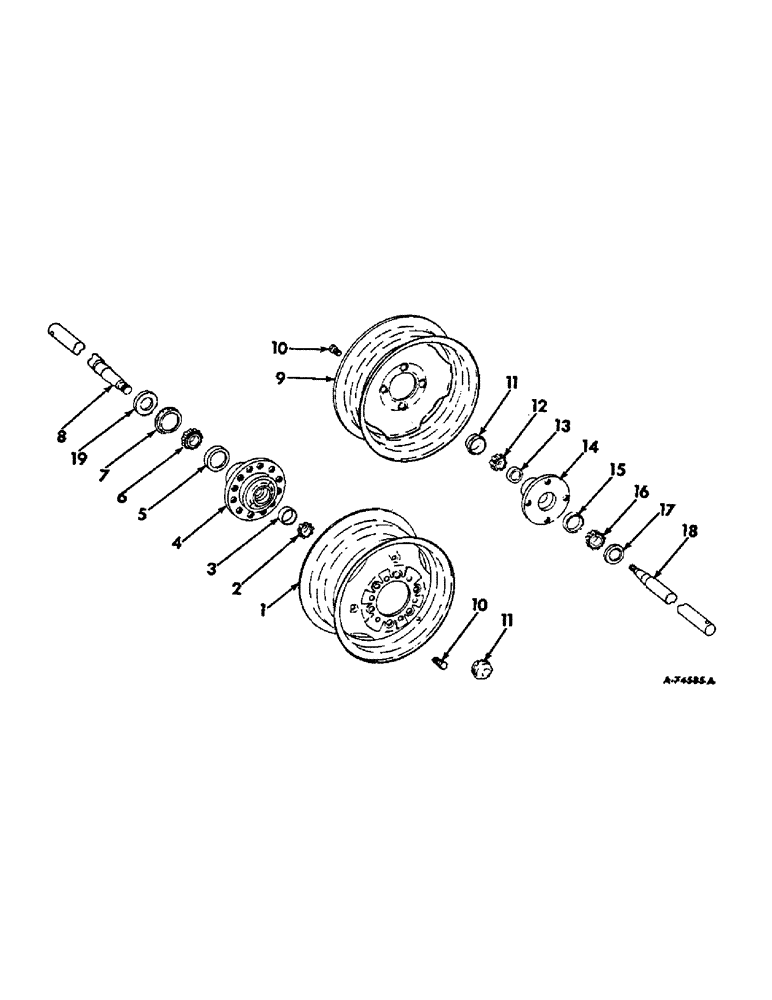

Запчасти Case IH 420 (D-06) - WHEELS AND AXLES
№
Артикул
Название
Примечание
Количество
1
518823R91
WHEEL
RIM ASSY, left wheel, 6.40 x 5 KB D.C. rim for 6.40 x 15 tire
1шт.
2
519467R91
BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"
ASSY, left wheel outer cone
1шт.
3
M32951
BEARING CUP,0.75" ID x 1.938" OD x 0.78125"
BEARING, left wheel outer cup
1шт.
4
662993R11
HUB
W/BEARING CUPS & BOLTS, wheel LH
1шт.
5
ST991
BEARING CUP
BEARING, left wheel inner cup, replaces 54628H
1шт.
6
453279R91
ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"
ASSY, left wheel inner cone
1шт.
7
661875R91
OIL SEAL
left wheel brg oil, replaces 661876R91
1шт.
8
670702R1
SPINDLE
wheel LH
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
427640
SLOTTED NUT,3/4"-16, G5
NUT, 3/4-16 C-Z slt hex.
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
1шт.
137218
COTTER PIN,5/32" x 1 1/4"
PIN, SPLIT (COTTER), 5/32" x 1 1/4"
1шт.
9
662994R91
WHEEL
RIM ASSY, RH wheel, 5.00 x 4 J D.C. rim for 5.00 x 15 tire
1шт.
10
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
wheel
10шт.
11
651194R1
CAP
hub
2шт.
12
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, RH wheel outer cone
1шт.
12
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
13
651814R1
BEARING CUP
BEARING, RH wheel outer cup
1шт.
14
663054R91
HUB
W/BEARING CUPS & BOLTS, wheel RH
1шт.
17
663004R91
OIL SEAL
RH wheel brg oil
1шт.
18
670864R1
SPINDLE, wheel RH, 000504 thru 003106
1шт.
18
202261C1
CENTER AXLE
SPINDLE, wheel RH, 003107 and up
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
125267
NUT
5/8-18 C-Z slt hex.
1шт.
NLS
NO LONGER SERVICED
21/32 x 1-5/16 x .095 C-Z
1шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), 5/32" x 1"
1шт.
19
(Not used)
1шт.
Выбрано товаров: 33
