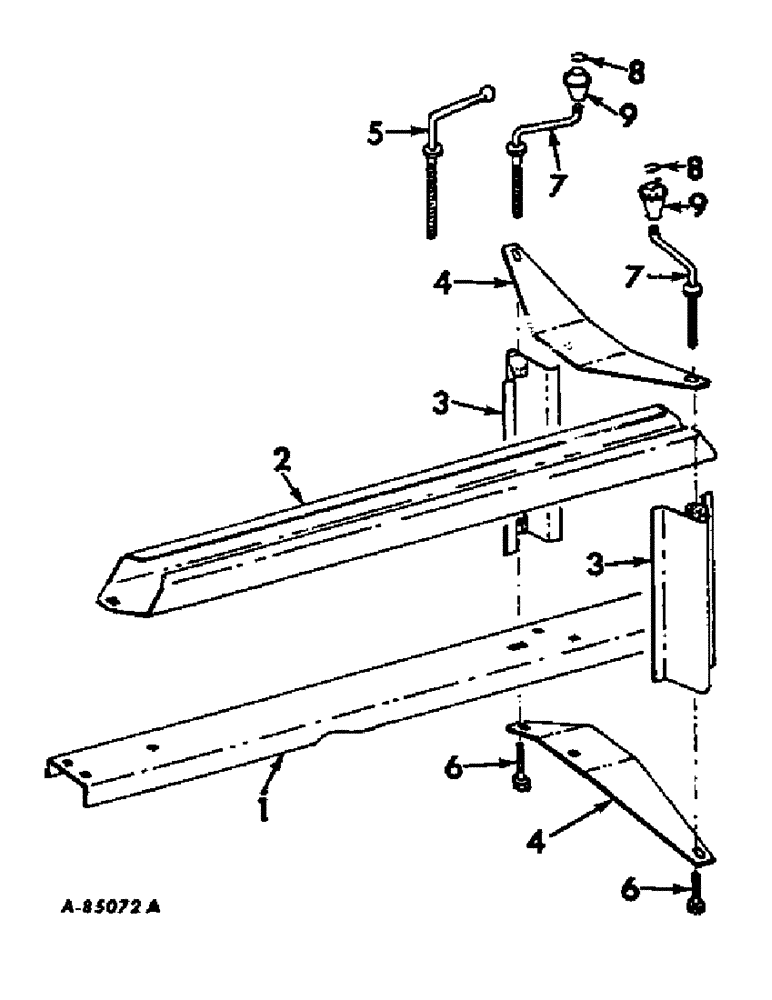

Запчасти Case IH 420 (D-42) - TOP AND BOTTOM TENSION CHANNEL, WHEN ORDERED

1

674024R1

X

CHANNEL ASSY, lower tension

1шт.

2

674025R1

X

CHANNEL, upper tension

1шт.

3

674029R1

BRACKET

STRIP ASSY, bale tension

2шт.

219436

NUT, 5/8-11 znp thick hex.

2шт.

4

674992R1

SPRING

tension channel

2шт.

18700R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2

BOLT, 7/16 x 3 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

674026R1

SCREW ASSY, tension adjusting, 1968 and 1969

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

6

674028R1

BOLT

tension channel

2шт.

121358

YOKE

5/8-18 znd hex.

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

7

200673C1

CRANK

SCREW ASSY, tension adjusting, 1970 and up

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

8

321935C1

SNAP RING,#62, Ext

Ring, Snap, , bale tension knob, 1970 and up #62, Ext

2шт.

9

201397C1

KNOB

ASSY, bale tension, 1970 and up

2шт.
