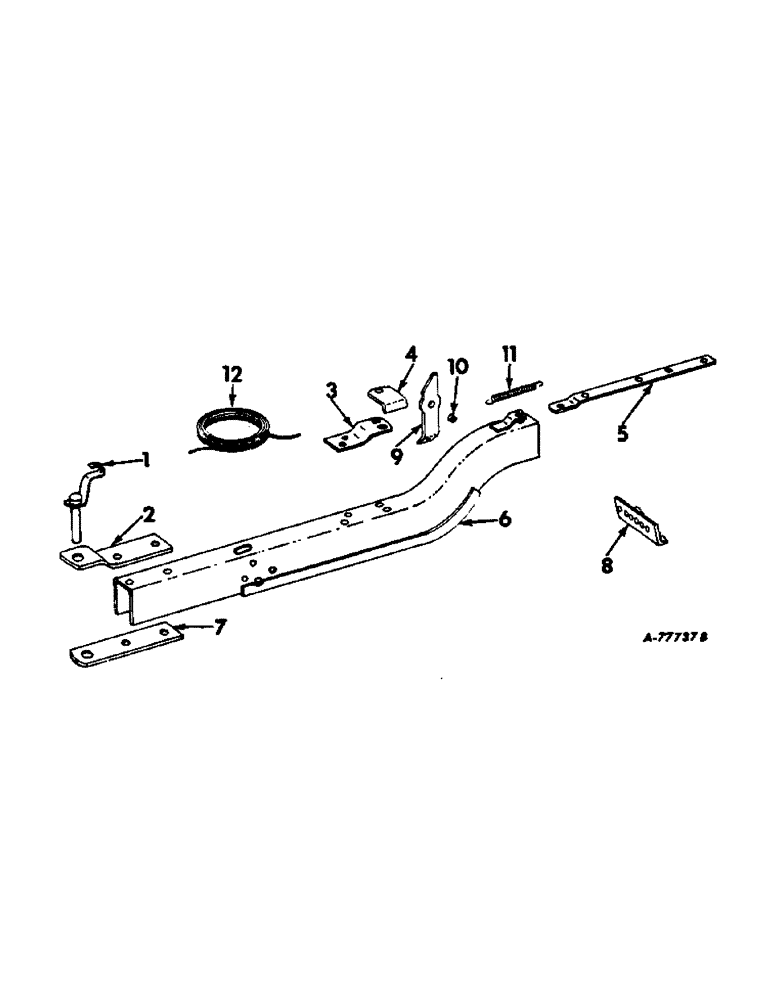

Запчасти Case IH 420 (D-03) - HITCH

1

668406R91

PIN ASSY, hitch

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

2

662145R1

STRAP

hitch clevis lower

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex. lock

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

670404R1

HOLDER

STRAP, hammer hitch

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

670405R1

LOCK, hitch channel, 000504 thru 003106

1шт.

13419R1

BOLT, 3/4 x 23 sq-hd mach

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znp hex. lock

1шт.

5

670403R1

STRAP, hitch pivot

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

2шт.

425-110

5/8-18 C-Z hex.

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

1шт.

462248R1

LOCK NUT

3/4-10 znd hex. lock

1шт.

6

670400R92

HITCH ASSY, channel, 000504 thru 003106

1шт.

6

674532R1

HITCH ASSY

channel, 003107 and up

1шт.

7

662144R1

STRAP

hitch clevis upper

1шт.

8

202673C1

GUIDE, hitch, 003107 and up

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

667622R2

LEVER

hitch, 003107 and up

1шт.

10

667623R1

BUSHING

PIVOT, hitch lever, 003107 and up

1шт.

18815R1

BOLT,Hex, 1/2"-13 x 5", G2

1/2 x 5 znd hex-hd mach

1шт.

674573R1

NUT, 1/2-13 hex. lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

11

165

SPRING

hitch lever, 003107 and up

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

12

667624R1

NO LONGER SERVICED

ROPE, hitch latch, 003107 and up

1шт.
