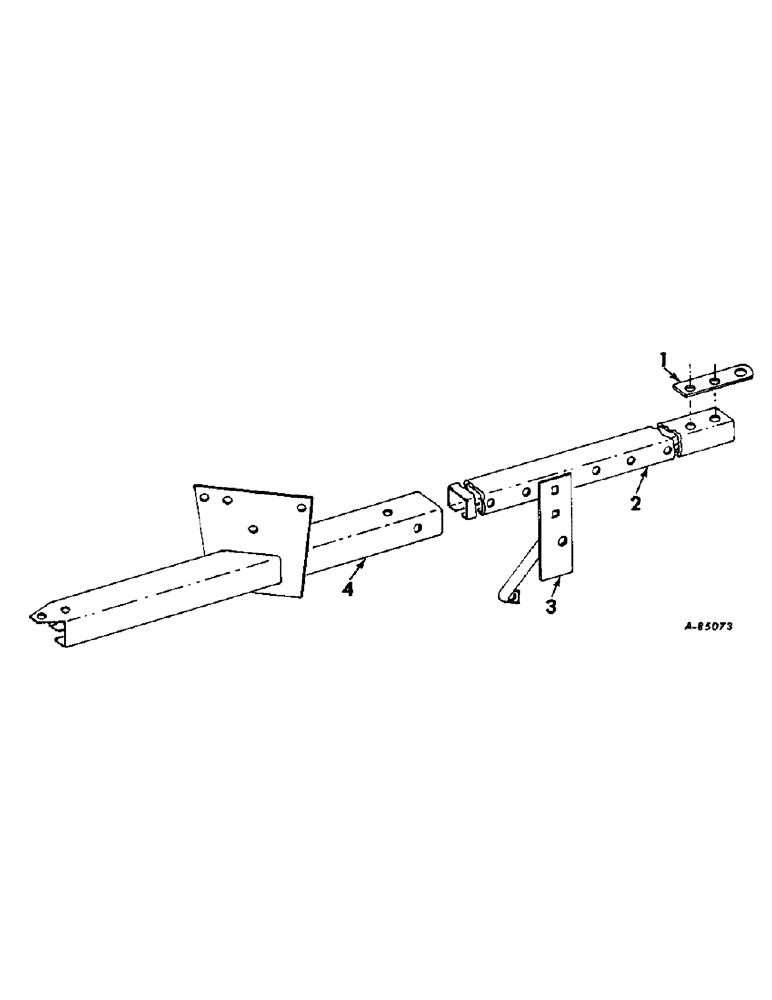

Запчасти Case IH 420 (D-41) - TRAILER HITCH ATTACHMENT, WHEN ORDERED

1

670700R1

BAR

trailer hitch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

670699R1

HITCH ASSY

HITCH TRAILER TELESCOPING

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP hex. lock

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

3

671637R91

SUPPORT

ASSY, trailer hitch

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

674041R1

HITCH ASSY

trailer stationary

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.
