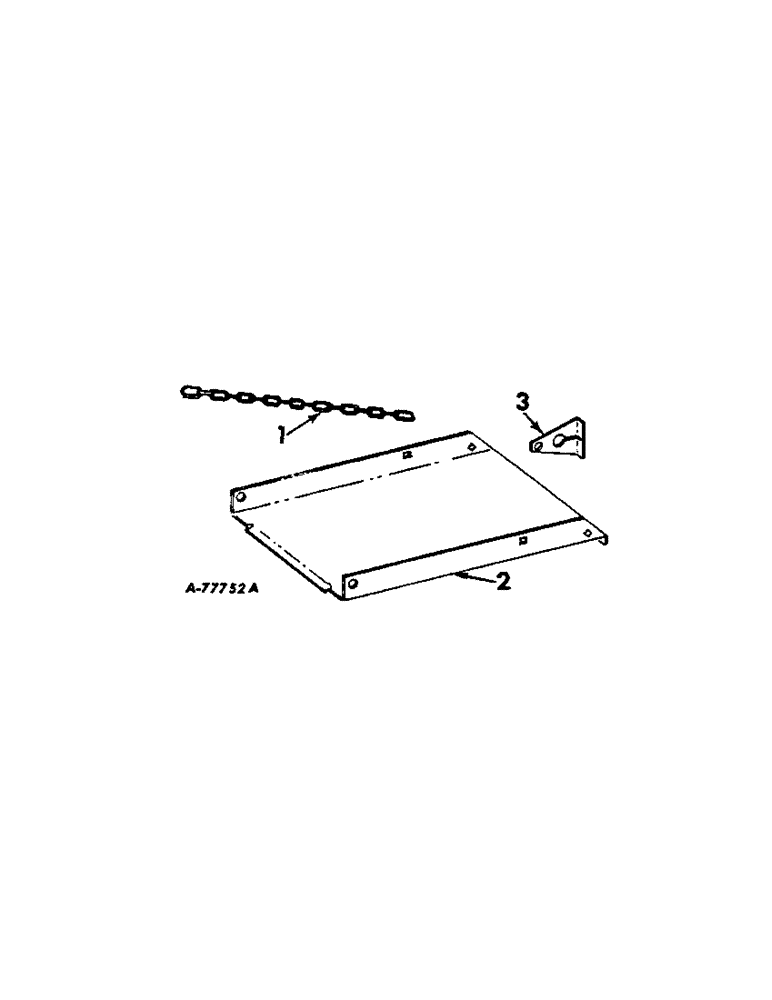

Запчасти Case IH 420 (D-40[A]) - BALE CHAMBER EXTENSION ATTACHMENT, WHEN ORDERED

1

495526R1

CHAIN (AG)

CHAIN, bale chamber ext hold-up

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 znp sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex lock

2шт.

2

667693R1

EXTENSION

bale chamber

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znp hex. lock

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

3

754484R1

NOZZLE HOLDER

HOLDER, chain

2шт.
