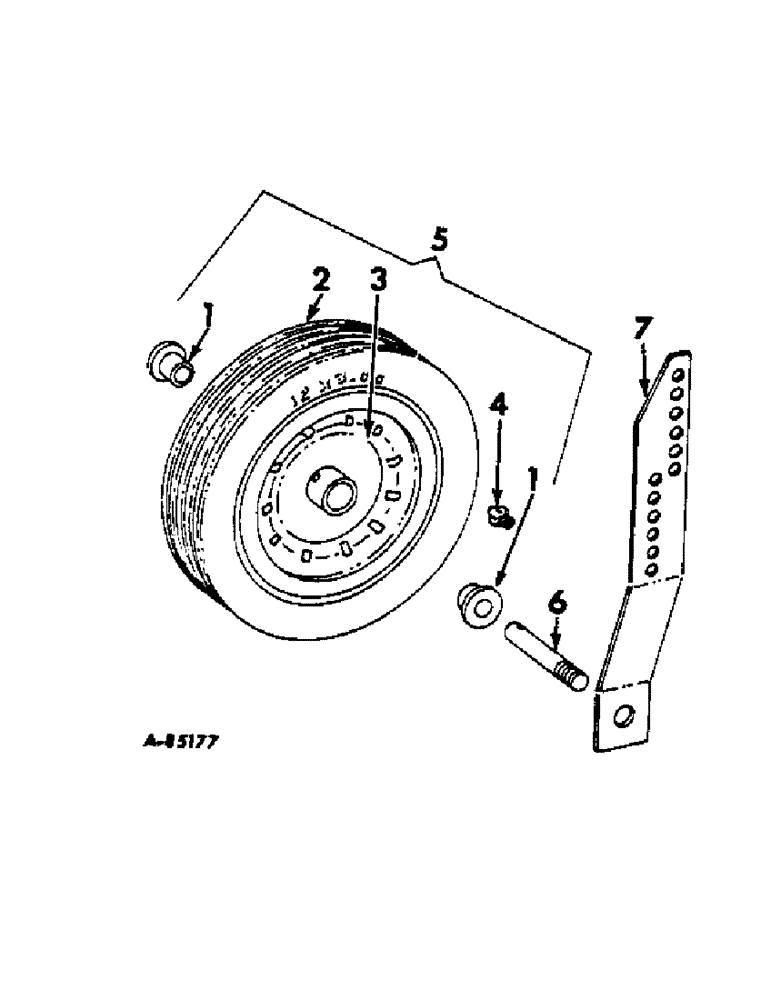

Запчасти Case IH 420 (D-39) - PICKUP WHEEL ATTACHMENT, RUBBER, WHEN ORDERED

1

202248C1

BUSHING

BEARING, pickup wheel, 2 used in gauge wheel with 1-3/8 bore

1шт.

1

669006R1

BUSHING

BEARING, pickup wheel, 2 used in gauge wheel with 1-1/8 bore

1шт.

2

669005R1

TYRE/TIRE

TIRE, pickup wheel semi-pneumatic

1шт.

3

669004R91

WHEEL

ASSY, pickup

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, .191 str drive type lub, used w/Ohion Rubber Co. and Geneva Wheel Co. only

1шт.

4

20691R1

FITTING,3/16" x .47" lg, Drive

.191 str drive type lub, used w/Dico Co. wheel only

1шт.

5

669003R91

WHEEL

PICKUP, w/semi-pneumatic tire

1шт.

6

202785C1

SHAFT, pickup gauge wheel

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 znd hex. jam

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z, (or as required)

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

7

670691R1

BRACKET

pickup gauge wheel

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.
