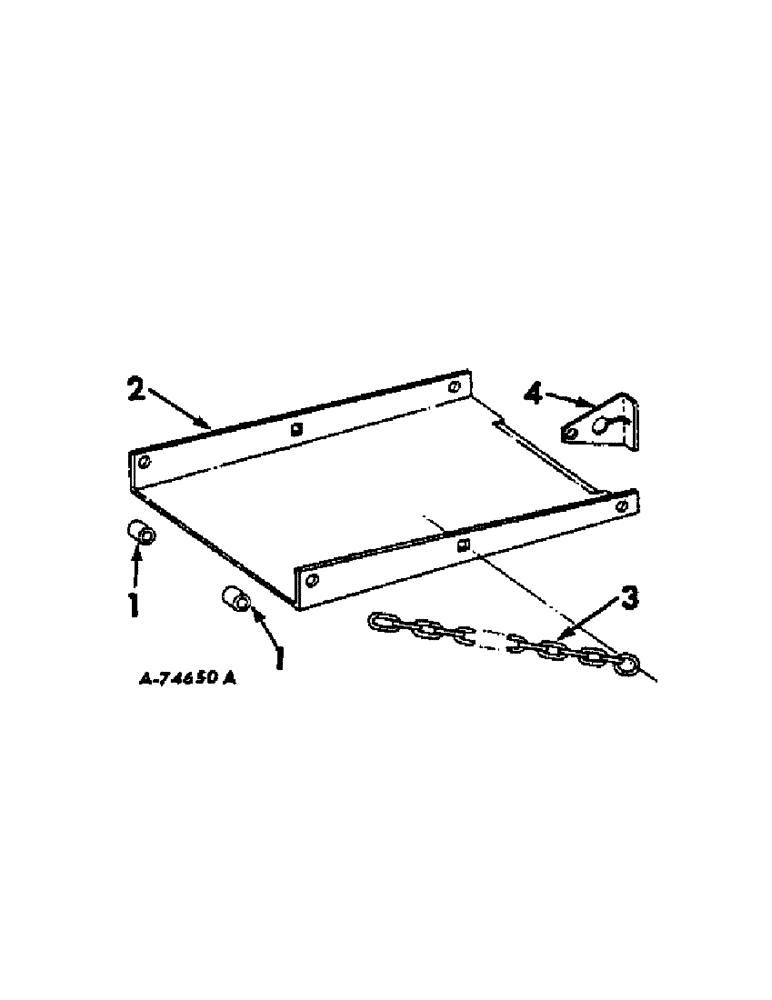

Запчасти Case IH 420 (D-39[A]) - BALE CHUTE ATTACHMENT, WHEN ORDERED

1

493354R1

SPACER

bale chute

2шт.

2

667882R2

CHUTE ASSY.

CHUTE, bale

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

3

669647R1

CHAIN (AG)

CHAIN, bale chute

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 znp sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znp

4шт.

4

754484R1

NOZZLE HOLDER

HOLDER, chain

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

2шт.
