(D-38[A]) - BALE COUNTER ATTACHMENT, WHEN ORDERED

Запчасти Case IH 420 (D-38[A]) - BALE COUNTER ATTACHMENT, WHEN ORDERED

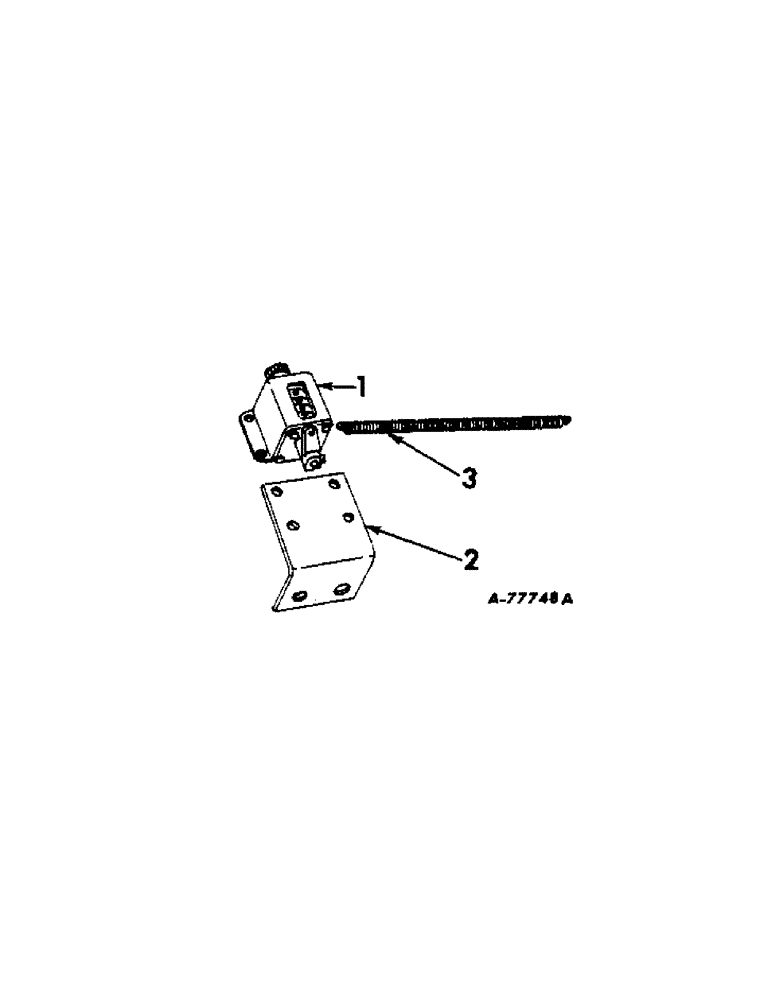

Схема запчастей Case IH 420 - (D-38[A]) - BALE COUNTER ATTACHMENT, WHEN ORDERED
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

495046R92

COUNTER

W/ATTACHING HARDWARE, bale

1шт.

2

662364R1

BRACKET

MOUNT, bale counter

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 znp slt-rd-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

495525R1

SPRING

bale counter

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.
