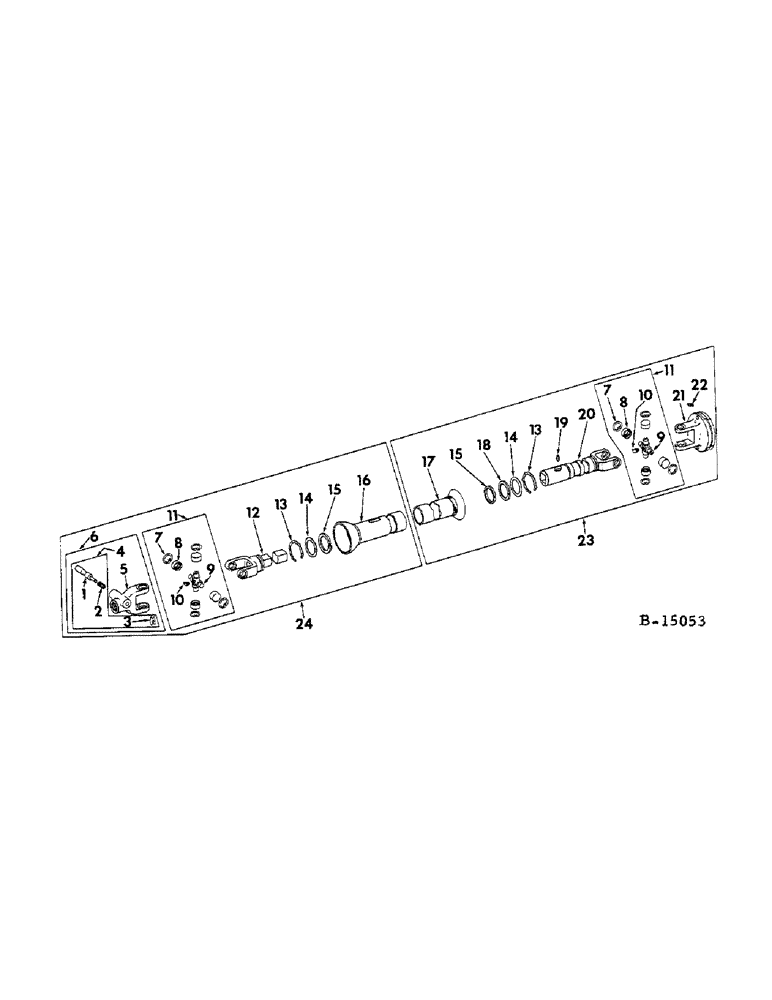

Запчасти Case IH 420 (D-35) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLES, WHEN ORDERED

1

(Not serviced separately)

1шт.

2

455347R1

VALVE SPRING

SPRING, lock pin unit

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X lock

1шт.

4

455346R21

PIN

lock unit

1шт.

5

(Not serviced separately)

1шт.

6

568100R92

YOKE

W/QA PIN

1шт.

7

576420R1

RING

brg retainer snap

8шт.

8

569044R91

BEARING ASSY

ASSY, cross

8шт.

9

(Not serviced separately)

1шт.

10

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27, 65 deg lub

2шт.

11

569047R91

REPAIR KIT

KIT, cross service

2шт.

12

667816R91

YOKE

& SHAFT ASSY, rectangular

1шт.

13

613436R1

CLAMP

RING, snap

2шт.

14

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

15

613439R1

BRACKET

BEARING, nylon support

2шт.

16

668405R91

SHIELD

outer

1шт.

17

670708R1

SHIELD ASSY, inner, 000504 thru 002381

1шт.

17

668404R91

SHIELD

inner, 002382 and up

1шт.

18

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

19

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

20

667817R91

YOKE

ASSY, tube & sleeve

1шт.

21

670707R11

YOKE ASSY, flange, 000504 thru 002381

1шт.

21

663101R91

YOKE

flanged, 002382 and up

1шт.

22

19629R91

FITTING, 1/4-28, 67-1/2 deg self tap.

2шт.

23

670706R91

SHAFT ASSY, main drive rear half, 000504 thru 002381

1шт.

23

668371R91

JOINT

SHAFT ASSY, implement half, 002382 and up

1шт.

24

668370R91

JOINT

SHAFT ASSY, main drive front half

1шт.
