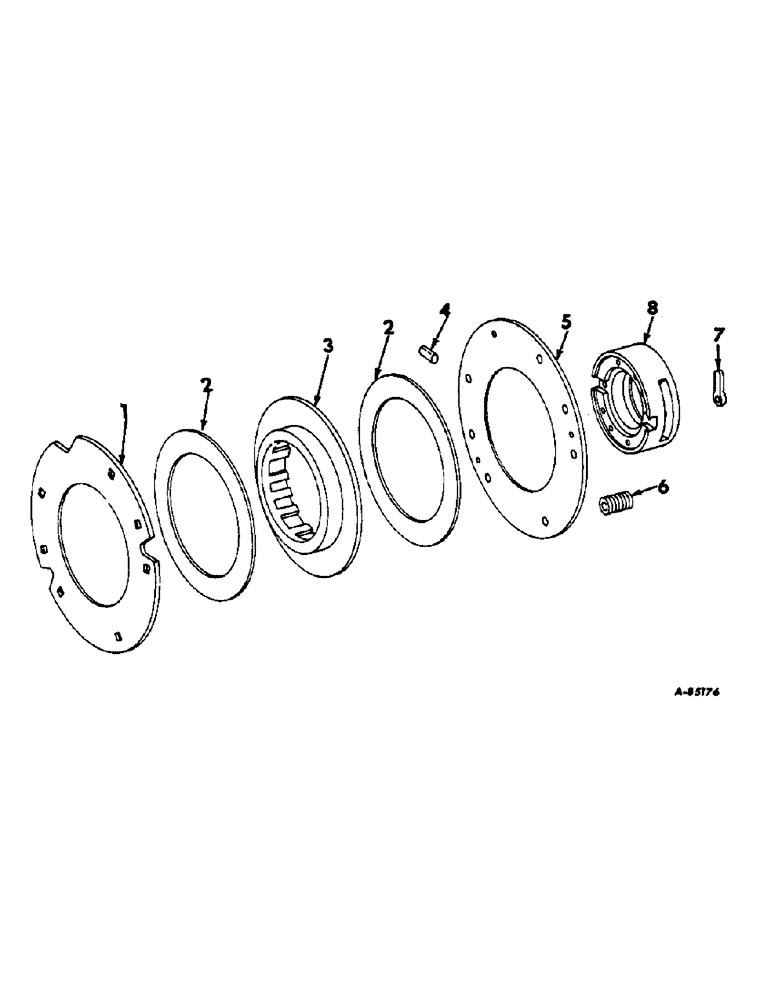

Запчасти Case IH 420 (D-34) - POWER TAKE-OFF DRIVE SHAFT CLUTCH, SERIAL NUMBER 003107 AND UP

1

662270R1

PLATE

clutch pressure

1шт.

2

201744C1

FACING

clutch

2шт.

3

201743C1

DISC

over running clutch

1шт.

4

670687R11

SPACER

ASSY, clutch, set of 7

1шт.

REF#4 - CATALOG ERROR, SET OF SEVEN IS INCORRECT. 8/7/96

1шт.

5

662269R1

PLATE

clutch back

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

M1015

SPRING

clutch

7шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk crg

7шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

7шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

7шт.

7

662241R1

RATCHET

DOG, over-running clutch

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

DOG, over-running clutch

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end C-Z

2шт.

8

201742C1

CARRIER

overrunning dog

1шт.
