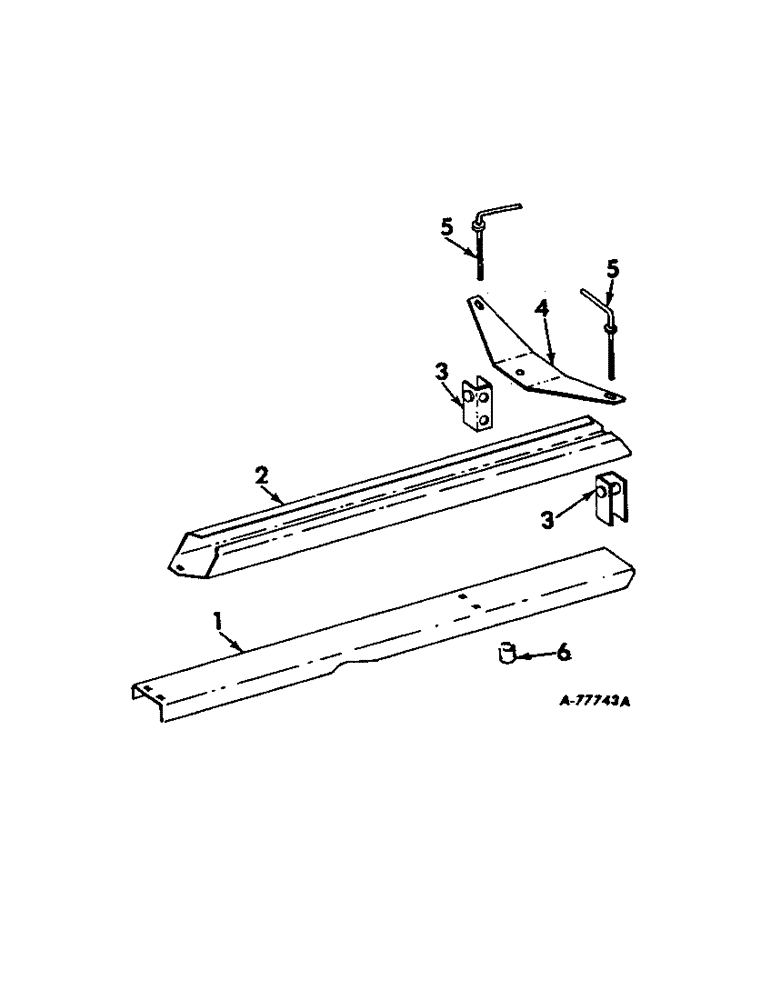

Запчасти Case IH 420 (D-33) - BALE TENSION DEVICE, WHEN ORDERED

1

674024R1

X

CHANNEL ASSY, lower tension

1шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8 x 3-1/2 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

674025R1

X

CHANNEL, upper tension

1шт.

3

671126R91

SUPPORT

ASSY, bale tension

2шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

2шт.

4

670680R1

SPRING

tension channel

1шт.

18700R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2

BOLT, 7/16 x 3 C-Z sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

5

670681R91

SCREW

ASSY, tension adjusting

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

6

23372S

SPACER,1/2" Pipe x 2 9/16"

1/2 x 2-9/16 std pipe

2шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8 x 3-1/2 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
