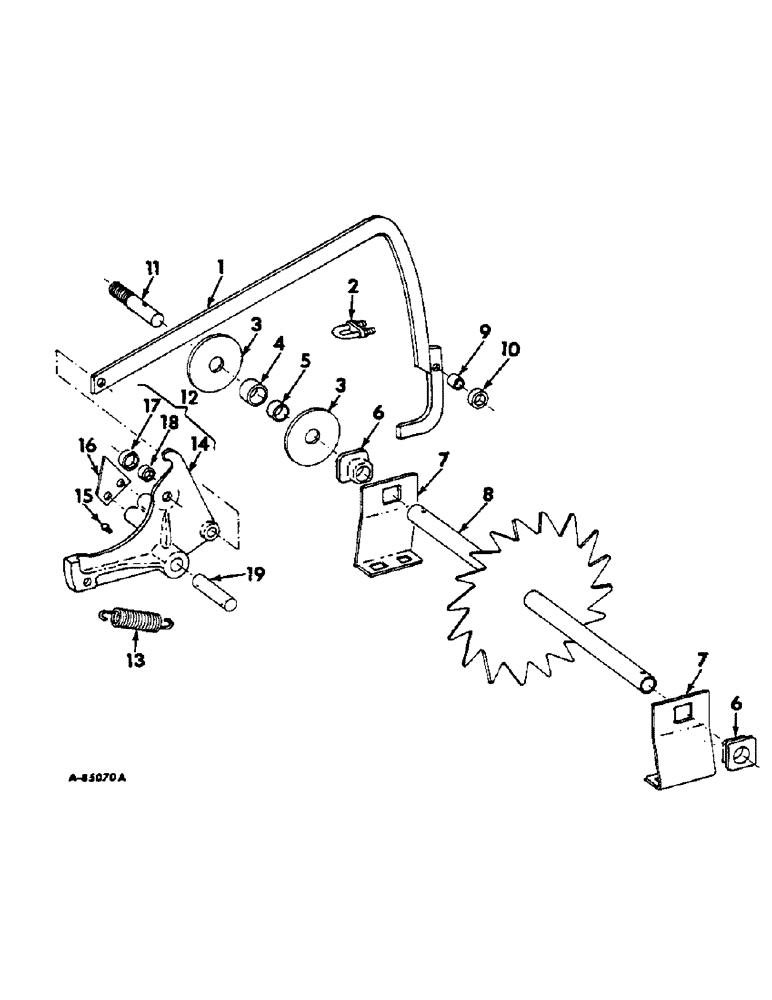

Запчасти Case IH 420 (D-32) - BALE LENGTH CONTROL

1

674019R1

LEVER

ROD ASSY, trip

1шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 znp std-hd

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

667502R91

SUPPORT

CLAMP ASSY, trip rod

1шт.

3

667782R1

SHEAVE

trip rod

2шт.

4

3100851R1

ROLLER,35.05mm OD x 13.49mm L

trip rod

1шт.

5

3100852R1

SPACER,16.94mm ID x 22.23mm OD x 12.7mm L

trip rod roller

1шт.

6

668999R1

BUSHING

meter wheel flanged

2шт.

7

674013R1

BRACKET

meter wheel shaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

8

674014R1

WHEEL (STEERING)

WHEEL ASSY, meter

1шт.

9

674020R1

BUSHING,6.55mm ID x 9.53mm OD x 10.67mm L

trip rod

1шт.

10

674021R1

ROLLER,22.23mm OD x 9.65mm L

trip rod

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

1шт.

11

674017R1

LARGE PIN

STUD, trip rod roller

1шт.

425-110

5/8-18 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z, (or as required)

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

23277R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

12

670671R31

ARM

ASSY, trip

1шт.

13

13985V

SPRING

trip lever return

1шт.

14

(Not serviced separately)

1шт.

15

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tap. str lub

1шт.

16

670674R2

SUPPORT

CAM, trip arm unlocking

1шт.

665447R1

BOLT,Hex, 5/16" - 18 x 3/4", Pellet

5/16 x 3/4 C-Z hex-hd nylock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

17

670673R2

BUSHING

ROLLER, trip arm

1шт.

18377R1

RIVET, 1/2 x 7/8 wagon-box-hd solid

1шт.

18

671614R1

BUSHING

trip arm roller

1шт.

19

663547R1

AXLE PIN

PIN, trip arm pivot

1шт.

657196R1

PIN

1/4 x 2 slt-spring

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z, (or as required)

3шт.

674414R91

PRODUCT GRAPHIC, set

1шт.

2754032R1

PRODUCT GRAPHIC

model Nos., included in product graphic set 674414R91

1шт.

2751130R1

PRODUCT GRAPHIC

International, on sheet above pickup

1шт.

2751271R1

PRODUCT GRAPHIC

International, on twine container back sheet

1шт.

2750502R1

PRODUCT GRAPHIC

IH, bale chamber sides rear

1шт.
