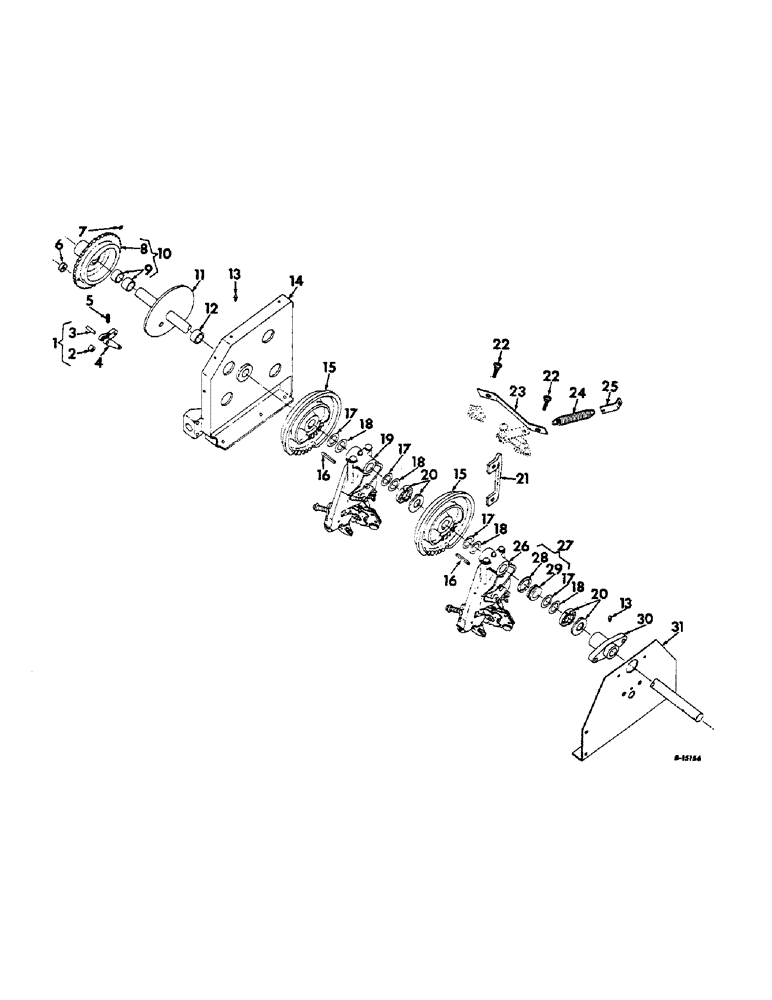

Запчасти Case IH 420 (D-29) - KNOTTER AND RELATED PARTS, SERIAL NUMBER 002663 AND UP

1

670651R11

PAWL

DOG W/ROLLER AND STUD, trip

1шт.

17549R1

BOLT, 7/16 x 2-1/4 hex-hd mach

1шт.

664616R1

NUT, 7/16-14 hex. lock

1шт.

2

V341

PAWL

ROLLER, trip dog

1шт.

3

V690

PIN

STUD, trip dog roller

1шт.

4

DOG, trip, (not serviced separately), order 670651R11

1шт.

5

V680

SPRING

trip dog

1шт.

6

670646R1

ROLLER

trip arm

1шт.

22855R1

PIN, 3/8 x 1-9/16 std-hd znp

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z, (or as required)

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap. lub

1шт.

8

SPROCKET, driven, (not serviced separately order 670654R11

1шт.

9

670659R1

BUSHING

knotter shaft

2шт.

10

670654R11

DRIVE SPROCKET

SPROCKET ASSY, driven

1шт.

11

670647R41

SHAFT

ASSY, knotter

1шт.

12

674779R1

SPACER

knotter support

1шт.

13

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28, 45 deg. self tap.

2шт.

14

674011R1

BRACKET

SUPPORT, knotter R.H.

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z No. 3 plow

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

SCREW, 5/16-18 x 3 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

2шт.

15

670649R3

CAM

knotter

2шт.

17139R1

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

16

670650R1

KEY

3/8 x 2 x 1/4 flat parallel

2шт.

17

316171C1

SHIM

, Serial Range: knotter-cam

8шт.

18

667588R1

DISC

SHIM, knotter to cam, (or as required)

16шт.

19

201646C91

KNOTTER

ASSY, R.H., for components see list of parts under details of knotter

1шт.

20

667813R1

COLLAR CLAMP

COLLAR, knotter shaft adj.

4шт.

443100

STUD

No. 12 x 1/2 rd-hd groove

4шт.

137258

COTTER PIN

3/16" x 1 3/4"

3шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga

6шт.

21

201649C1

CAM

twine knife driving

1шт.

24695R1

SCREW

w/csk-ext tooth lock washer 3/8-16 x 1 znd slt-hd mach

2шт.

22825R1

WASHER

15/32 x 1-1/4 x 7 ga C-Z

2шт.

22

441485R1

BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"

shoulder

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

23

201650C1

BAR

LINK, knife connecting

1шт.

24

202656C1

SPRING

knife return

1шт.

25

201652C2

ANCHOR

knife spring

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

26

201608C91

KNOTTER

ASSY, L.H., for components see list of parts under details of knotter

1шт.

27

202511C91

PAN

RING ASSY, knotter spacer

1шт.

28

125806H1

SNAP RING,#175, Ext

RING, SNAP, #175, Ext

1шт.

29

SPACER, knotter frame, (not serviced separately) order 202511C91

1шт.

30

667818R1

FLANGE

BEARING, knotter L.H.

1шт.

21743R1

WASHER, 1-7/32 x 1-3/4 x 11 ga C-Z, (or as required)

2шт.

31

673350R2

SUPPORT ASSY.

SUPPOORT, knotter brg. L.H.

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z No. 3 plow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

3шт.
