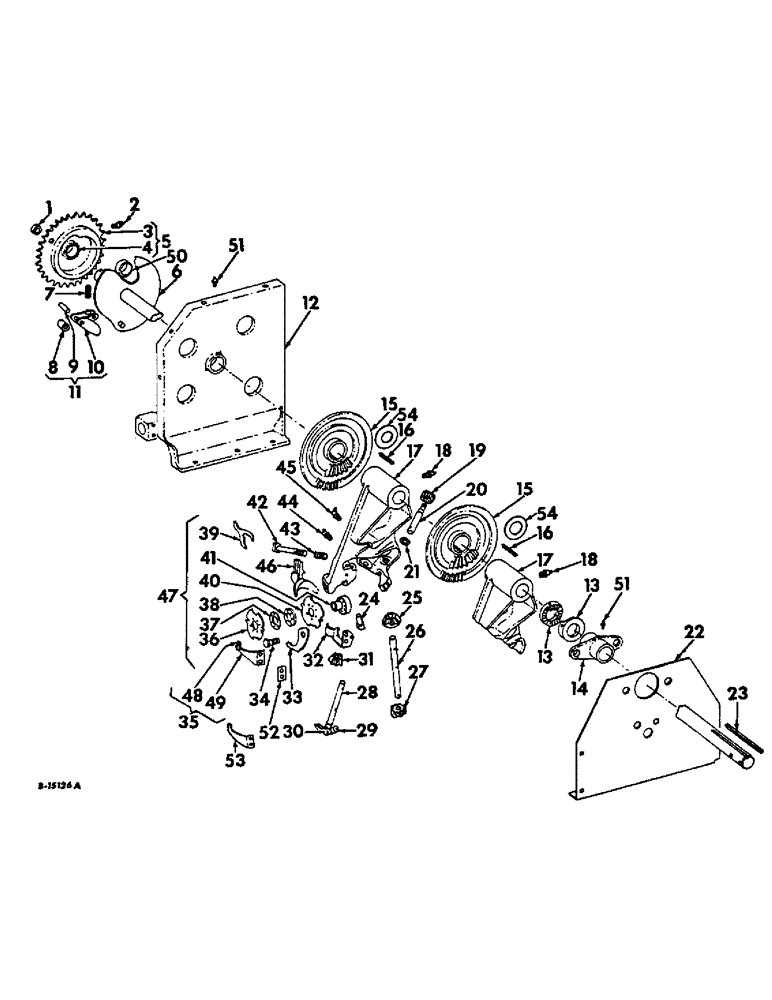

Запчасти Case IH 420 (D-25) - KNOTTER, SERIAL NUMBER 000504 THRU 002662

1

670646R1

ROLLER

trip arm

1шт.

22855R1

PIN, 3/8 x 1-9/16 znp std-hd

1шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z, (or as required)

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap. lub

1шт.

3

(Not serviced separately)

1шт.

4

670659R1

BUSHING

knotter shaft

2шт.

5

670654R11

DRIVE SPROCKET

SPROCKET ASSY, driven 39T

1шт.

6

670647R41

SHAFT

ASSY, knotter

1шт.

607894R1

WASHER

1-7/32 x 1-3/4 x 22 ga C-Z, (or as reqd.)

7шт.

7

V680

SPRING

trip dog

1шт.

8

V341

PAWL

ROLLER, trip dog

1шт.

9

V690

PIN

STUD, trip dog roller

1шт.

17549R1

BOLT, 7/16 x 2-1/4 hex-hd mach

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

10

(Not serviced separately)

1шт.

11

670651R11

PAWL

DOG W/ROLLER & STUD, trip

1шт.

12

674011R1

BRACKET

SUPPORT, knotter RH

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd No. 3 plow

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

SCREW, 5/16-18 x 3 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

2шт.

13

667813R1

COLLAR CLAMP

COLLAR, knotter shaft adj

4шт.

443100

STUD

No. 12 x 1/2 d-hd groove drive

4шт.

137258

COTTER PIN

3/16" x 1 3/4"

3шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z

6шт.

14

667818R1

FLANGE

BEARING, knotter LH

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21743R1

WASHER, 1-7/32 x 1-3/4 x 11 ga C-Z, (or as required)

2шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z, (or as required)

6шт.

15

670649R3

CAM

knotter

2шт.

16

670650R1

KEY

308 x 2 x 1/4 flat parallel

2шт.

17139R1

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

17

666510R92

KNOTTER ASSY.

KNOTTER ASSY

2шт.

17

495965R94

KNOTTER ASSY.

FRAME W/WEARING PIECE, knotter

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF str self-tapping lub

6шт.

19

668416R1

GEAR

helical driven cord holder

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 C-Z hex. jam

2шт.

20

668415R1

SPINDLE

cord holder

2шт.

21

667239R1

DISC

SHIM, knotter hook shaft and cord holder spindle, (or as required)

10шт.

22

673350R2

SUPPORT ASSY.

SUPPORT, knotter brg LH

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd No. 3 plow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

23

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

24

V618H

SPACER

PIECE, knotter frame wearing

2шт.

117898

PIN

5/32 x 1-1/16 str

2шт.

25

495192R3

GEAR

PINION, cord holder drive bevel

2шт.

26

495433R1

SHAFT HOUSING

SHAFT, cord holder drive

2шт.

Q5066

PIN

6 ga x 31/32 str

4шт.

27

495425R1

GEAR

PINION, cord holder helical

2шт.

28

666511R92

TWISTER

HOOK ASSY, knotter

2шт.

29

666517R92

HOOK

JAW ASSY, knotter

2шт.

30

666515R1

PIN

knotter jaw

2шт.

21797R1

WASHER

19/32 x 15/16 x 24 ga C-Z

2шт.

31

495197R3

GEAR

PINION, Bill Hook

2шт.

Q3854

PIN

6 ga x 27/32 str

2шт.

32

667408R1

SPRING

twine end retainer

2шт.

33

495474R3

SHIM

BLADE, cord holder keeper

2шт.

34

495432R1

SCREW

STUD, cord holder keeper pivot

2шт.

35

668961R21

KNIFE

ASSY, twine, optional w/495463R4

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

495462R3

DISC

DISK, cord holder

2шт.

37

495504R1

SHIM

cord holder .005, (or as required)

6шт.

37

667238R1

SHIM

cord holder .003 (or as required)

4шт.

37

667547R1

SHIM, cord holder .005 plastic

4шт.

133567

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

12шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

38

668967R1

RETAINER

SPACER, cord holder

2шт.

39

495475R3

HALF BLADE

CLEANER, cord holder

2шт.

40

672524R2

DISC

DISK AND HUB, cord holder

2шт.

41

668965R1

HUB

cord holder

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

42

667533R1

BOLT,3/8" - 16 x 2 7/8"

3/8-16 x 2-7/8 special knotter jaw cam bolt

2шт.

472144R1

NUT

3/8-16 znp hex. lock

2шт.

496668R1

WASHER, 13/32 x 3/4 x 16 ga C-Z

4шт.

43

U13033

SPRING

knotter closing cam

2шт.

44

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

45

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 PTF 45 deg angle self tapping lub

4шт.

46

667563R1

CAM

knotter jaw closing

2шт.

47

495619R95

DISC

DISK AND CLEANER ASSY, cord holder

2шт.

48

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife

2шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8/32 x 3/16 C-Z pan-hd slt mach

2шт.

49

(Not serviced separately)

1шт.

50

674779R1

SPACER

RH knotter support

1шт.

51

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap lub

2шт.

52

200425C1

SPACER

twine knife, (or as required)

6шт.

53

495463R4

KNIFE

twine, optional w/668961R21

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

54

667588R1

DISC

SHIM, knotter to cam fit up, (or as required)

22шт.
