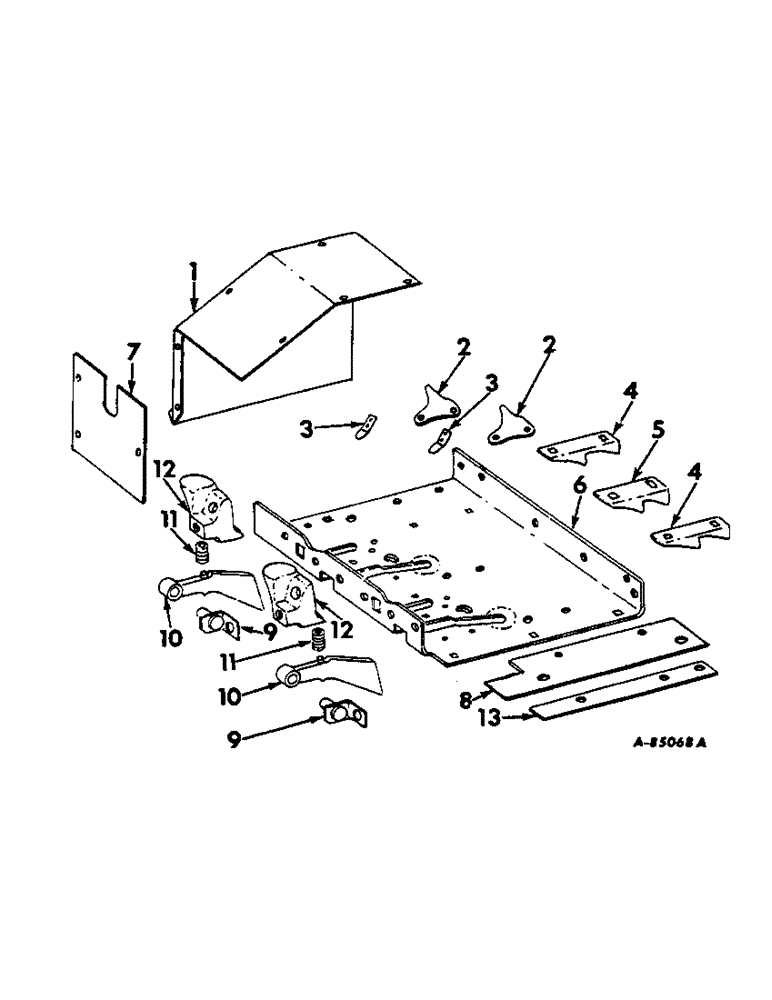

Запчасти Case IH 420 (D-24) - KNOTTER CHAIN SHIELD AND BREAST PLATE

1

674007R1

GUARD ASSY.

SHIELD ASSY, knotter

1шт.

2

495412R71

NO LONGER SERVICED

FINGER W/RIVETS, breast plate

2шт.

216380

RIVET

1/4 x 7/8 C-Z small csk-hd solid

4шт.

123821

RIVET

1/4 x 5/8 C-Z small csk-hd solid

4шт.

3

662112R1

SPRING

twine retainer

2шт.

112620

RIVET

1/4 x 7/16 small csk-hd small

4шт.

21736R1

BOLT, 3/8 x 3/4 C-Z No. 3 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

495929R2

WEDGE

hay retainer narrow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

5

495930R1

WEDGE

hay retainer wide

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

670632R11

STRIPPER

PLATE ASSY, breast

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18821R1

BOLT

5/8 x 1-1/2 znd hex-hd mach

1шт.

425-1110

NUT,5/8"-18, G5

5/8-18 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

674010R1

FENDER

SHEET, knotter shield front

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

144811

SCREW,Sl Rnd Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z slt-rd-hd tap

4шт.

8

200414C1

FILLER, breast plate LH, 000504 thru 003106

1шт.

216380

RIVET

1/4 x 7/8 C-Z small csk-hd solid

4шт.

9

670633R91

SUPPORT

BRACKET ASSY, hay retainer

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znp hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

670636R1

RETAINER

hay top

2шт.

11

668869R1

SPRING

hay retainer

2шт.

12

662009R3

ANCHOR

knotter

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z No. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

134489

HUB

WASHER, 3/8 C-Z ext-tooth lock

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 16 ga C-Z

2шт.

13

202584C1

LARGE PLATE

FILLER, breast plate LH, 003107 and up

1шт.

216380

RIVET

1/4 x 7/8 C-Z small csk-hd solid

4шт.
