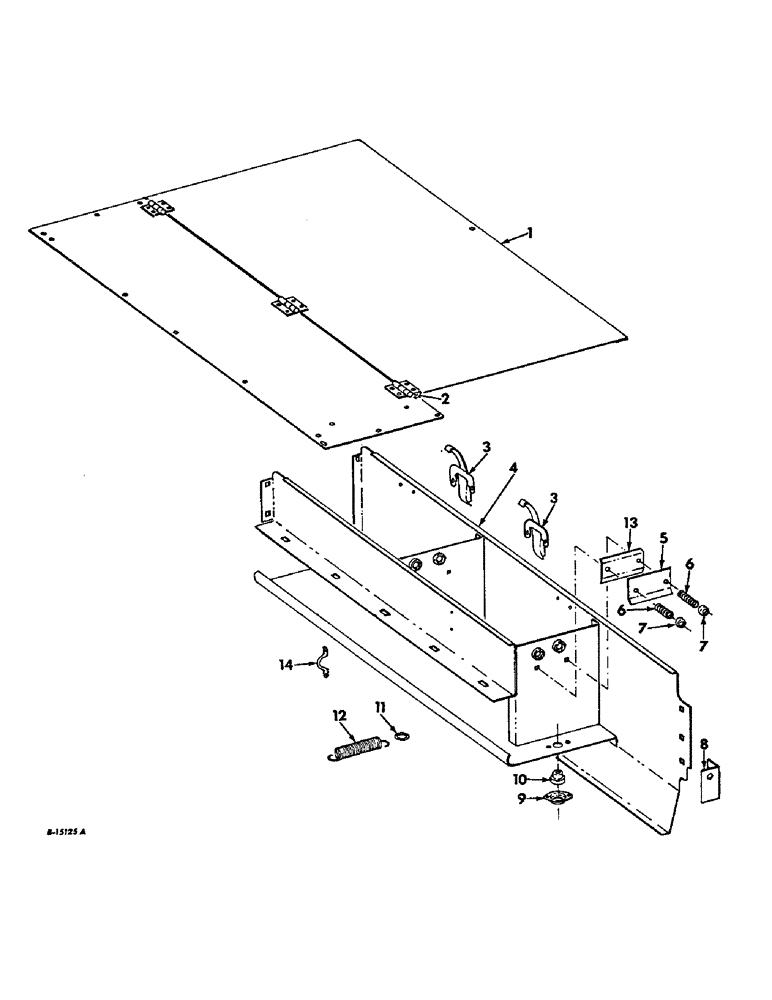

Запчасти Case IH 420 (D-22) - TWINE CHEST

1

670627R91

DOOR

ASSY, twine chest

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120376

NUT,5/16"-18, G5

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

2

670628R1

HINGE

twine chest door

3шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

12шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 11 ga C-Z

12шт.

3

669184R1

CLAMP

twine chest door

2шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/48 C-Z slt-pan-hd mach

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

673407R1

CHEST ASSY, twine

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z med lock

12шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

673760R1

PLATE

twine tension outside

1шт.

6

269920R2

SPRING

twine tension roller

2шт.

7

B32120

WASHER

twine roller spring cup

2шт.

495058R2

BOLT,Carriage, 1/4" - 20 x 3"

1/4 x 3 znd sq-nk crg

2шт.

126177

WING NUT

NUT, 1/4-20 znd wing

2шт.

8

670622R2

ANGLE, twine chest

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

352133R1

PLATE

twine guide mounting

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

670617R2

GUIDE

twine

1шт.

11

670621R1

RING

slack arm

2шт.

12

457094R1

SPRING

slack arm

2шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

13

662380R1

GUIDE

PLATE, twine tension

1шт.

14

655108R2

GUIDE

twine

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/8 znd slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
