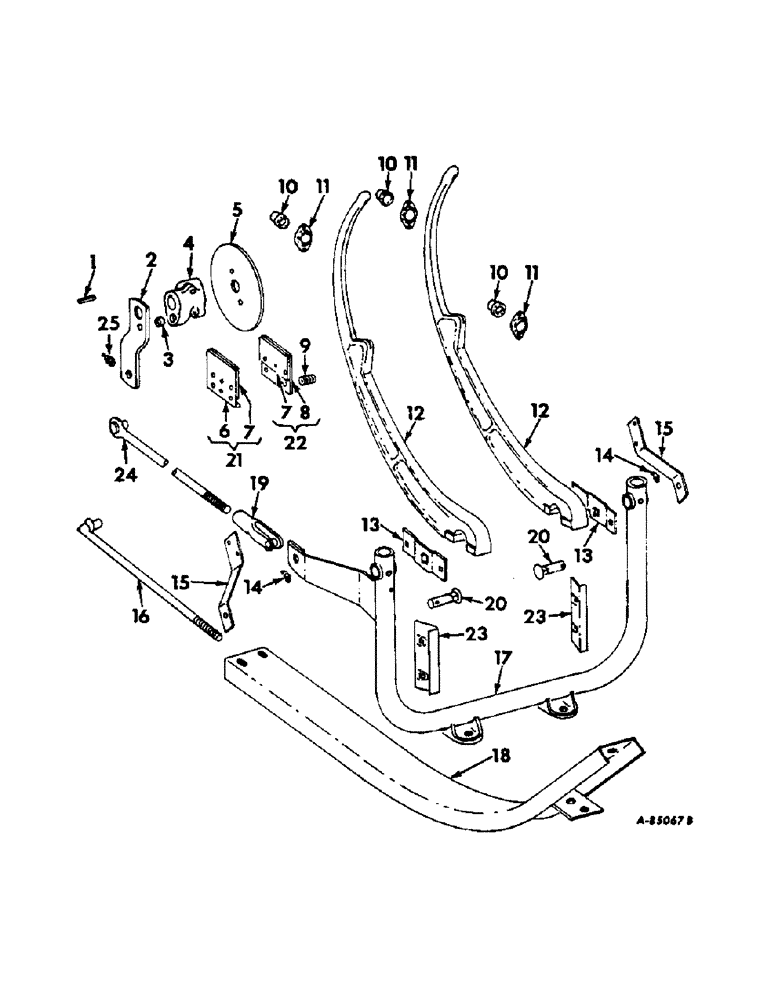

Запчасти Case IH 420 (D-20) - NEEDLES, DRIVE AND GUARD

1

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq-parallel

1шт.

2

201670C1

DRAWBAR

CRANK, needle drive, 001871 and up

1шт.

2

662283R1

CRANK

needle drive, 001870 and below

1шт.

3

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

202710C91

HUB

needle drive crank, includes 662555R1 bushing

1шт.

443056

PIN,3/8" x 2", Type F

Grooved, 3/8" x 2", Type F

1шт.

5

662153R1

PLATE

knotter brake pressure

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

SHOE, knotter shaft brake LH, (not serviced separately), order 754777R91

1шт.

7

LINING, knotter shaft brake, (not serviced separately), order 754777R91 or 754778R91

2шт.

8

SHOE, knotter shaft brake RH, (not serviced separately), order 754778R91

1шт.

9

U13033

SPRING

knotter brake

2шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER , 11/32 x 11/16 x .065 C-Z

2шт.

10

670617R2

GUIDE

twine

3шт.

11

352133R1

PLATE

twine guide mounting

3шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

6шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

12

673306R3

NEEDLE BEARING CAGE

NEEDLE, twine, 00504 thru 002381

2шт.

12

200588C5

NEEDLE

twine, 002382 and up

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

455150R1

WASHER

17/32 x 1-1/4 x 1/4 C-Z

4шт.

13

673303R2

SUPPORT

PIVOT, needle tie pipe, if 673303R1 is required order 673303R2 and 201579C1

2шт.

14

1127743

WINDOW

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

615041R1

WASHER

13/32 x 7/8 x 14 ga C-Z

2шт.

15

673305R1

SUPPORT

STRAP, needle pivot support

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

662282R1

PITMAN

needle

1шт.

121358

YOKE

5/8-18 C-Z hex.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, , Rod end 5/8" x 1.844"

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

17

673299R2

TUBE,21.56" Length

PIPE ASSY, needle tie, 000504 thru 002381

1шт.

17

201095C2

PIPE

ASSY, needle tie, 002382 and up

1шт.

18

674004R1

BRACKET

GUARD ASSY, needle

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

PIN, 3/16 x 2-1/4 znp cot.

1шт.

469668R1

WASHER

13/32 x 3/4, 16 ga C-Z

2шт.

19

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 adj rod end

1шт.

20

201579C1

AXLE PIN

PIN, needle tie pipe pivot

2шт.

21

754777R91

SHOE

ASSY, knotter shaft brake LH

1шт.

22

754778R91

SHOE

ASSY, knotter shaft brake RH

1шт.

180044

SPRING

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

23

674099R1

WEDGE

hay

2шт.

22833R1

BOLT, 7/16 x 7/8 znd sq-nk crg

4шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z, (or as required)

8шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

24

201667C91

PITMAN

W/PIN, needle, 001871 and up

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub, 001871 and up

1шт.
