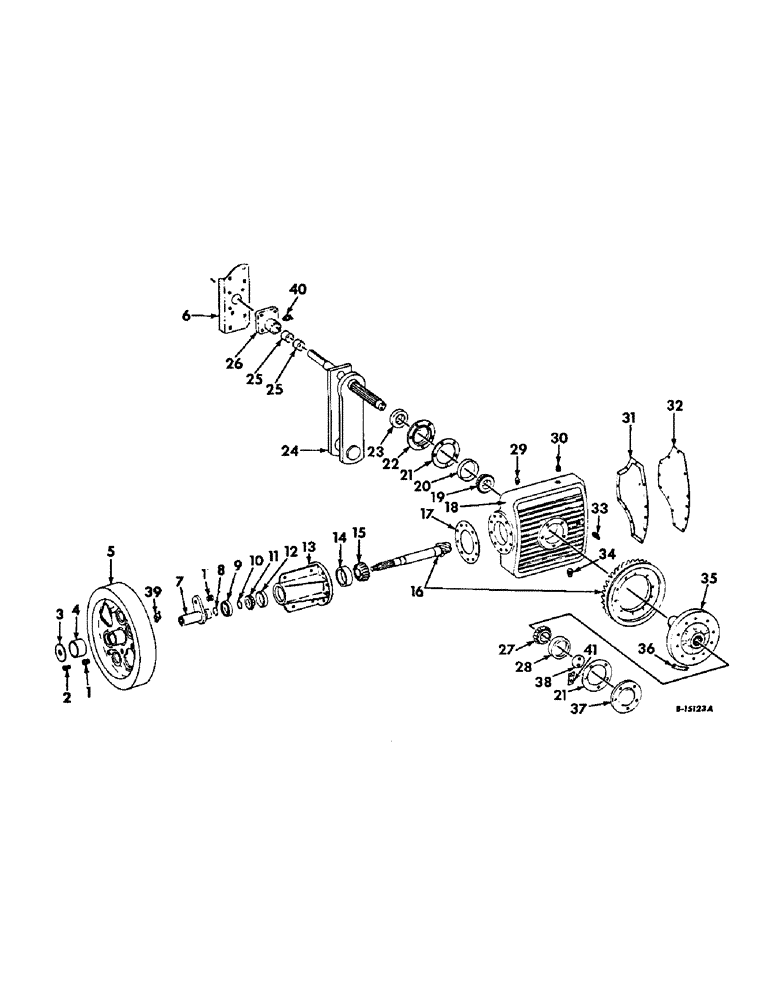

Запчасти Case IH 420 (D-16) - MAIN DRIVE

1

662122R1

SHEAR BOLT BUSHING,Hex, 3/4" - 16 x 1/2"

BUSHING, flywheel shear bolt, 000504 thru 002381

2шт.

1

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt, 002382 and up

1шт.

2

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

5/16-24 x 2 C-Z hex-hd cap shear bolt

7шт.

120368

NUT,5/16"-24, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

670572R91

WASHER ASSY, flywheel thrust, 000504 thru 002381

1шт.

3

670573R1

WASHER, flywheel thrust, 002382 thru 003106

1шт.

3

202973C1

WASHER, flywheel thrust, 003107 thru 003405

1шт.

3

662103R1

THRUST WASHER

flywheel thrust, 003406 and up

1шт.

4

662120R1

BUSHING

flywheel outer, 000504 thru 002381

1шт.

4

201741C1

FLYWHEEL

BUSHING, flywheel, 002382 and up

1шт.

5

667700R21

FLYWHEEL

W/BUSHINGS

1шт.

6

670571R1

SUPPORT ASSY.

SUPPORT, plunger crank brg RH

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

202483C91

HUB

ASSY, flywheel service pkg., consists of (1) hub assy, flywheel 667633R22 (NSS), (1) bushing 662555R1, (2) shim .005, 667605R1, (2) shim .007, 667606R1, (1) o-ring 310931R1

1шт.

8

310931R1

O-RING

RING, flywheel hub O

1шт.

9

380768R91

OIL SEAL

pinion shaft front oil

1шт.

10

667605R1

SHIM

brg preload .005 (or as required)

3шт.

10

667606R1

SHIM

brg preload .007 (or as required)

2шт.

10

667607R1

SHIM

brg preload .020 (or as required)

1шт.

11

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, pinion shaft front cone, replaces 62923R91

1шт.

12

ST987

BEARING CUP

BEARING, pinion shaft front cup, replaces 130503H

1шт.

13

667601R1

CASE

main drive rear front

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

14

107577R1

BEARING, CUP

BEARING, pinion shaft rear cup

1шт.

15

662062R91

ROLLER BEARING

ASSY, pinion shaft rear cone

1шт.

16

662050R11

STRIPPER PACKAGE

GEAR ASSY, ring and pinion

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt hex., 000504 thru 002381

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14 znd slt thick hex., 002382 and up

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

17

662088R1

SHIM

main drive gear case .020, (or as required)

2шт.

17

662089R1

SHIM

main drive gear case .007, (or as required)

2шт.

17

662090R1

SHIM

main drive gear case .005, (or as required)

3шт.

18

667600R2

CASE

main drive gear rear

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21067R1

SCREW, 3/4-10 x 2-1/2 hex-hd nylock cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

19

ST2083

BEARING ASSY

main drive gear RH

1шт.

20

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

main drive gear cup

1шт.

21

662091R1

SHIM

main drive bevel gear .005, (or as required)

8шт.

21

662093R1

SHIM

main drive bevel gear .007, (or as required)

4шт.

21

662092R1

SHIM

main drive bevel gear .020, (or as required)

2шт.

22

662017R1

COVER

main drive bevel gear brg

1шт.

181420R1

SCREW,Hex, 3/8" - 16 x 1", w/ Nylon Pellet

3/8-16 x 1 C-Z hex-hd nylock cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

23

662066R91

OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk

plunger crank oil RH

1шт.

24

667632R92

CRANKSHAFT

ASSY, plunger

1шт.

25

670570R1

BUSHING

plunger crank RH

2шт.

26

670569R11

BUSHING

BEARING W/BUSHING, plunger crank RH

1шт.

27

971528R91

BEARING

ASSY, main drive gear cone

1шт.

28

13363D

TAPERED BEARING

BEARING, main drive gear cup, replaces 22396V

1шт.

29

152127H1

BREATHER,1/8"-27, Short

VENT ASSY, main drive gear box, replaces 663002R91

1шт.

30

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1-11-1/2 automotive sq-soc pipe

1шт.

31

667603R1

GASKET

main drive gear box cover

1шт.

32

667602R11

COVER

ASSY, main drive gear case rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

33

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 automotive sq-hd pipe

1шт.

34

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

35

670568R1

HUB

main bevel gear

1шт.

181701

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5

SCREW, 1/2-20 x 1-5/8 C-Z hex-hd cap

10шт.

36

261622R1

PLATE, LOCKING

LOCKPLATE, main drive gear hub cap screw

5шт.

37

667604R1

CAP

main drive bevel gear

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

38

200525C1

WASHER

plunger crankshaft thrust

1шт.

15507H

SCREW,Hex, 5/16" - 24 x 1"

3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

39

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tapping lub

1шт.

40

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 self tapping 45 deg angle lub

1шт.

41

201580C1

PLATE

TAB, bolt holder

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
