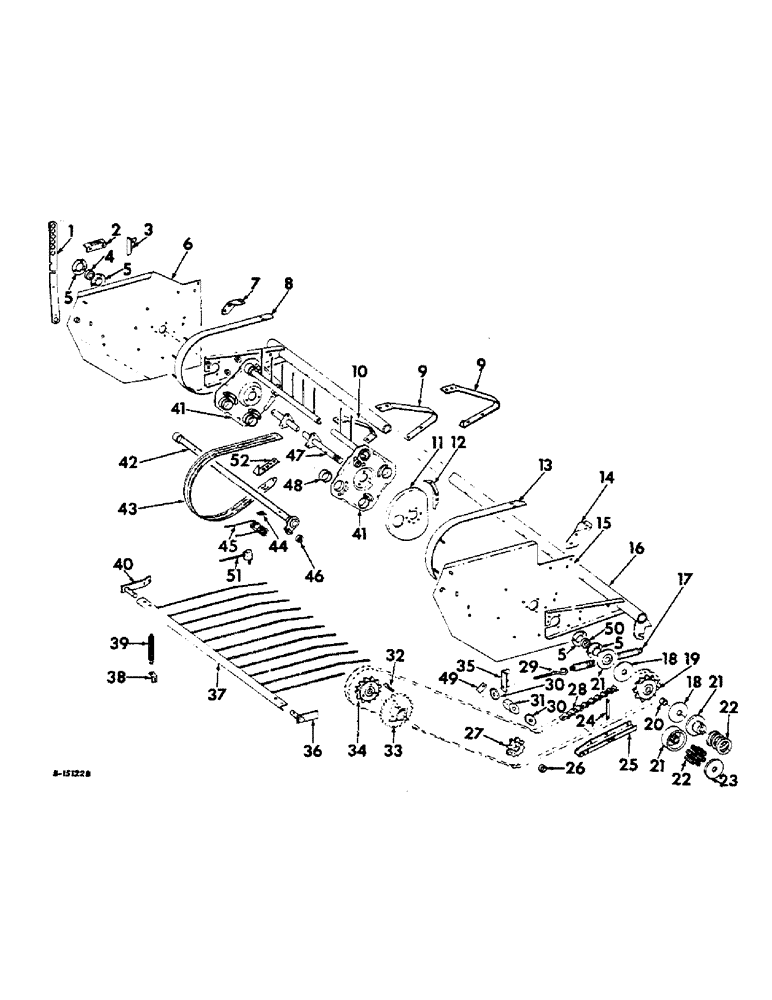

Запчасти Case IH 420 (D-11) - PICKUP CYLINDER AND DRIVE

1

670565R1

STRAP, pickup latch

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

19574R1

BOLT, 3/8 x 5/8 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

670556R1

BRACKET, pickup latch

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

670567R1

SUPPORT

LOCK, pickup latch

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

4

671681R91

BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cyl, on RH side of pickup

1шт.

5

671682R1

NO LONGER SERVICED

FLANGE, pickup cyl brg

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

3шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

20529R1

PIN,7/32" x 1 1/2", Slotted

1шт.

6

670535R2

SHEET, pickup end RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

7

670540R1

ANGLE, stripper support RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

670534R11

STRIPPER

ASSY, end RH

1шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

9

670537R2

HOLDER

SUPPORT, pickup stripper

11шт.

9

201745C1

SUPPORT, pickup stripper, special, used w/rubber pickup tines 1970 and up

11шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 C-Z hex-hd

11шт.

120377

NUT,3/8" - 16, Gr 5

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

10

670538R2

BRACE, pickup stripper

11шт.

11

662317R2

CAM

pickup tooth control

1шт.

12

662318R11

GUIDE

ASSY, tooth bar roller

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

670533R11

STRIPPER ASSY, end LH

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

14

670539R1

ANGLE

stripper support LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

670532R2

SHEET, pickup end LH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

4шт.

16

670527R91

FUNNEL

FRAME ASSY, pickup

1шт.

17

MA731

SPRING

pickup balance

1шт.

18

662291R1

LINING

pickup drive clutch

2шт.

19

662023R1

DRIVE SPROCKET

SPROCKET, pickup slip clutch

1шт.

20

662079R1

BUSHING

pickup slip clutch sprocket

1шт.

21

662026R4

HUB

pickup slip clutch, 000504 thru 002781

2шт.

21

202399C1

HUB

pickup slip clutch, 002782 and up

2шт.

22

U13661

VALVE SPRING

SPRING, compression, 000504 thru 002781

1шт.

22

M1015

SPRING

pickup slip clutch, 002782 and up

6шт.

23

202090C1

WASHER

slip clutch retainer

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 C-Z hex. jam

1шт.

24

673799R1

HOLDER

BRACKET, front shield

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

673798R1

CHANNEL, idler bracket

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

21793R1

WASHER

21/32 x 1-1/4 x 7 ga C-Z

3шт.

27

673797R91

DRIVE SPROCKET

SPROCKET ASSY, idler pickup drive

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 znd hex-hd mach

1шт.

121358

YOKE

5/8-18 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

28

CHAIN, pickup drive, use 55 links of No. 55 chain

1шт.

29

670541R1

SPINDLE

BOLT, pickup balance spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

30

673666R1

CAP

block tightener end

2шт.

31

668147R1

BLOCK

TIGHTENER, block

1шт.

32

Q3950

KEY,Gib, 3/8" Sq x 2 1/4"

3/8 x 2-1/4 sq tapered

1шт.

33

SPROCKET DRIVE KNOTTER, 39T, see knotter drive chain and idlers

1шт.

34

670564R1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z No. 3 plow

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

35

670542R1

ANCHOR

balance spring

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

36

670543R91

LARGE PIN

ARM ASSY, pickup tension LH

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 znp hex-hd cap

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znp hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

37

670548R91

SPARE PART

TINE ASSY, pickup cover

1шт.

38

662387R1

ANCHOR

CLIP, spring anchor

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 znp hex-hd cap

2шт.

271501

SOCKET

NUT, 7/16-14 znp hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

39

PO91

SPRING

pickup cover

1шт.

40

670546R91

ARM

ASSY, pickup cover tension RH

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

41

670724R11

SUPPORT

END W/BUSHINGS, pickup cyl

2шт.

42

495279R94

CARRIER

BAR ASSY, pickup tooth

4шт.

43

670536R2

STRIPPER, pickup

11шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z sq-nk crg

22шт.

120376

NUT,5/16"-18, G5

22шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

22шт.

120376

NUT,5/16"-18, G5

22шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

22шт.

44

27513K

CUP WASHER

WASHER, pickup cyl spring tooth

24шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

45

MA74528

SPRING

pickup tooth

24шт.

46

ST543

BALL BEARING,15mm ID x 35mm OD x 11mm W

BEARING ASSY, pickup cyl tine control

4шт.

21787R1

WASHER

2-1/16 x 2-15/16 x 16 ga C-Z (or as required)

16шт.

137273

COTTER PIN

PIN, 3/16 x 2-1/2 znp cot.

4шт.

47

670551R92

DRIVE

SHAFT ASSY, pickup cyl

1шт.

48

659437R1

BUSHING

pickup cyl end

8шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

49

670562R1

RETAINER

pickup drive chain

1шт.

20181R1

BOLT, 1/2 x 3-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

50

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cyl drive side, on LH side of pickup

1шт.

51

200499C1

FINGER

TINE, rubber pickup, special

48шт.

120376

NUT,5/16"-18, G5

48шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

48шт.

52

201700C1

DEFLECTOR, tine, special, used w/rubber pickup tines, thru 1969

11шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

11шт.
