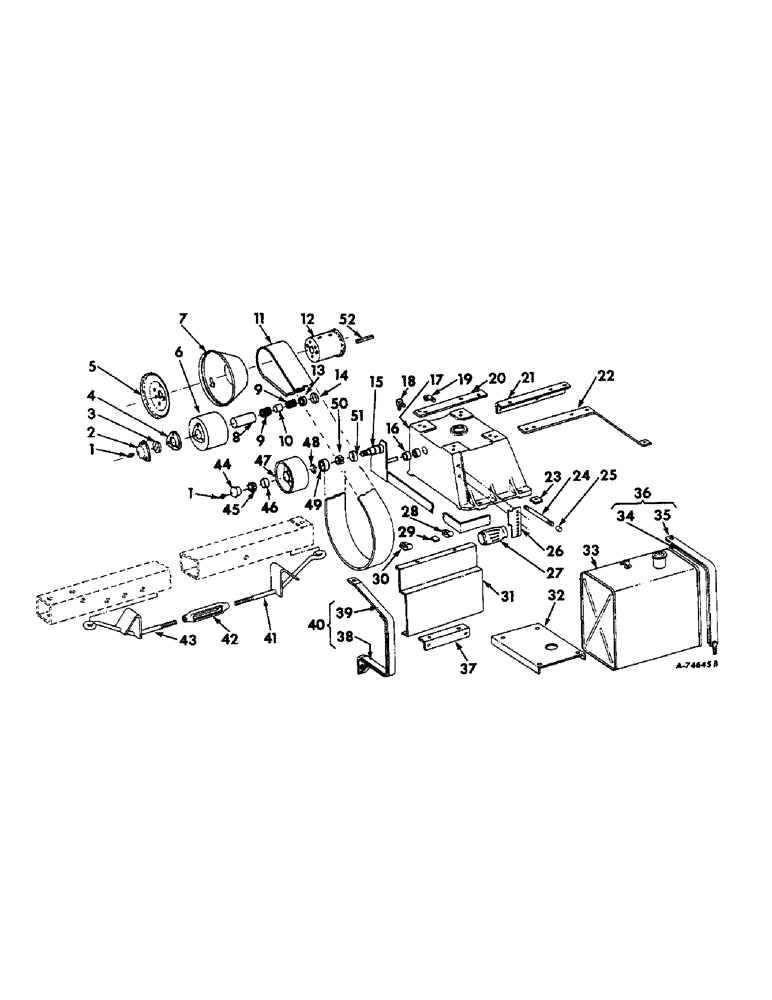

Запчасти Case IH 37 (B-52) - WISCONSIN ENGINE ATTACHMENT, ENGINE AND ENGINE MOUNTING

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

1шт.

2

659489R1

CAP, pulley hub, 1963

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

659514R1

WASHER, idler pulley thrust, 1963

1шт.

659517R1

BOLT, 1/4 x 3/4 dld mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

659494R1

GASKET, pulley hub cap, 1963

1шт.

5

668110R1

RETAINER, belt, unit E

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, cap, 3/8 x 7/8 cd pltd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga. C-Z

3шт.

6

659490R1

PULLEY, engine idler, 1963

1шт.

7

661249R1

WHEEL, crank

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

8

451894R1

RACE, idler bearing, 1963

1шт.

9

511752R91

BEARING, ROLLER

BEARING, idler pulley, 1963

2шт.

10

659506R1

SPACER

idler pulley brg, 1963

1шт.

11

662339R1

BELT,3.50" W x 97.75" L

Engine drive 3.50" W x 97.75" L

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

11

668111R1

BELT,3.50" W

Drive 3.50" W

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

12

662053R11

PULLEY W/SET SCREWS, engine

1шт.

668506R1

SCREW, 3/8-16 x 3/4 hex. soc-hd cup pt nylock set

2шт.

615237R1

WASHER

1-1/16 x 2 x 16 ga

1шт.

14

659493R1

CUP, idler retainer, 1963

1шт.

15

668946R91

BRACKET, engine idler, cpt.

1шт.

615193R1

WASHER

29/32 x 1-3/8 x 16 ga. (or as req.)

1шт.

Q1557

WASHER

29/32 x 1-3/8 x 10 ga.

3шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

667942R1

BUSHING, engine idler support

2шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, cap, 7/16 x 2 cd pltd

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, hex, Mac Lean-Fogg, 7/16

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga.

2шт.

17

663935R21

SUPPORT W/BUSHINGS, engine

1шт.

18

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

tube, for fuel line 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

19

86534426

PIPE FITTING

1/8 street, for fuel line

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

20

668105R1

ADAPTER, engine base right

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 cd-pltd hex-hd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

668034R2

ANGLE, bale chamber reinforcement

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 cd-pltd hex-hd mach

4шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 cd-pltd hex-hd mach

2шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

22

668104R1

ADAPTER, engine base left

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 cd-pltd hex-hd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 cd-pltd hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

662338R1

SPACER

engine base

2шт.

24

12989R1

NIPPLE, 3/8 x 7-1/2, for oil drain Nipple, 3/8" NPT x 7 1/2"

1шт.

25

110675

CAP,3/8" NPT

oil drain nipple

1шт.

26

659495R1

STOP, engine idler lever

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 1 cd pltd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

666930R1

GRIP, idler lever

1шт.

28

27385D

CLIP, loom, for 3/8 bolt on fuel line

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

29

52728D

CUSHION, fuel line felt

2шт.

30

27386D

CLIP, loom, for 1/2 bolt on fuel line

1шт.

31

667968R1

SPACER, fuel tank

1шт.

32

668410R1

SUPPORT, fuel tank

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

33

668690R91

TANK W/CAP, fuel

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

34

WEBBING, fuel tank strap, use 22 inches of 1-1/4 webbing from roll marked, 990539R1

1шт.

34

WEBBING, fuel tank strap, use 22 inches of 1-1/4 webbing from roll marked, 990539R1

2шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

35

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 668112R91

1шт.

36

668112R91

STRAP, fuel tank

1шт.

36

668112R91

STRAP, fuel tank

2шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

37

667969R1

SUPPORT, fuel tank

1шт.

38

WEBBING, fuel tank strap, use 19-3/8 in. of 1-1/4 webbing from roll marked, 990539R1

2шт.

39

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 667970R91

1шт.

40

667970R91

STRAP, fuel tank, cpt.

2шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

19417R1

BOLT

cge. 3/8 x 1 cd pltd

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

mach, 3/8 x 2-3/4 cd pltd

2шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 cd. pl.

2шт.

120376

NUT,5/16"-18, G5

2шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga. cd

2шт.

41

668107R11

ROD, hitch truss right, 1963 thru 1967

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 cd pltd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd pltd hex

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga cd

1шт.

42

14592D

TURNBUCKLE, truss rod, 1963 thru 1967

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

220081

NUT

3/4-10 hex

1шт.

43

668106R11

ROD, hitch truss left, 1963 thru 1967

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 cd-pltd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd-pltd hex

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga.

1шт.

44

589951R1

PLUG

CAP, hub pulley, 1964 up

1шт.

45

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, idler pulley outer cone, 1964 up

1шт.

45

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

46

651814R1

BEARING CUP

BEARING, idler pulley outer cup, 1964 up

1шт.

47

564407R1

PULLEY, engine idler, 1964 up

1шт.

48

564405R1

RING, SNAP

RING, idler pulley snap, 1964 up

1шт.

49

651817R1

BEARING CUP

BEARING, idler pulley inner cup, 1964 up

1шт.

49

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

50

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, idler pulley inner cone, 1964 up

1шт.

51

564403R91

SEAL

engine idler pulley oil, 1964 up

1шт.

52

657205R1

KEY, sq. 3/8 x 3-1/4 3/8" Sq x 3 1/4", Par

1шт.

1001721R1

DECAL, arrow, on crank wheel

1шт.

For Wisconsin engine drive package, 430T 012280 and below, 430W 001778 and below, w/4-cylinder self-contained electrical system engine for 37 and 47 balers, when ordered.

1шт.

662982R91

WISCONSIN ENGINE, manual starter

1шт.

For service parts for the Wisconsin engine, fuel lines & fuel tank, see your nearest Wisconsin engine dealer or the Wisconsin engine dealer or the Wisconsin Motor Corp., Milwaukee 46, Wisconsin.

1шт.

For Wisconsin engine drive package w/hand crank engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/hand crank engine for 37 baler, when ordered.

1шт.

662983R91

WISCONSIN ENGINE, self contained electric unit

1шт.

For service parts for the Wisconsin engine, fuel lines & fuel tank, see your nearest Wisconsin engine dealer or the Wisconsin engine dealer or the Wisconsin Motor Corp., Milwaukee 46, Wisconsin.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 47 baler, when ordered.

1шт.

For Wisconsin engine drive package w/2-cylinder self-contained electrical system engine for 37 baler, when ordered.

1шт.
