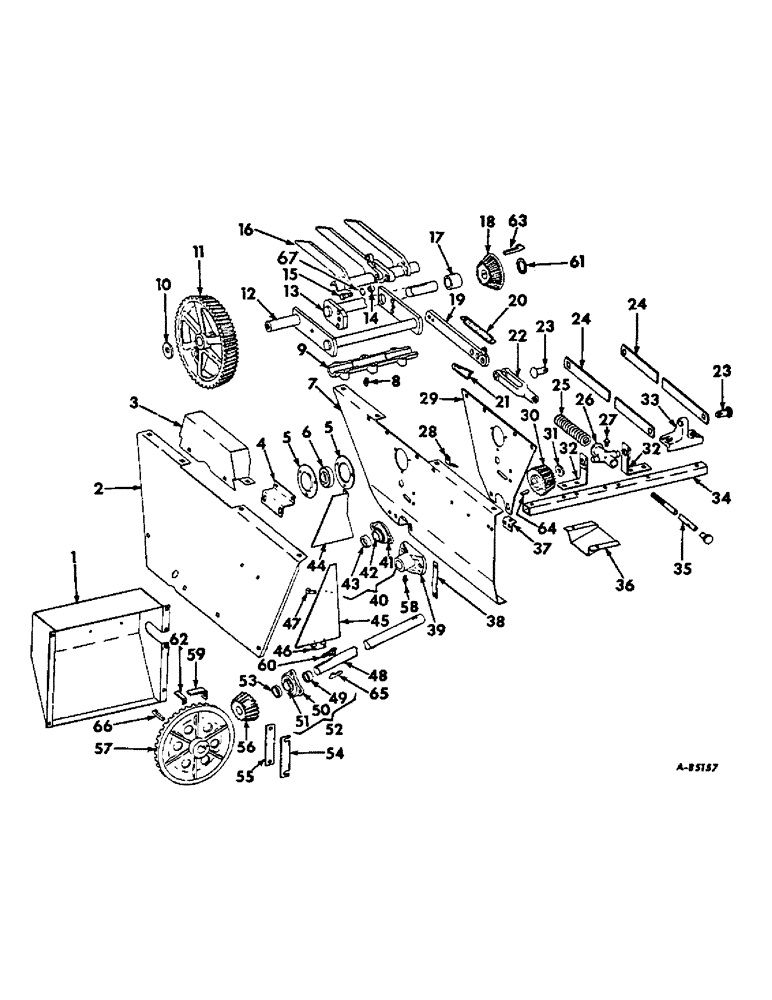

Запчасти Case IH 37 (B-23) - PACKER FINGERS AND DRIVE

1

667770R91

COVER, packer drive cpt.

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

667730R1

SHIELD, packer crank

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

5шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

2шт.

3

667721R1

SHIELD, upper packer gear

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

667804R1

SUPPORT, plunger shield, regular for 47 Baler, special for 37 Baler

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach. 5/16 x 3/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

667861R1

BEARING CAP,2.8346" ID x 4.8125" OD x 0.375"

bearing retainer

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, cge. 3/8 x 1-1/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

571588R91

BALL BEARING

BEARING, packer crank front

1шт.

7

667699R1

SUPPORT, packer bearing front

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

5шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

662012R1

CAP

packer finger bearing

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

mach. 3/8 x 1-3/4

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

667698R1

WASHER

packer crank bearing front

1шт.

9409973

BOLT, hex lock type AA 7/16 x 1

1шт.

11

667768R1

GEAR

packer drive upper

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

mach. 1/2 x 2-1/2

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga. (or as req.)

1шт.

12

667694R91

CRANKSHAFT

packer cpt.

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

4шт.

Q275

WASHER

1-13/32 x 2 x 20 ga

1шт.

13

667726R91

CRANKSHAFT

packer rear cpt.

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, 3/8 x 1-3/4

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

8шт.

Q275

WASHER

1-13/32 x 2 x 20 ga

4шт.

14

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

425-115

NUT,5/16"-24, G5

5/16NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

shear, 5/16 NF x 2 type 2 cap screw

1шт.

16

667744R11

FINGER W/CAP, packer

1шт.

17

667729R2

SLEEVE

packer crank

1шт.

18

495163R3

GEAR

intermediate miter

1шт.

19

667747R1

ARM, packer finger

1шт.

663108R1

HEADED PIN,7/16" x 2 1/2"

PIN, std. hd. 7/16 x 2-1/2

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

20

662632R1

SPRING

packer

1шт.

21

664840R1

RING

PIN, packer finger clip, for 47 Baler, see Note A

1шт.

22

662032R2

CONNECTOR, ELEC

CONNECTOR, packer finger relief, for 47 Baler, see Note A

1шт.

663047R2

PIN

rod end 3/4 x 2-5/32

1шт.

23

667754R1

PIN, packer control link, 2 for 37 Baler

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

24

667753R1

LINK, packer control, 2 for 37 Baler

1шт.

25

663902R1

VALVE SPRING

SPRING, packer relief, for 47 Baler, see Note A

1шт.

26

495195R1

TRUNNION, packer finger, for 47 Baler, see Note A

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self tapping straight lubrication, for 47 Baler, see Note A

1шт.

28

667724R1

ANCHOR

packer bearing support

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 3/4

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

667725R1

PLATE

packer bearing front support

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

667766R1

GEAR

PINION, packer drive upper

1шт.

31

667698R1

WASHER

packer drive shaft upper

1шт.

32

667752R1

ANCHOR, packer relief, 2 for 47 Baler, see Note A

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

cge. 3/8 x 2

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

668049R1

ANCHOR, packer linkg, for 37 Baler

1шт.

17548R1

BOLT, 3/8 x 2-1/4 mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

34

667751R1

TUBE, packer relief anchor support

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

cge. 3/8 x 2

2шт.

15089R1

BOLT

cge. 3/8 x 2-1/4

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

664678R1

ROD, packer relief guide, for 47 Baler, see Note A

1шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

425-1012

NUT,3/4"-10, G5

3/4

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

36

667741R1

SHIELD

packer pinion hay

1шт.

37

668047R1

BRACE, packer relief tube

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

38

667763R1

STRAP

packer bearing adjusting

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

667764R1

BEARING, packer drive upper, for 37 Baler

1шт.

15039R1

BOLT

cge. 3/8 x 1-1/2

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

40

667863R91

BEARING ASSY,4.9375" OD x 0.875"

packer drive upper, for 47 Baler

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

(Not serviced separately, order 667863R91

1шт.

42

571588R91

BALL BEARING

BEARING, packer drive upper, for 47 Baler

1шт.

43

517645R11

COLLAR

W/SET SCREW, bearing locking, for 47 Baler

1шт.

44

667737R1

SHEET

tool box end, for 47 Baler

1шт.

171102

SCREW,Self-Tap, Hex, 5/16" - 18 x 5/8"

5/16-18 x 5/8 cd-pltd hex-hd tapping

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

667733R91

DOOR, tool box, for 47 Baler

1шт.

46

667736R1

HINGE

tool box door, for 47 Baler

1шт.

112419

RIVET, .140 x 17/64 tinner

4шт.

166684

COVER PLATE

SCREW, 10-32 x 3/8 cd-pltd cr-rec-rd hd tap

2шт.

47

667735R1

LATCH, tool box door, for 47 Baler

1шт.

48

667762R1

SHAFT

packer drive

1шт.

49

517645R11

COLLAR

W/SET SCREW, bearing locking

1шт.

50

(Not serviced separately), order 668369R91

1шт.

51

571588R91

BALL BEARING

BEARING, packer drive lower

1шт.

52

668369R91

FLANGED BEARING

packer drive lower cpt.

1шт.

15039R1

BOLT

cge. 3/8 x 1-1/2

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

53

668325R1

SPACER

lower packer pinion

1шт.

54

667761R1

SHIM

packer gear wear (or as req.)

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

55

667760R1

STRIP

WEAR STRIP, packer gear

1шт.

56

667769R1

GEAR

PINION, packer drive lower

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga. (or as required)

4шт.

57

667759R4

GEAR

packer drive lower

1шт.

58

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg angle self-tap. lubrication

1шт.

59

668766R1

RETAINER

packer drive shaft lower key

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16-18 x 3/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

60

656955R1

STUD

lower packer bearing dowel

1шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

61

667438R1

SHIM

miter gear (or as required)

1шт.

62

671631R1

RETAINER

packer gear key

1шт.

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 hex-soc-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

297059R1

WASHER, 1-25/32 x 2-1/4 x 22 ga (or as req.)

2шт.

Q3489

WASHER

1-25/32 x 2-1/2 x 16 ga (or as required)

3шт.

63

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

gib, 3/8 x 1-3/4

1шт.

64

452563

KEY

Woodruff 128, 5/16 x 2-1/8

1шт.

65

Q1497

KEY,Gib, 3/8" Sq x 2"

taper gib 3/8 x 2

1шт.

66

669016R1

KEY

taper gib 3/8 x 2-3/4

1шт.

67

673878R1

RETAINER, packer finger shear bolt

1шт.
