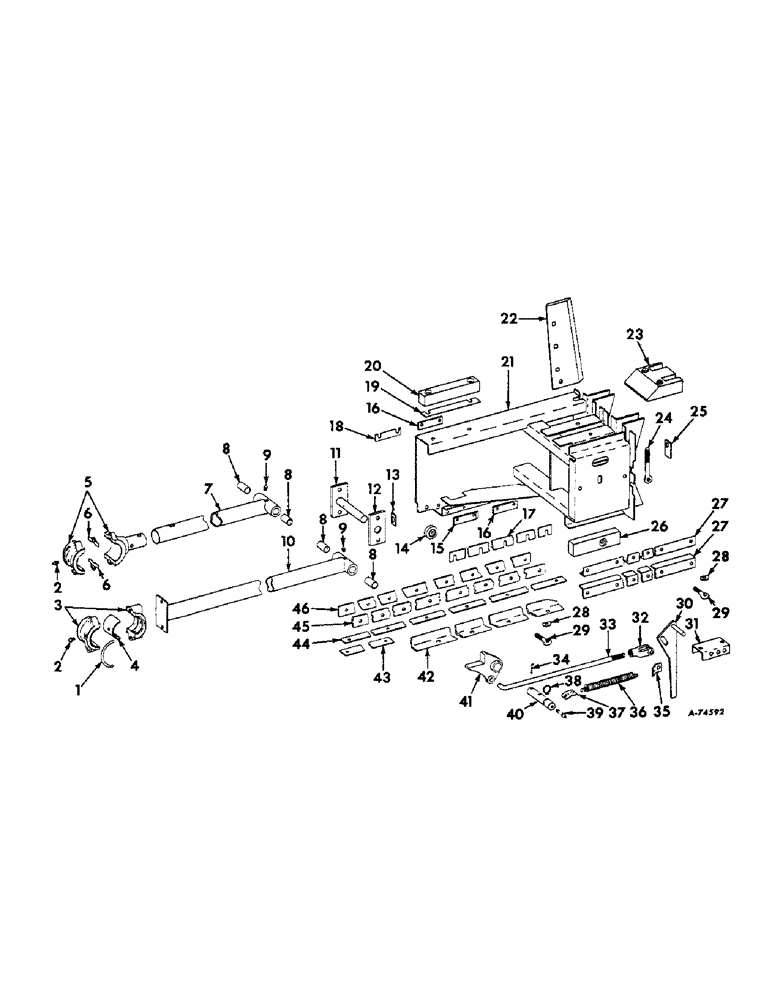

Запчасти Case IH 37 (B-21) - PLUNGER

1

665450R1

SEAL

OIL SEAL, Pitman bearing front, 4 for wire Balers

1шт.

18570R1

BOLT, mach. dr. 7/16 x 3-3/4

2шт.

425-127

SLOTTED NUT,7/16"-14, G5

sl. 7/16

2шт.

108636

PIN

cotter 3/32 x 1-1/2

2шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

665716R11

BEARING ASSY

Pitman front, for wire Balers

1шт.

4

664975R1

BEARING LINER

INSERT, Pitman bearing front, 2 for wire Balers

1шт.

5

495177R21

BEARING ASSY,4.5" OD x 2.97"

BEARING, Pitman front cpt., for twine Balers

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

2шт.

6

495278R2

SHIM

Pitman bearing, 16 for 37T and 47T Balers

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

1шт.

7

667943R91

PITMAN

for 37T and 47T Balers

1шт.

8

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

Pitman rear

2шт.

9

18275R91

LUBE NIPPLE

FITTING, lub. 1/8 x 65 D.

1шт.

10

665714R91

TUBE,35.75" Length

PITMAN CPT., for wire Balers

1шт.

11

668358R91

SUPPORT

BLOCK, plunger Pitman cpt.

1шт.

12

668359R1

BLOCK

Pitman

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 short-sq-nk-crg type 2 material

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

668362R1

STRIP

SCRAPER, front plunger

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

578274R1

WASHER

21/32 x 1 x 11 ga

1шт.

14

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

ROLLER, plunger

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

668366R1

HALF BLADE

PAD, wearing lower front left

1шт.

16

668367R1

PAD

wearing lower

3шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

664542R1

SHIM

plunger thrust spacer lower (or as required)

1шт.

18

668368R1

SHIM

lower plunger (or as required)

8шт.

19

668365R1

SHIM,45.72mm OD x 0.76mm Thk

upper plunger right (or as required)

2шт.

20

668364R2

BLOCK

plunger upper right

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 hex-hd mach

2шт.

453838

NUT

5/16-18 cd-pltd tee type G

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

668346R92

PLUNGER CPT.

1шт.

22

667684R2

KNIFE

hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Repair Hd 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23

668375R1

BLOCK

plunger upper center

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

667922R1

BOLT,Eye, 5/8" - 11 x 4.69"

EYE BOLT, plunger

1шт.

102637

NUT,1/2"-13, G5

2шт.

25

668363R1

SCRAPER

rear plunger

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga.

1шт.

26

667923R1

SLIDE

plunger

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

1шт.

27

667935R1

ANGLE

plunger guide

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap, 12 for wire Balers

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap, 2 for wire Balers

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 10 for wire Balers 3/8"

12шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , 2 for wire balers Int Tooth, 3/8"

1шт.

477242R1

WASHER

13/32 x 1 x 22 ga C-Z

6шт.

28

(Not used)

1шт.

29

668765R1

BOLT

EYEBOLT, plunger guide

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

30

667960R91

ARM, plunger stop cpt.

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga.

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

31

667962R1

HANGER, plunger stop arm

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8

1шт.

PO26455

LARGE PIN,5/8" x 1 7/8"

PIN, std. hd. 5/8 x 1-7/8

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

33

667959R1

ROD

LINK, plunger stop

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga.

2шт.

34

11453P

PIN

plunger stop pivot lock

1шт.

35

668048R1

CLIP

plunger stop spring

1шт.

36

H39195

SPRING

plunger stop pivot

1шт.

37

667956R1

ANCHOR, plunger stop spring

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach. 3/8 x 3/4

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

38

454417R1

SNAP RING,#100, Ext

Ring, Snap, , plunger stop pivot #100, Ext

1шт.

39

301265R1

LUBE NIPPLE,65 Degree, 1/8" NPT x 2 3/4" lg

FITTING, 1/8-27 NPTF 65 deg angle lub

1шт.

40

667954R1

PIVOT, plunger stop

1шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga (or as required)

2шт.

41

667952R1

STOP

plunger

1шт.

42

667931R1

ANGLE

plunger guide

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50793H

WASHER

13/32 x 7/8 x 11 ga

2шт.

43

667939R1

EXTENSION, bottom plate

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8-16 x 1 No. 3 plow

4шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

3шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

2шт.

44

667938R1

STRIP

RUNNER, plunger roller

1шт.

45

667936R1

SPACER

plunger thrust lower

1шт.

46

667937R1

NO LONGER SERVICED

FILLER, plunger thrust spacer

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8-16 x 1 No. 3 plow

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.
