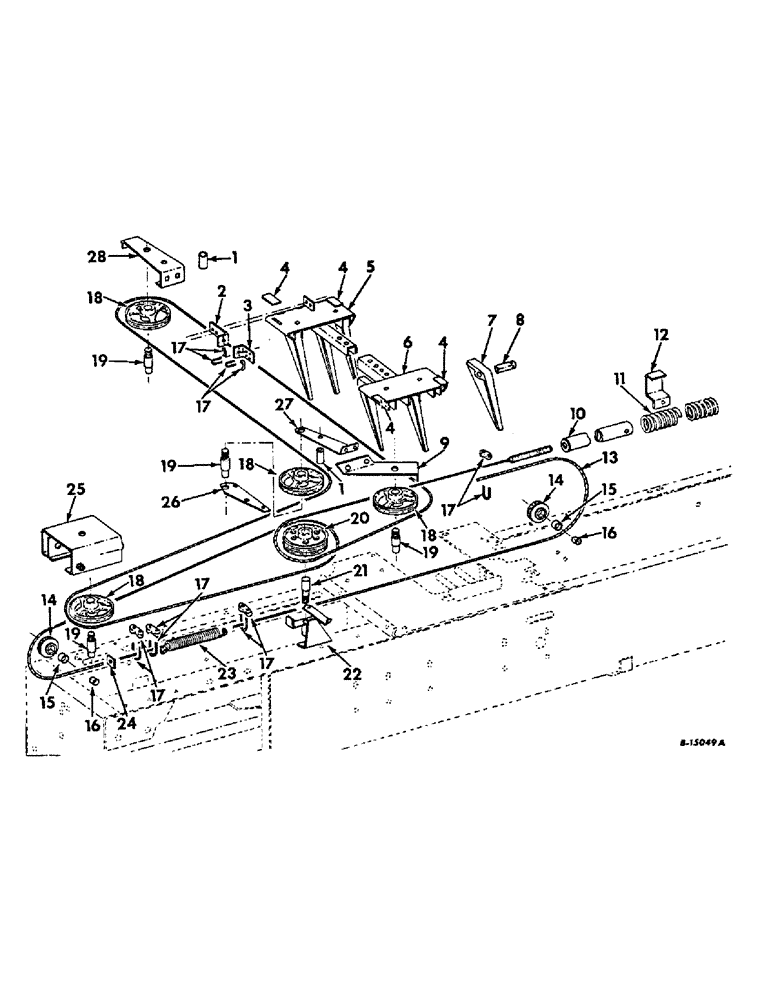

Запчасти Case IH 27 (C-09) - FEEDER
№
Артикул
Название
Примечание
Количество
1
670491R1
SPACER
pulley center
1шт.
17602R1
BOLT, 7/16 x 2-3/4 hex-hd mach
1шт.
NLS
NO LONGER SERVICED
7/16-14 hex.
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
1
670491R1
SPACER
feeder crg rail
1шт.
17601R1
BOLT,Hex, 3/8"-16 x 2 3/4", G2
3/8 x 2-3/4 hex-hd mach
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
2
670508R2
BRACKET
feeder drive
1шт.
477795R1
SCREW
BOLT, 3/8-16 x 1 long neck crg
2шт.
664645R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 hex. lock
2шт.
3
670507R1
SUPPORT
BRACKET, feeder cable
1шт.
132848
SCREW,Sl Rnd Hd, #10 - 24 x 1"
10-24 x 1 slt-rd-hd mach, tension bolt
2шт.
110633
NUT,#10-24
2шт.
106497
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
4
670514R1
INSERT
feeder carriage runner
8шт.
5
671111R91
CARRIER
CARRIAGE ASSY, feeder RH
1шт.
482678R1
NUT, 3/8-16 pilot weld lock
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
6
671110R91
CARRAIGE ASSY, feeder LH
1шт.
7
670515R11
FINGER ASSY.
ASSY, feeder
6шт.
8
670517R1
SHAFT
finger pivot
6шт.
13042R1
AXLE PIN,1/8" x 3/4"
Pin, Split (Cotter), , self-opening 1/8" x 3/4"
6шт.
9
670493R1
BRACKET
pulley LH
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach
1шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
17446R1
BOLT,3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd mach
1шт.
10
670504R91
PILOT ASSY, feeder relief spring
1шт.
11
520160R1
SPRING
feeder relief
1шт.
Q3482
WASHER
1-5/32 x 1-3/4 x 11 ga
1шт.
553050R1
LOCK PIN,1/4" x 1 3/4", Slotted
Pin, 1/4" x 1 3/4", Slotted
1шт.
102637
NUT,1/2"-13, G5
1шт.
12
670506R1
STRAP, feeder spring
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
13
670501R11
CABLE,10122mm L
ASSY W/INSTRUCTIONS, feeder drive
1шт.
14
670498R11
PULLEY
ASSY, idler front relief spring
2шт.
15
670499R1
BUSHING
BEARING, idler knotter drive
2шт.
16
670500R1
BUSHING
idler pulley
2шт.
17523R1
BOLT, 1/2 x 2 hex-hd mach
1шт.
17550R1
BOLT,Hex, 1/2"-13 x 2 1/4", G2
1/2 x 2-1/4 hex-hd mach
1шт.
102637
NUT,1/2"-13, G5
3шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
31696H
WASHER, 17/32 x 1-1/2 x 16 ga
2шт.
17
670502R91
BOLT
CLAMP ASSY, feeder cable
6шт.
131402H
WASHER
11/32 x 9/16 x 16 ga
12шт.
18
670488R1
PULLEY
feeder drive
4шт.
19
670487R91
BALL BEARING,0.6267" ID x 1.1811" OD x 1.531"
ASSY, feeder pulley
4шт.
102637
NUT,1/2"-13, G5
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
20
670485R1
PULLEY
plunger
1шт.
21
ST633
BEARING ASSY
plunger pulley, replaces 274844R91
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
SCREW, 1/2-13 x 1-1/4 znd hex-hd cap
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
22
670480R91
BRACKET
ASSY, plunger pulley
1шт.
23
670503R1
SPRING
cable tension
1шт.
24
670465R1
BUMPER
carriage
1шт.
668569R1
WASHER
11/32 x 1-1/2 x 11 ga C-Z
1шт.
25
670494R91
BRACKET
ASSY, front pulley
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
5шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
26
670490R1
SUPPORT
BRACKET, center pulley lower
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
2шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
2шт.
27
670489R1
SUPPORT
BRACKET, center pulley upper
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 hex-hd mach
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
Q1597
WASHER
13/32 x 3/4 x 16 ga
2шт.
28
670492R1
BRACKET
pulley RH
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 80
