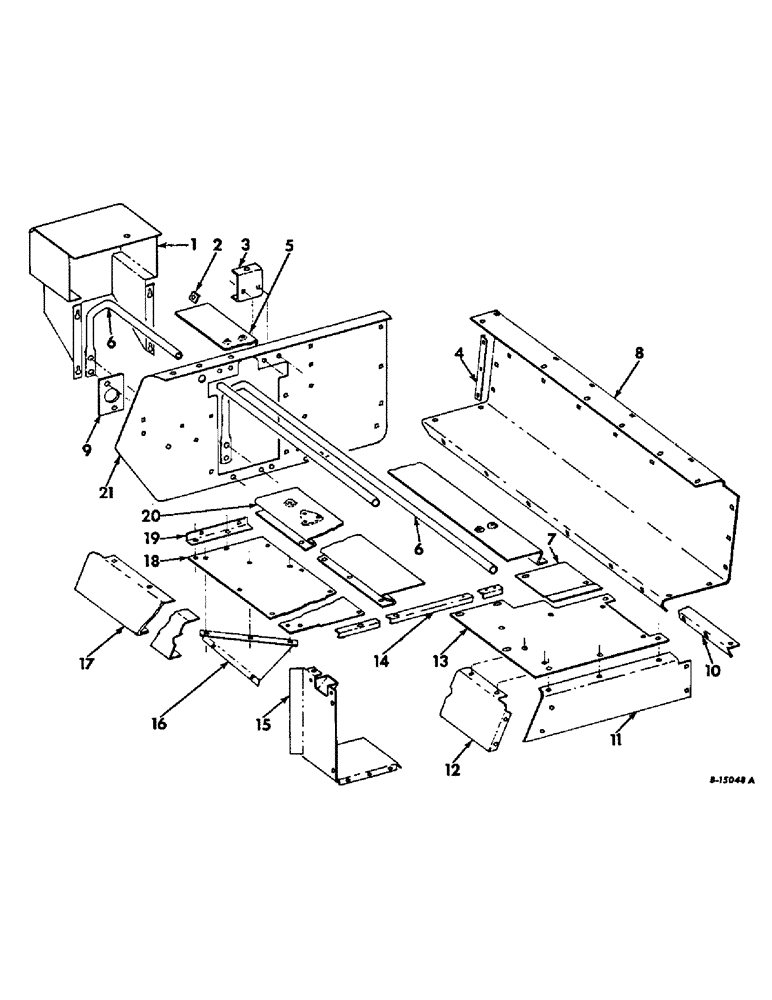

Запчасти Case IH 27 (C-07) - CROSS CONVEYOR AND FEED OPENING

1

670449R91

COVER

ASSY, feeder

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

632225R1

LOCK NUT

5/16-18 spinlock

4шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z sq-nk crg

1шт.

2

670465R1

BUMPER

carriage

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

3

670467R1

BRACKET

rear rail support

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

670454R1

NUT

5/16-18 speed grip

1шт.

4

670457R1

ANGLE

cross conveyor side sheet

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

670466R1

SPARE PART

RAIL, feeder carriage rear

1шт.

670454R1

NUT

5/16-18 speed grip

7шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

7шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

9шт.

6

670468R91

BRACKET

PIPE ASSY, cross conveyor

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

7

671091R1

PLATE, cross conveyor extension LH

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

1шт.

8

670455R1

GUARD

SHEET, feed opening

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16-18 x 1 slt-f-hd

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

670531R1

PLATE, pickup pivot RH brg

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

670458R1

ANGLE

cross deck support

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

7шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

11

670471R1

SUPPORT, cross conveyor cover LH

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

3шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

670473R1

SUPPORT ASSY.

SUPPORT, cross conveyor LH front

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

670479R2

PLATE

COVER, cross conveyor LH

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

670641R1

SPARE PART

ANGLE, knotter shield support

1шт.

144811

SCREW,Sl Rnd Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z slt-rd-hd tap

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

2шт.

15

670460R91

OPENING ASSY, feed

1шт.

137352

SCREW, 1/4-20 x 5/8 slt-truss-hd mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

670478R1

DEFLECTOR

hay

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

670474R1

COVER ASSY

COVER, cross conveyor front

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

5шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

670475R1

PLATE

SHEET, cross conveyor top

1шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 speed grip

4шт.

19

670477R1

ANGLE

cross conveyor side sheet front

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

20

670464R2

SPARE PART

RAIL, feeder carriage front

1шт.

670454R1

NUT

5/16-18 speed grip

7шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

7шт.

14990R1

BOLT

5/16 x 5/8 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

6шт.

21

670453R1

SHEET

cross conveyor side

1шт.

670454R1

NUT

5/16-18 speed grip

3шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
