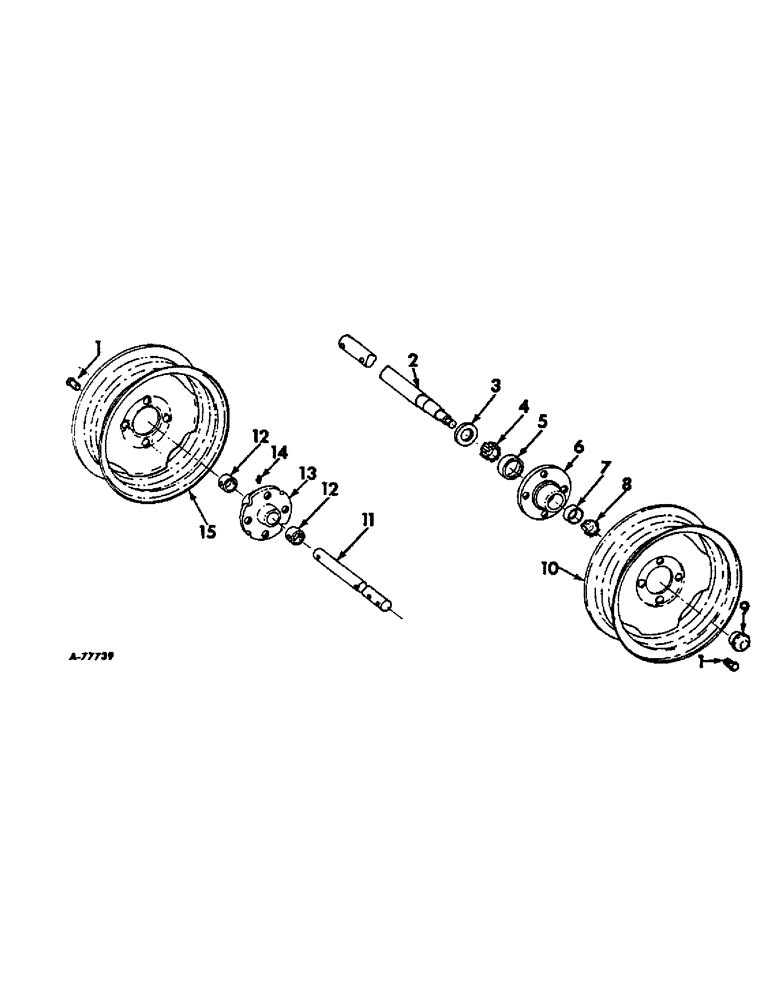

Запчасти Case IH 27 (C-06) - WHEELS AND AXLES

1

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

2

670447R1

SPINDLE, left wheel

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 13 ga

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

3

663004R91

OIL SEAL

left wheel bearing

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, left wheel inner cone

1шт.

5

651817R1

BEARING CUP

BEARING, left wheel inner cup

1шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

663054R91

HUB

W/BEARING CUPS & BOLTS, left wheel

1шт.

7

651814R1

BEARING CUP

BEARING, left wheel outer cup

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, left wheel outer cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651194R1

CAP

left wheel hub

1шт.

10

455169R92

WHEEL

RIM ASSY, left wheel

1шт.

11

670448R1

SPINDLE, right wheel

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

670589R1

SPACER

BUSHING, right wheel spindle

2шт.

N32142

HEADED PIN,9.53mm OD x 53.98mm L

PIN, 3/8 x 2-3/16 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga (or as required)

4шт.

13

670590R1

HUB, right wheel

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tapping lub

1шт.

15

662994R91

WHEEL

RIM ASSY, right wheel

1шт.
