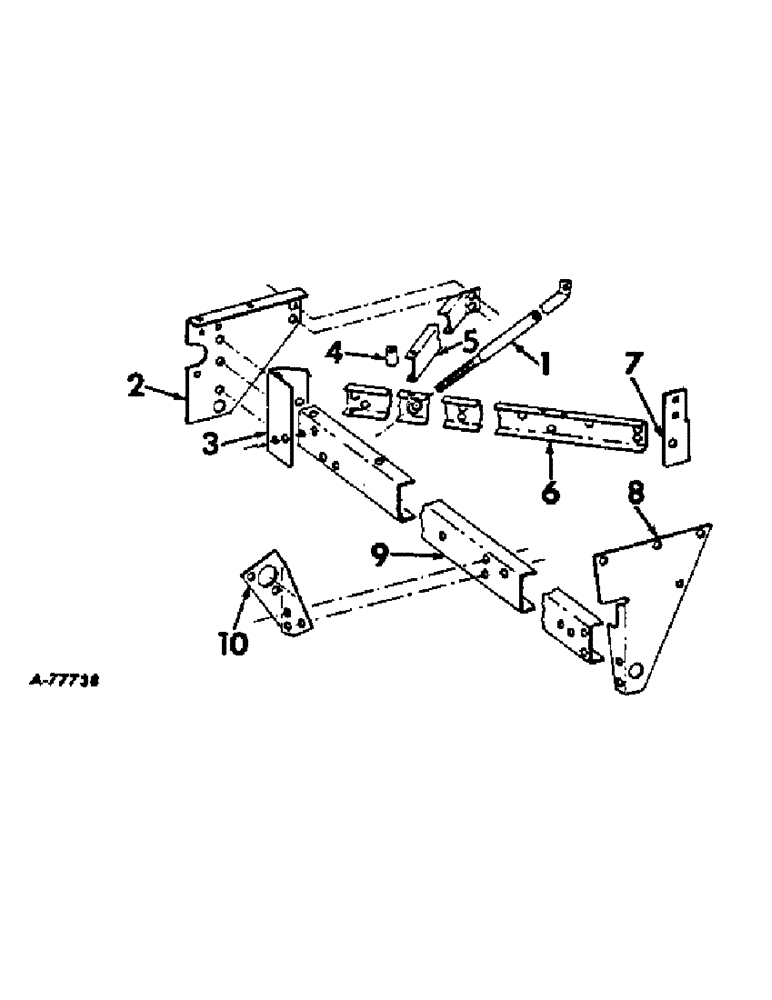

Запчасти Case IH 27 (C-05) - MAIN FRAME

1

671622R91

SUPPORT ASSY.

SUPPORT ASSY, bale chamber

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

2

670444R1

SPARE PART

GUSSET, right axle

1шт.

3

670439R1

BRACKET

axle channel tie

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

NLS

NO LONGER SERVICED

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

670446R1

SPACER,1/2" Pipe x 3"

diagonal brace cross

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga (or as required)

1шт.

5

670445R1

CHANNEL

diagonal brace cross

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

670442R11

CHANNEL

ASSY, diagonal brace

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

670443R1

SUPPORT

BRACKET, diagonal brace

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

670438R1

SUPPORT

GUSSET, left axle

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

670437R1

SPARE PART

CHANNEL, axle

1шт.

10

670441R1

GUSSET

ANGLE, center axle gusset

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
