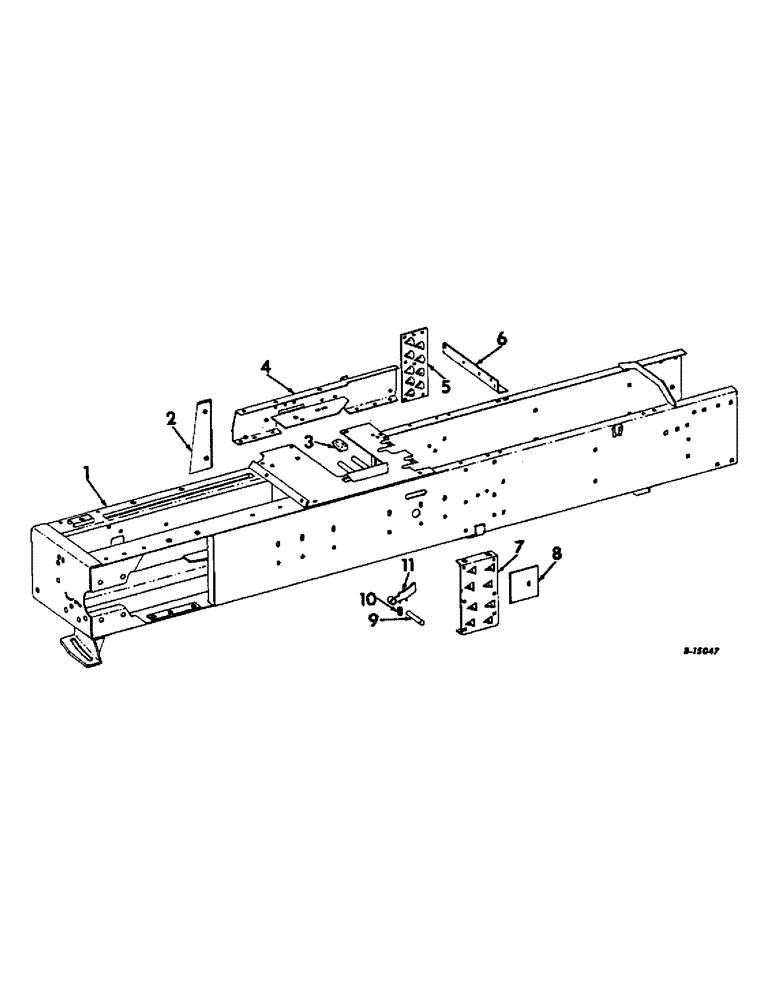

Запчасти Case IH 27 (C-04) - BALE CHAMBER

1

670407R91

CHAMBER ASSY, bale

1шт.

670454R1

NUT

5/16-18 speed grip

2шт.

2

670434R1

KNIFE ASSY

KNIFE, hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Repair Hd 5/8"-11 x 1 1/2", G2, Full Thd

1шт.

15606R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-1/4 No. 3 repair hd-plow

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

673503R1

DEFLECTOR, feed opening hay

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

3/8 x 2 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

670430R91

REINFORCEMENT ASSY, upper bale chamber tie

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 No. 3 plow

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

670454R1

NUT

5/16-18 speed grip

3шт.

5

662294R3

PLATE

hay retainer right

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

662147R2

ANGLE

ANCHOR, bale chamber tension

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

1шт.

7

662215R4

PLATE

hay retainer left

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

6шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 No. 3 plow

2шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

8

670583R1

PLATE

COVER, plunger adjusting

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

5шт.

9

667685R1

PIN

hay retainer

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

668869R1

SPRING

hay retainer

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15543R1

BOLT

3/8 x 3/4 No. 3 plow

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

662007R2

RETAINER

hay

2шт.
