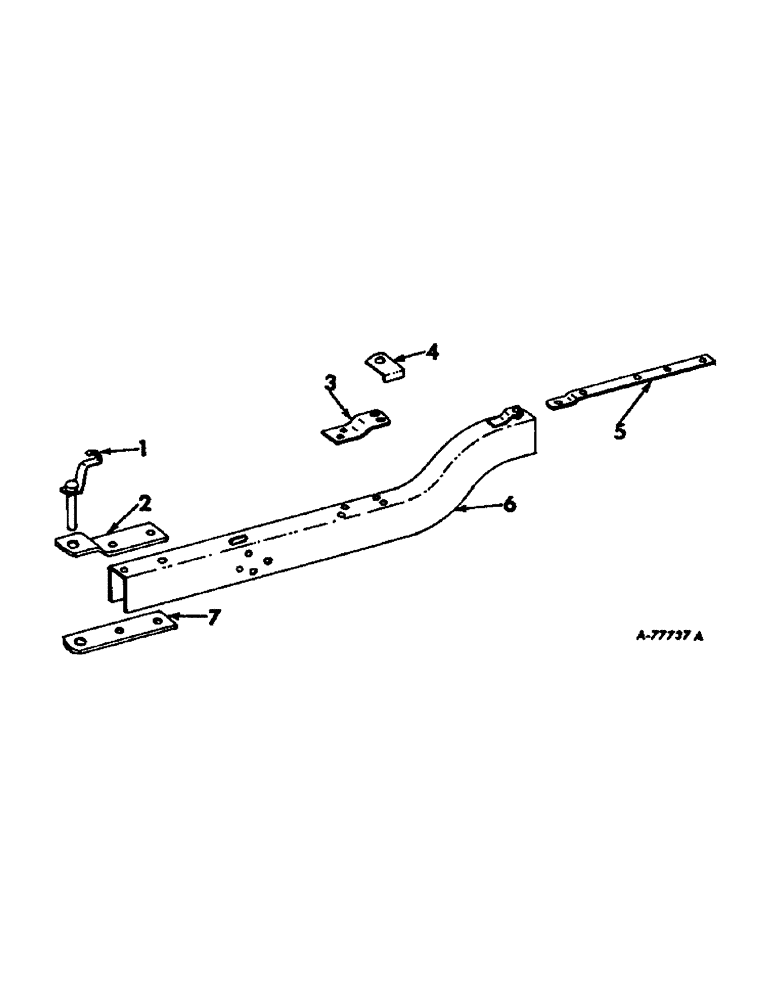

Запчасти Case IH 27 (C-03) - HITCH

1

668406R91

PIN ASSY, hitch

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

2

662145R1

STRAP

hitch clevis lower

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

2шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

670404R1

HOLDER

STRAP, hammer hitch

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

670405R1

LOCK, hitch channel

1шт.

13419R1

BOLT, 3/4 x 3 sq-hd mach

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA stop

1шт.

5

670403R1

STRAP, hitch pivot

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd mach

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA stop

1шт.

6

670400R92

HITCH ASSY, channel

1шт.

7

662144R1

STRAP

hitch clevis upper

1шт.
