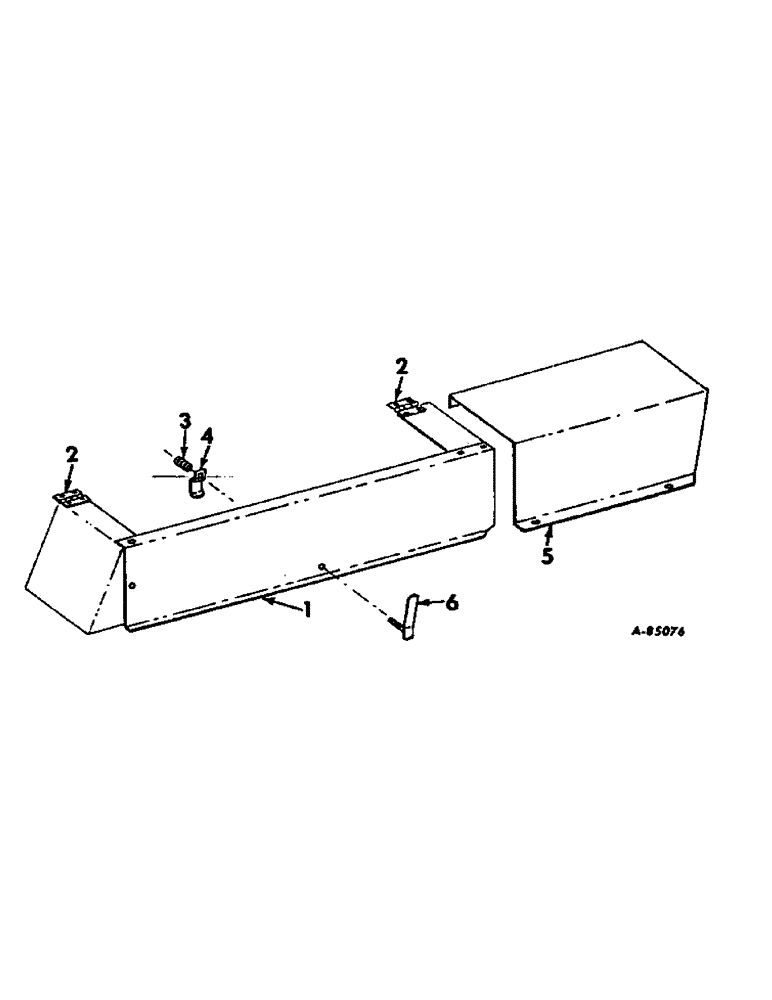

Запчасти Case IH 27 (C-36) - PLUNGER CRANK SHIELD ATTACHMENT

1

671983R91

SHIELD

ASSY, plunger crank

1шт.

2

667736R1

HINGE

tool box door

2шт.

443547

SCREW, 10-12 x 1/2 znd slt-hd tap

4шт.

3

354746R1

SPRING

plunger crank shield

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

472144R1

NUT

3/8-16 znd hex. lock

1шт.

4

671987R1

PAWL

plunger crank shield latch

1шт.

5

671988R1

SUPPORT

SHEET, plunger crank shield rear

1шт.

443547

SCREW, 10-12 x 1/2 znd slt-hex-hd tap

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

668035R11

LATCH

ASSY, plunger crank shield

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 znd sq-nk crg

1шт.
