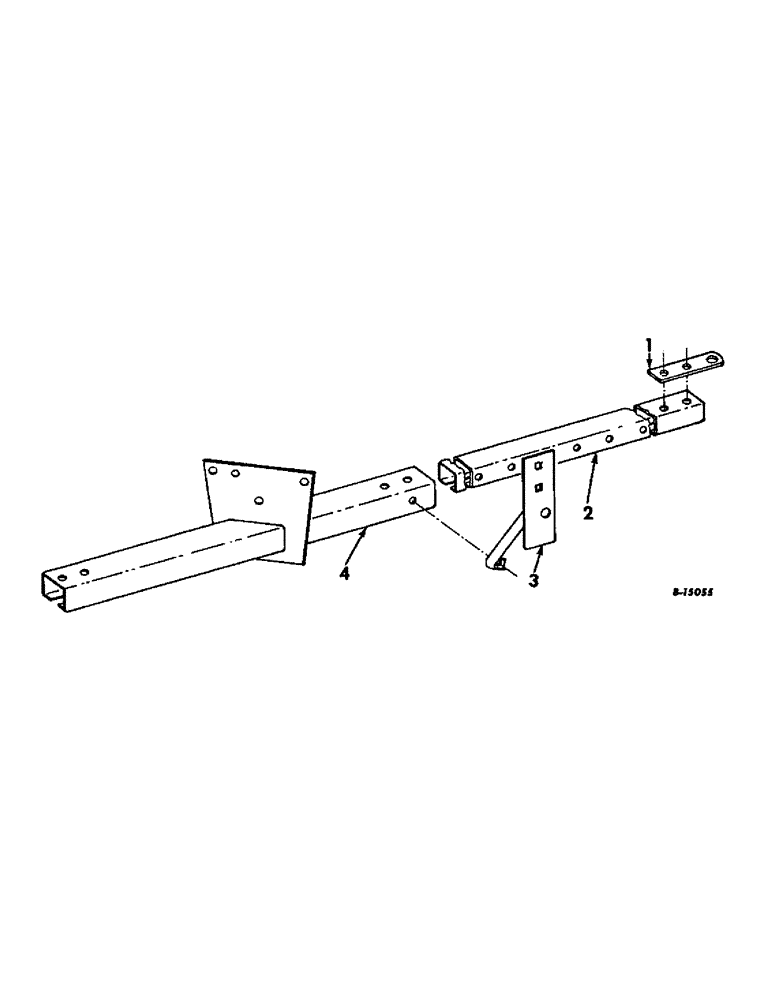

Запчасти Case IH 27 (C-35) - TRAILER HITCH ATTACHMENT

1

670700R1

BAR

trailer hitch

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

670699R1

HITCH ASSY

HITCH, trailer telescoping

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

671637R91

SUPPORT

ASSY, trailer hitch

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

4

670696R91

BRACKET ASSY, trailer hitch

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

102637

NUT,1/2"-13, G5

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.
