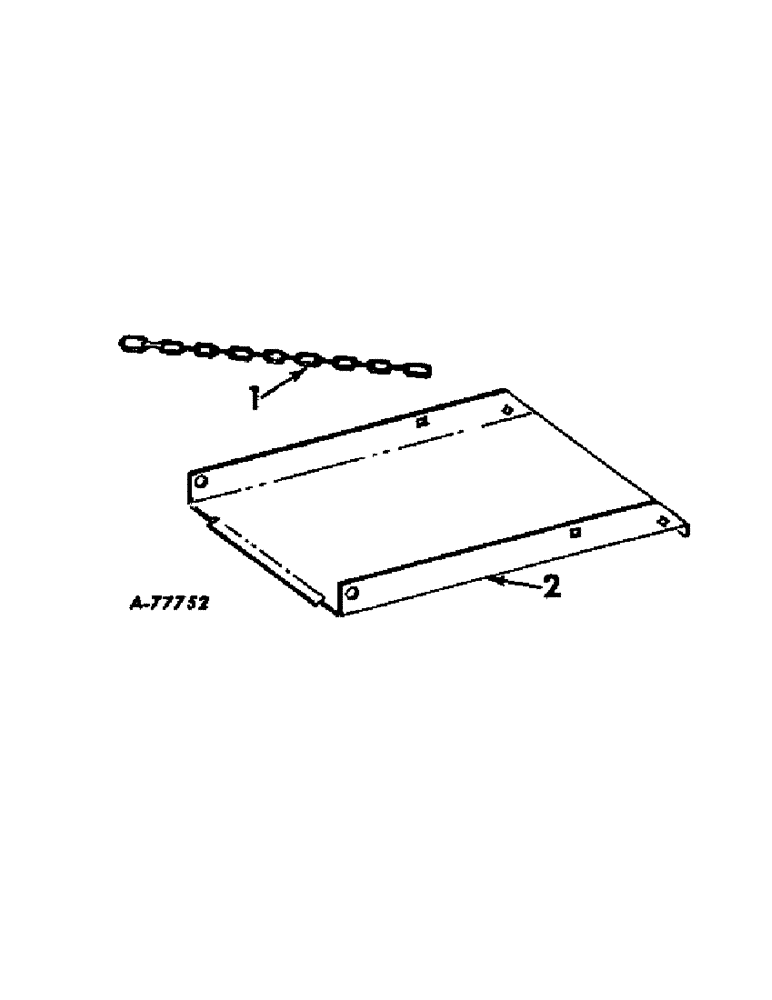

Запчасти Case IH 27 (C-34) - BALE CHAMBER EXTENSION ATTACHMENT

1

495526R1

CHAIN (AG)

CHAIN, bale chamber extension holdup

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 sq-nk crg

2шт.

657803R1

NUT, 5/16-18 wing

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

2

667693R1

EXTENSION

bale chamber

1шт.

14996R1

BOLT, 7/16 x 3/4 sq-nk crg

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.
