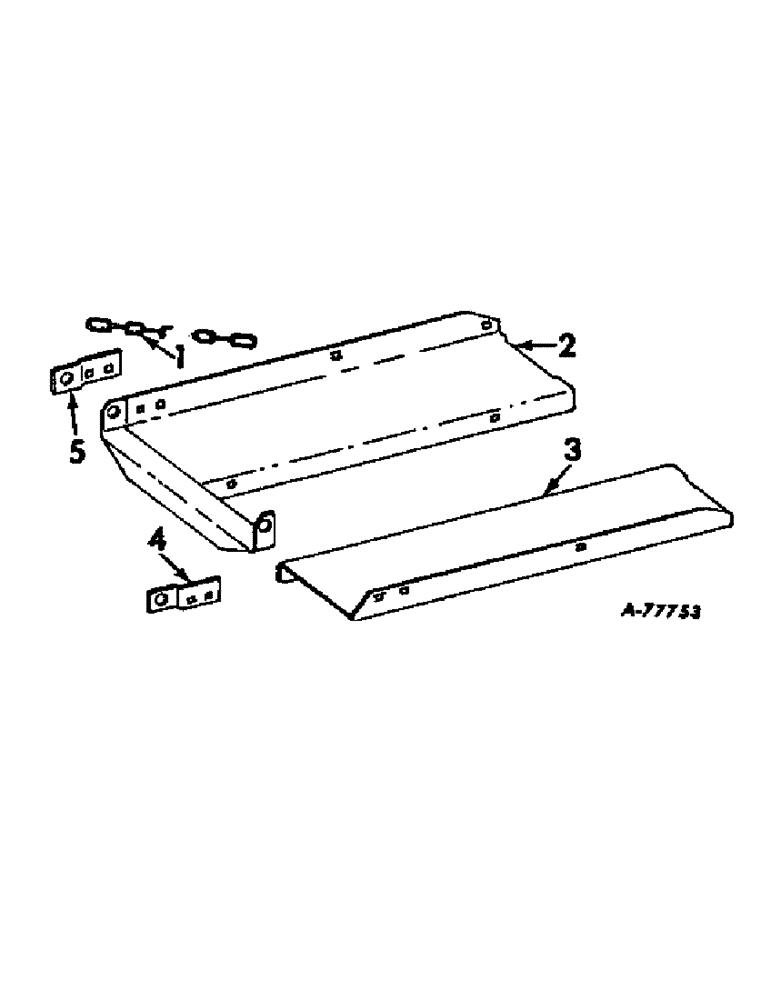

Запчасти Case IH 27 (C-34[A]) - BALE TURNER AND BALE CHAMBER EXTENSION

1

495526R1

CHAIN (AG)

CHAIN, bale chamber extension hold up

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 sq-nk crg, type 2

2шт.

657803R1

NUT, 5/16-18 wing

2шт.

688569R1

WASHER, 11/32 x 1-1/2 x 11 ga C-Z

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

2

667689R92

EXTENSION ASSY, bale chamber RH

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

3

667692R2

EXTENSION, bale chamber LH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

669645R1

BRACKET, bale chamber extension LH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

669646R1

BRACKET, bale chamber extension RH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
