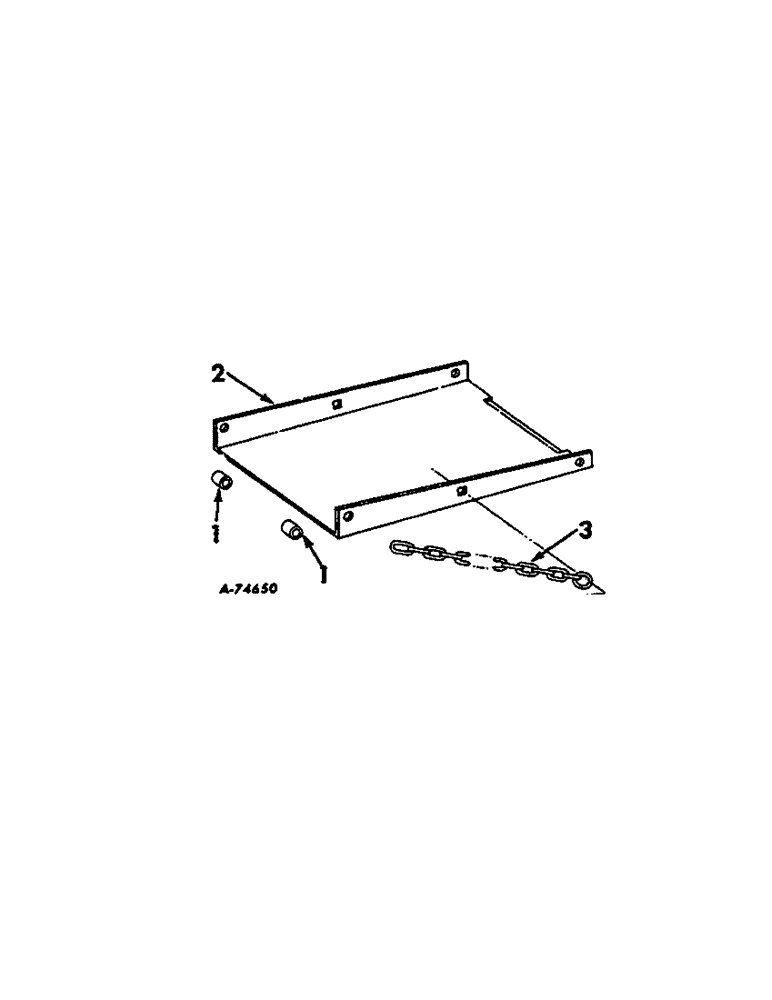

Запчасти Case IH 27 (C-32[B]) - BALE CHUTE ATTACHMENT

1

661290R1

SPACER

bale chute

2шт.

2

667882R2

CHUTE ASSY.

CHUTE, bale

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.

3

669647R1

CHAIN (AG)

CHAIN, bale chute

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 sq-nk crg

2шт.

657803R1

NUT, 5/16-18 wing

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.
