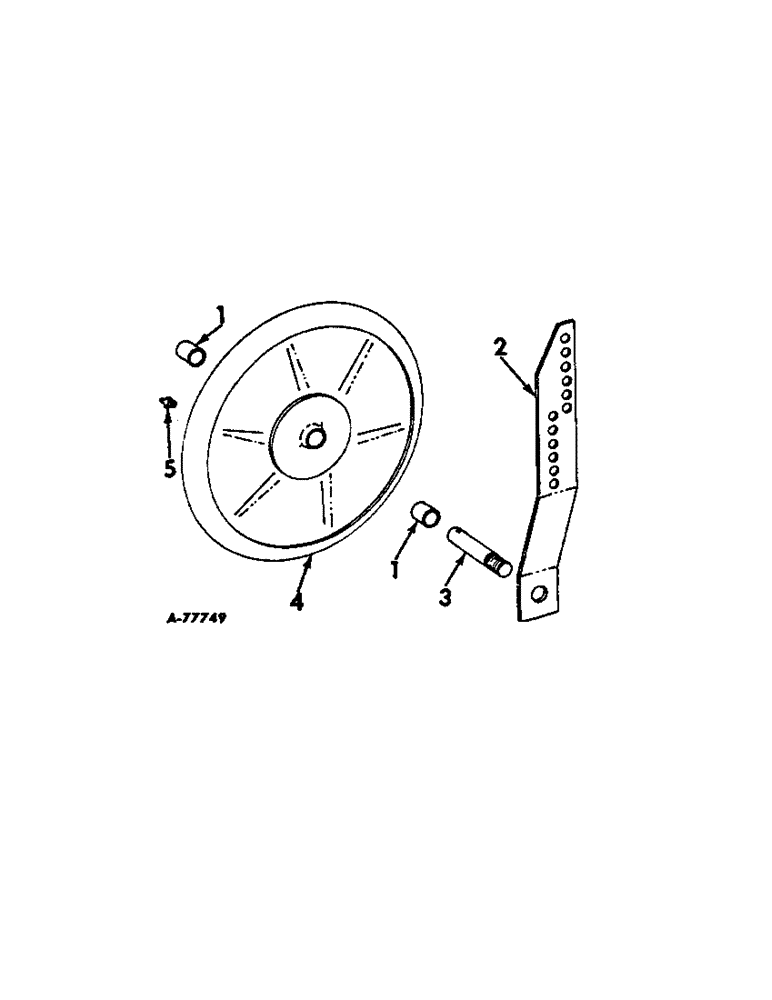

Запчасти Case IH 27 (C-32[A]) - PICKUP WHEEL ATTACHMENT

1

659918R1

BUSHING

pickup wheel

2шт.

2

670691R1

BRACKET

pickup gauge wheel

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

3

670692R1

SHAFT

pickup gauge wheel

1шт.

220081

NUT

3/4-10 hex.

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga (or as req)

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

659917R91

WHEEL ASSY, pickup

1шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg angle lub, replaces 274508

1шт.
