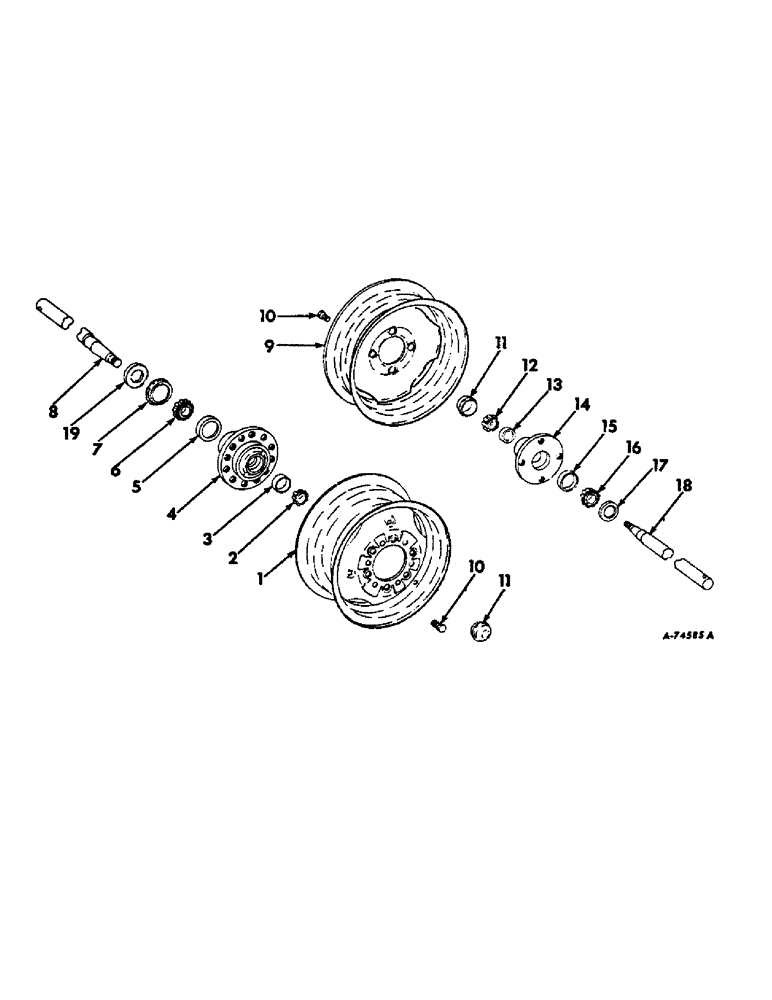

Запчасти Case IH 27 (C-31) - HEAVY DUTY WHEEL ATTACHMENT

1

518823R91

WHEEL

RIM ASSY, left wheel

1шт.

2

519467R91

BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"

ASSY, left wheel outer cone

1шт.

3

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

BEARING, left wheel outer cup

1шт.

4

662993R11

HUB

W/BEARING CUPS & BOLTS, wheel LH

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, left wheel inner cup

1шт.

6

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

ASSY, left wheel inner cone

1шт.

7

670702R1

SPINDLE

wheel LH

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex.

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

9

662994R91

WHEEL

RIM ASSY, right wheel

1шт.

10

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

10шт.

11

651194R1

CAP

hub

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, right wheel outer cone

1шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

651814R1

BEARING CUP

BEARING, right wheel outer cup

1шт.

14

663054R91

HUB

W/BEARING CUPS & BOLTS, wheel RH

1шт.

15

651817R1

BEARING CUP

BEARING, right wheel inner cup

1шт.

15

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, right wheel inner cone

1шт.

17

663004R91

OIL SEAL

right wheel brg oil

1шт.

18

670864R1

SPINDLE, wheel RH

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

19

(Not used)

1шт.
