(C-29) - HITCH EXTENSION CHANNEL, USED WITH THREE KNUCKLE PTO DRIVE

Запчасти Case IH 27 (C-29) - HITCH EXTENSION CHANNEL, USED WITH THREE KNUCKLE PTO DRIVE

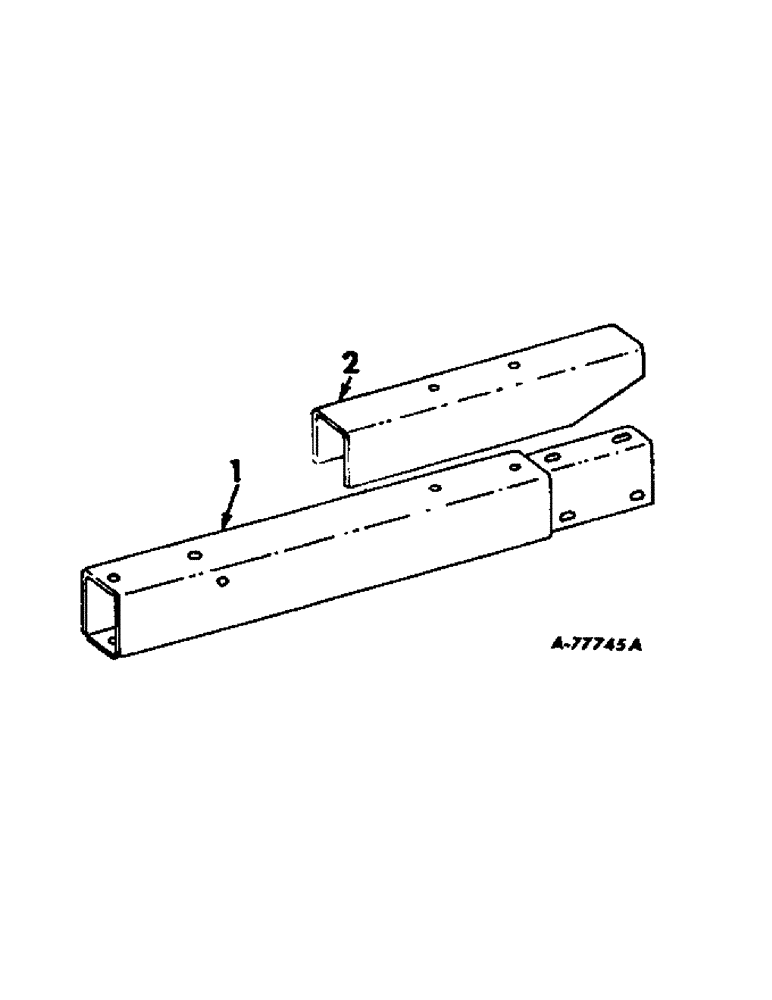

Схема запчастей Case IH 27 - (C-29) - HITCH EXTENSION CHANNEL, USED WITH THREE KNUCKLE PTO DRIVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

671095R91

CHANNEL

ASSY, hitch extension

1шт.

2

673164R1

EXTENSION

SECTION ASSY, hitch extension

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 znd hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

21759R1

WASHER

21/32 x 2 x 11 ga C-Z

2шт.
