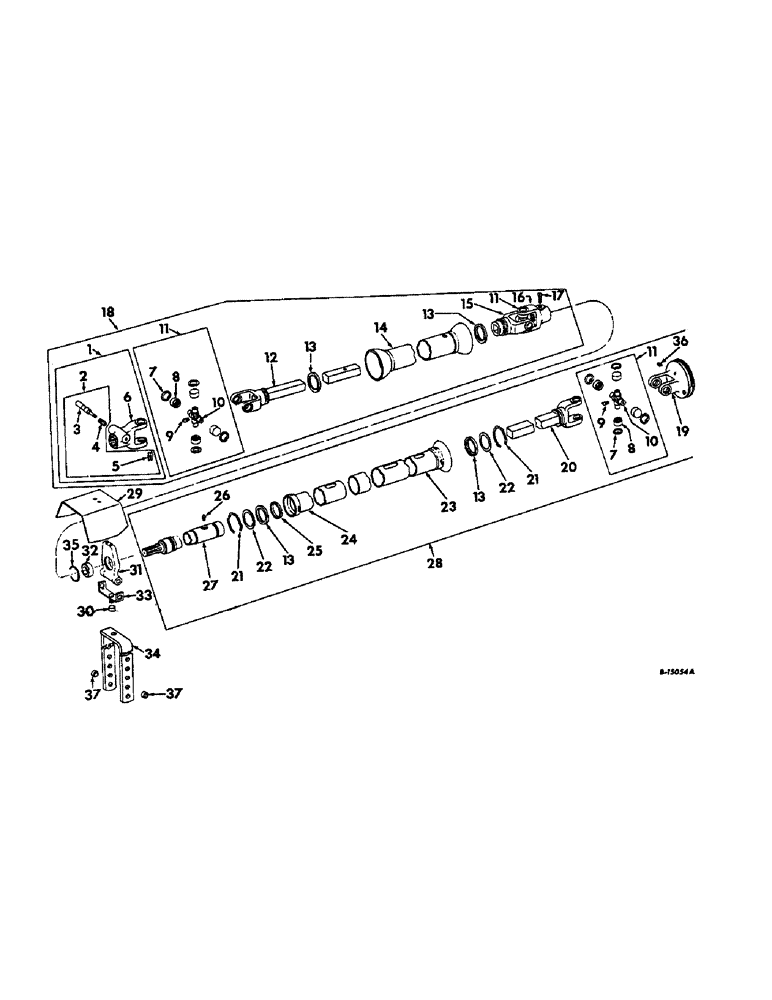

Запчасти Case IH 27 (C-28) - POWER TAKE-OFF DRIVE SHAFTS

1

568100R92

YOKE

W/QA PIN

1шт.

2

455346R21

PIN

lock unit

1шт.

3

(Not serviced separately)

1шт.

4

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X lock

1шт.

6

(Not serviced separately)

1шт.

7

576420R1

RING

bearing retainer snap

8шт.

8

569044R91

BEARING ASSY

ASSY, cross

8шт.

9

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

2шт.

10

(Not serviced separately)

1шт.

11

569047R91

REPAIR KIT

KIT, cross service

2шт.

12

666734R91

YOKE

& SQUARE SHAFT

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

4шт.

14

666735R91

SHIELD

1шт.

15

666736R1

YOKE

W/PIN HOLE

1шт.

16

576433R1

FORK

YOKE, splined

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

17

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set

1шт.

18

666729R91

SHAFT ASSY, front half main drive

1шт.

19

670707R11

YOKE W/LUB FITTING IMPLEMENT END

1шт.

20

66673R91

YOKE & SQUARE SHAFT

1шт.

21

613436R1

CLAMP

RING, brg retainer snap

2шт.

22

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

23

670708R1

SHIELD ASSY, outer

1шт.

24

666738R91

SHIELD ASSY, inner

1шт.

25

613439R1

BRACKET

BEARING, inner

1шт.

26

102467H

FITTING

1/4-28NF, 2 str lub

1шт.

27

666740R91

SHAFT

TUBE & SLEEVE, brg stub

1шт.

28

671094R91

SHAFT ASSY, rear half main drive

1шт.

29

667798R11

SHIELD

W/DECAL, PTO brg box

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

674733R1

SPACER

BUSHING, PTO pedestal

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

SCREW, 1/2-13 x 4-3/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

31

662022R1

BOX

PTO brg center

1шт.

32

613174R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

ASSY, propellar shaft front

1шт.

33

674734R1

BRACKET

PIVOT ASSY, bracket

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 MF two way lock

1шт.

20825R1

WASHER

25/32 x 2 x 11 ga C-Z

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5 znd hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

34

674729R1

RING

PEDESTAL ASSY, PTO

1шт.

35

UA20551

RING

propellar shaft brg snap

1шт.

36

19629R91

FITTING, 1/8-27 self tap. lub

2шт.

37

674732R1

SPACER

BUSHING, PTO pedestal

2шт.
