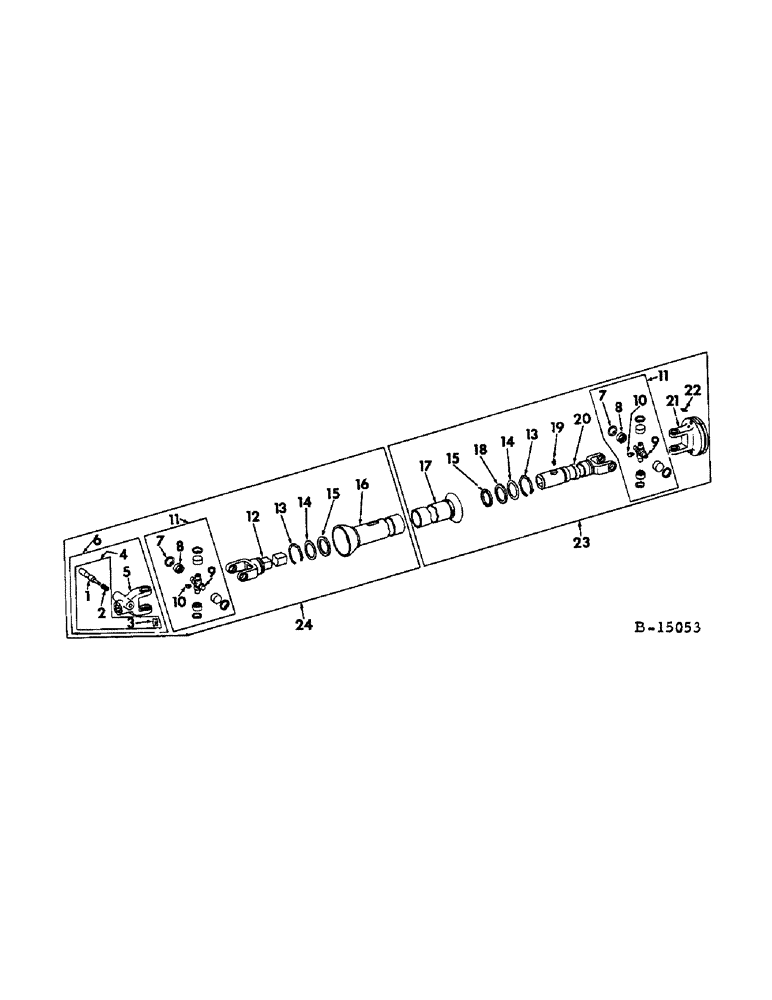

Запчасти Case IH 27 (C-27) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLES

1

(Not serviced separately)

1шт.

2

455347R1

VALVE SPRING

SPRING, lock pin unit

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X lock

1шт.

4

455346R21

PIN

lock unit

1шт.

5

(Not serviced separately)

1шт.

6

568100R92

YOKE

W/QA PIN

1шт.

7

576420R1

RING

brg retainer snap

8шт.

8

569044R91

BEARING ASSY

ASSY, cross

8шт.

9

(Not serviced separately)

1шт.

10

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

2шт.

11

569047R91

REPAIR KIT

KIT, cross service

2шт.

12

667816R91

YOKE

& SHAFT ASSY, rectangular

1шт.

13

613436R1

CLAMP

RING, snap

2шт.

14

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

15

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon, replaces 613439R1

2шт.

16

668405R91

SHIELD

outer

1шт.

17

670708R1

SHIELD ASSY, inner

1шт.

18

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

1шт.

19

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

20

667817R91

YOKE

ASSY, tube & sleeve

1шт.

21

670707R11

YOKE ASSY, flange

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap. lub

1шт.

23

670706R91

SHAFT ASSY, main rear drive

1шт.

24

668370R91

JOINT

SHAFT ASSY, tractor half drive

1шт.
