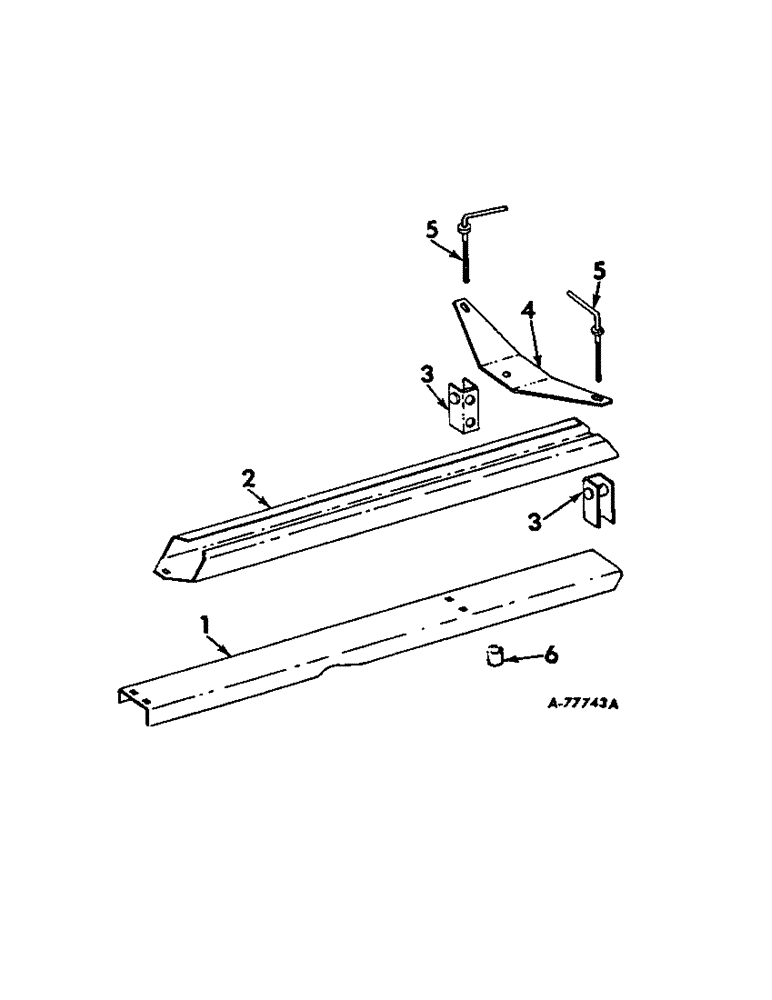

Запчасти Case IH 27 (C-26) - BALE TENSION DEVICE

1

670678R91

CHANNEL ASSY, lower tension

1шт.

2

667830R2

CHANNEL, upper tension

1шт.

3

671126R91

SUPPORT

ASSY, bale tension

2шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z sq-nk crg

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

2шт.

4

670680R1

SPRING

tension channel

1шт.

15143R1

BOLT,Sq Nk, 7/16" - 14 x 3"

7/16 x 3 sq-nk crg

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

5

670681R91

SCREW

ASSY, tension adjusting

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

6

23372S

SPACER,1/2" Pipe x 2 9/16"

1/2 x 2-9/16 std pipe, replaces 670685R1

2шт.

15172R1

BOLT, 3/8 x 3-1/2 sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
