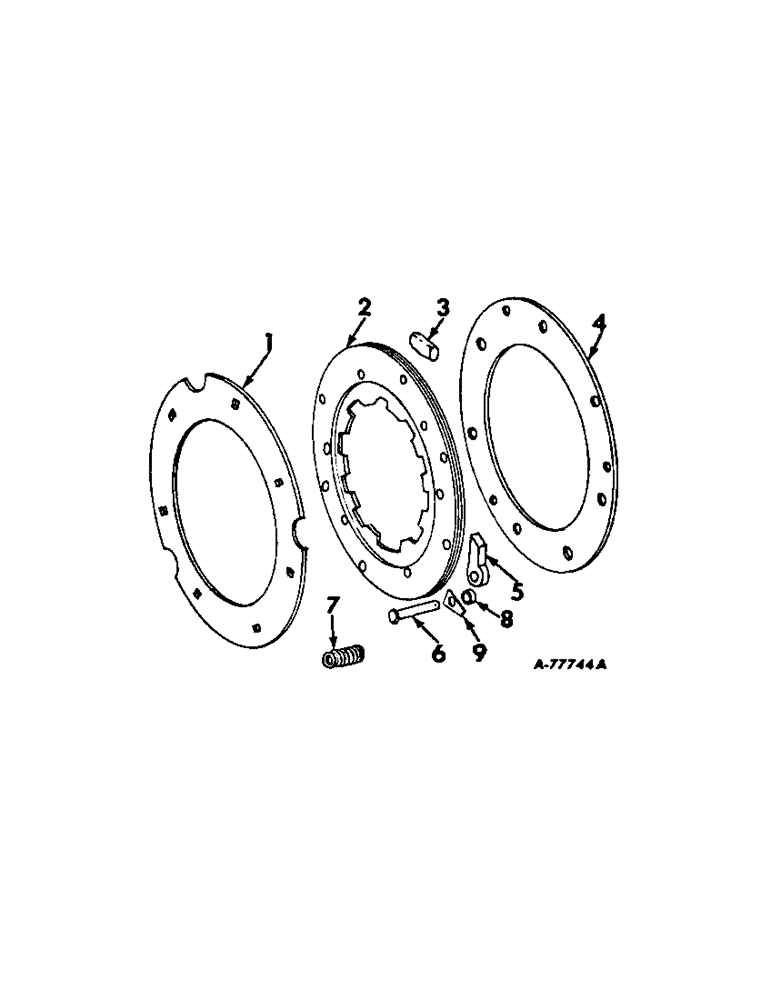

Запчасти Case IH 27 (C-26[A]) - POWER TAKE-OFF DRIVE SHAFT CLUTCH

1

662270R1

PLATE

clutch pressure

1шт.

2

670688R91

DISC

ASSY, clutch

1шт.

2

670974R1

FACING W/RIVETS, clutch

2шт.

113343

RIVET, 3/16 x 1/2 brass ov-hd tubular

12шт.

3

670687R11

SPACER

ASSY, clutch

1шт.

4

662269R1

PLATE

clutch back

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

662241R1

RATCHET

DOG, overrunning clutch

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1-11/16 C-Z rod end

2шт.

7

M1015

SPRING

clutch

7шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 znd sq-nk crg

7шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

7шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

7шт.

8

667239R1

DISC

SHIM, over-running clutch dog .010 (or as required)

2шт.

9

673759R1

ANCHOR

CLIP, clutch dog pin

2шт.
