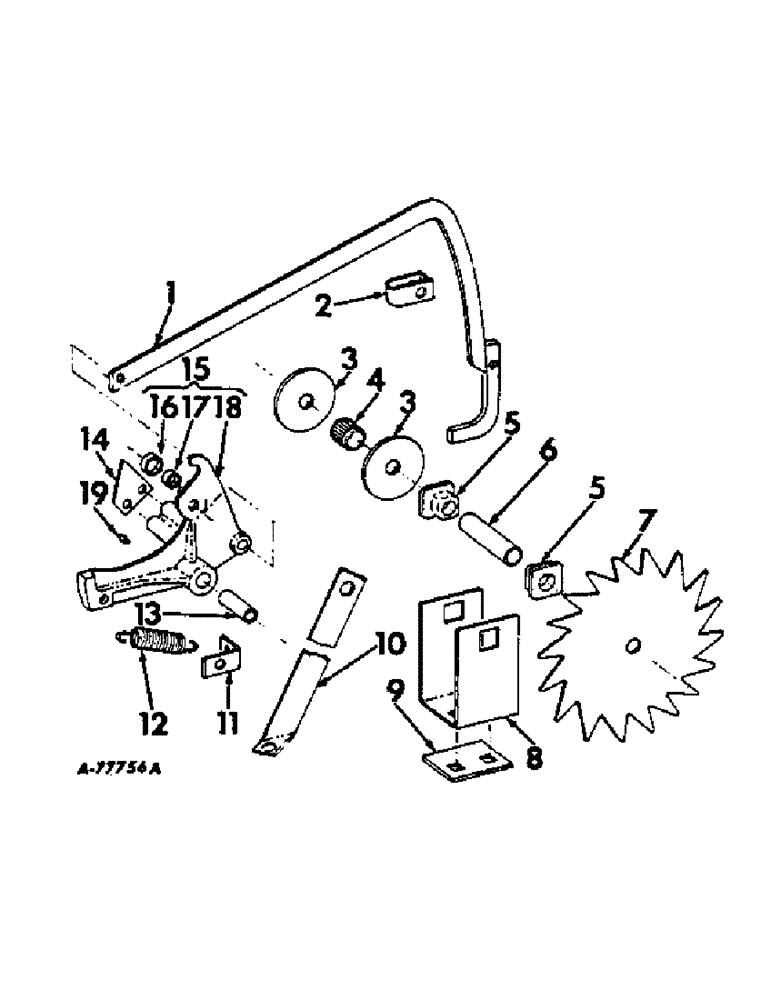

Запчасти Case IH 27 (C-25) - BALE LENGTH CONTROL

1

670666R92

ROD ASSY, trip

1шт.

19269R1

LOCK PIN,3/8" x 1", Slotted

PIN, 3/8" x 1", Slotted

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q3534

HEADED PIN,9.53mm OD x 38.1mm L

PIN, 3/8 x 1-1/2 std-hd

1шт.

2

670669R1

COLLAR

trip set

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

3

667782R1

SHEAVE

trip rod

2шт.

17845R1

BOLT, 5/8 x 5-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

667781R1

ROLLER

trip rod

1шт.

5

668999R1

BUSHING

meter wheel flanged

2шт.

6

669000R1

TUBE, meter wheel shaft

1шт.

7

669001R1

WHEEL, bale length control

1шт.

8

670665R1

BRACKET, meter wheel shaft brg

1шт.

9

670670R1

SPACER, meter wheel bracket

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

10

670677R2

STRAP, trip lever support

1шт.

17450R1

BOLT, 5/8 x 1-1/4 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

670675R1

ANGLE, trip lever spring

1шт.

12

13985V

SPRING

trip lever return

1шт.

13

670676R1

BUSHING, trip lever pivot

1шт.

17627R1

BOLT

1/2 x 3 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

670674R2

SUPPORT

CAM, trip arm unlocking lock

1шт.

324711R1

BOLT

5/16 x 3/4 hex-hd nylock

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

670671R31

ARM

ASSY, trip

1шт.

16

670673R2

BUSHING

ROLLER, trip arm

1шт.

17

671614R1

BUSHING

trip arm roller

1шт.

18377R1

RIVET, 1/2 x 7/8 wagon-box-hd solid

1шт.

18

(Not serviced separately)

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tap. str lub

1шт.

670865R91

SET, product graphic, the following are also included in this set

1шт.

2750502R1

PRODUCT GRAPHIC

IH on bale chamber sides rear

2шт.

2751271R1

PRODUCT GRAPHIC

International, replaces 2751051R1, on twine container back sheet

1шт.

2751130R1

PRODUCT GRAPHIC

International on sheet above pickup

1шт.
