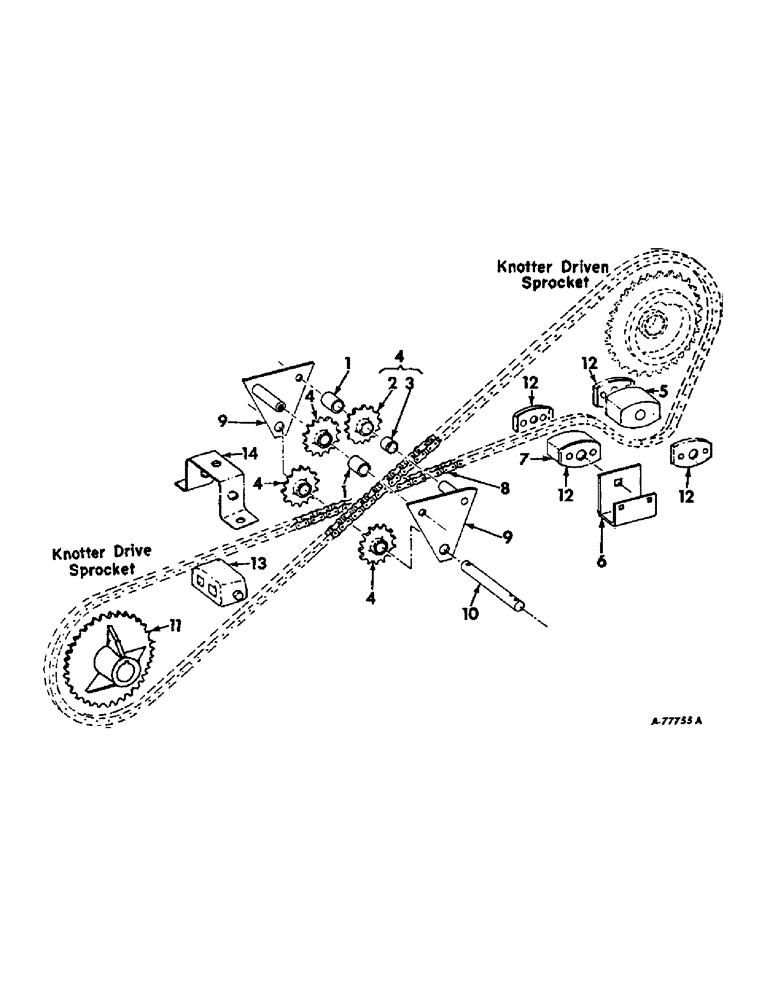

Запчасти Case IH 27 (C-24) - KNOTTER DRIVE CHAIN AND IDLERS

1

513493R1

SPACER, knotter drive shaft retainer, 5889N and below

2шт.

2

(Not serviced separately)

1шт.

3

670499R1

BUSHING

BEARING, idler knotter drive, 5889N and below

4шт.

4

670663R11

SPROCKET ASSY, knotter drive idler, 5889N and below

4шт.

5

668147R1

BLOCK

knotter idler

1шт.

15144R1

BOLT

1/2 x 3 sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

6

670664R1

CHANNEL

BRACKET, center knotter drive idler

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

667459R1

BLOCK

idler

1шт.

15110R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

CARRIAGE, Short NK, 1/2"-13 x 2 1/2", G2

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

8

CHAIN, knotter drive, use 118 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft rolls marked 569089R91 and 1 connecting link 456980R91

1шт.

9

670936R91

RETAINER ASSY, knotter drive, 5889N and below

2шт.

17405R1

BOLT, 3/8 x 1/2 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

670661R1

SHAFT, knotter drive idler, 5889N and below

1шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

8шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

11

670563R1

DRIVE SPROCKET

SPROCKET, knotter drive 39T

1шт.

Q3489

WASHER

1-25/32 x 2-1/2 x 16 ga

2шт.

297059

WASHER, 1-25/32 x 2-1/4 x 22 ga, (or as required)

2шт.

12

673666R1

CAP

block tightener end, 5890N and up

4шт.

15144R1

BOLT

1/2 x 3 sq-nk crg

1шт.

15110R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

CARRIAGE, Short NK, 1/2"-13 x 2 1/2", G2

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

13

673710R1

SEPARATOR

chain, 5890N and up

1шт.

14

673711R1

SUPPORT

BRACKET, chain idler, 5890N and up

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

1шт.
