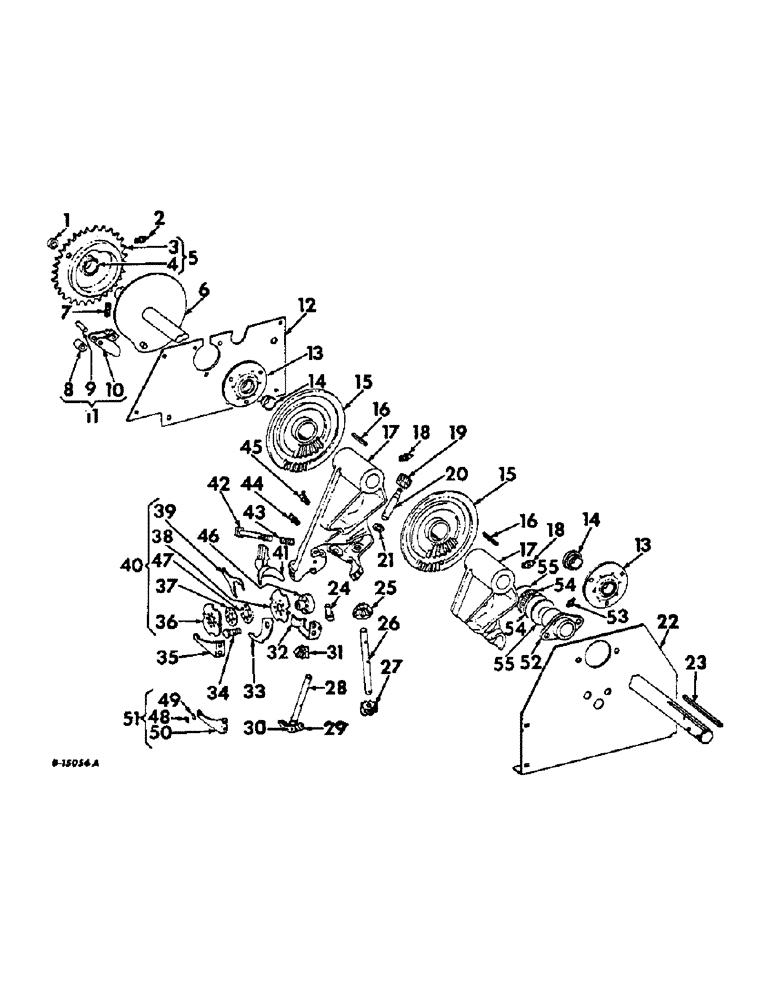

Запчасти Case IH 27 (C-22) - KNOTTER

1

670646R1

ROLLER

trip arm

1шт.

21055R1

PIN, 3/8 x 1-9/16 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga (or as req)

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap. lub

1шт.

3

(Not serviced separately)

1шт.

4

670659R1

BUSHING

knotter shaft

2шт.

5

670654R11

DRIVE SPROCKET

SPROCKET ASSY, driven 39T

1шт.

6

670647R31

SHAFT

ASSY, knotter

1шт.

Q251

WASHER

1-7/32 x 1-3/4 x 22 ga (or as req)

9шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

615264R1

WASHER

1-7/32 x 1-3/4 x 16 ga

6шт.

7

V680

SPRING

trip dog

1шт.

8

V341

PAWL

ROLLER, trip dog

1шт.

9

V690

PIN

STUD, trip dog roller

1шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 znd hex-hd mach

1шт.

19844R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA stop

1шт.

10

(Not serviced separately)

1шт.

11

670651R11

PAWL

DOG W/ROLLER & STUD, trip

1шт.

12

670643R91

SUPPORT ASSY, knotter shaft brg RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

670657R91

BALL BEARING

ASSY, knotter shaft, 2 used 4771M and below, 1 used 4772M and up

1шт.

14

670658R11

COLLAR

COLLAR, bearing locking, 2 used 4771M and below, 1 used 4772M and up

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

670649R1

CAM

knotter

2шт.

16

670650R1

KEY

3/8 x 2 x 1/4 flat parallel

2шт.

17139R1

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

17

666510R92

KNOTTER ASSY.

KNOTTER ASSY

2шт.

17

495965R94

KNOTTER ASSY.

FRAME W/WEARING PIECE, knotter

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF self tapping lub, replaces 109461

6шт.

19

668416R1

GEAR

helical driven cord holder

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 C-Z hex. jam

2шт.

20

668415R1

SPINDLE

cord holder

2шт.

21

667239R1

DISC

SHIM, knotter hook shaft & cord holder spindle (or as required)

10шт.

22

670642R1

SUPPORT, knotter shaft brg LH, 4771M and below

1шт.

15562R1

BOLT

3/8 x 1-1/4 No. 3 plow

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

673350R1

SUPPORT

knotter shaft bearing LH, 4772M and up

1шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd No. 3 plow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

23

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

24

V618H

SPACER

PIECE, knotter frame wearing

2шт.

117898

PIN

5/32 x 1-1/6 str

2шт.

25

495192R3

GEAR

PINION, cord holder drive bevel

2шт.

26

495433R1

SHAFT HOUSING

SHAFT, cord holder drive

2шт.

Q5066

PIN

6 ga x 31/32 str

4шт.

Q232

WASHER

37/64 x 15/16 x 20 ga (or as required)

4шт.

Q3476

WASHER

37/64 x 15/16 x 24 ga (or as required)

4шт.

27

495425R1

GEAR

PINION, cord holder helical

2шт.

28

666511R92

TWISTER

HOOK ASSY, knotter

2шт.

29

666517R92

HOOK

JAW ASSY, knotter

2шт.

30

666515R1

PIN

knotter jaw

2шт.

Q3476

WASHER

37/64 x 15/16 x 24 ga

2шт.

31

495197R3

GEAR

PINION, Bill Hook

2шт.

Q3854

PIN

6 ga x 27/32 str

2шт.

32

667408R1

SPRING

twine end retainer

2шт.

33

495474R3

SHIM

BLADE, cord holder keeper

2шт.

34

495432R1

SCREW

STUD, cord holder keeper pivot

2шт.

35

495463R4

KNIFE

twine, optional w/668961R21

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

12шт.

36

495462R3

DISC

DISK, cord holder

2шт.

473-11010

SCREW,Slotted Flat Hd, #10-24 x 5/8"

10-24 x 5/8 slt-f-hd tap

12шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

37

495504R1

SHIM

cord holder (or as required)

6шт.

37

667238R1

SHIM

cord holder, .003 (or as required)

4шт.

37

667547R1

SHIM, cord holder plastic

4шт.

38

672524R2

DISC

DISK, cord holder rear, replaces 495442R2, if 495446R2 is required order 672524R2, 668965R1, 668967R1, 17064R1 and 6110532

2шт.

39

495475R3

HALF BLADE

CLEANER, cord holder

2шт.

40

495619R95

DISC

DISK AND CLEANER ASSY, cord holder

2шт.

41

667563R1

CAM

knotter jaw closing

2шт.

42

667533R1

BOLT,3/8" - 16 x 2 7/8"

3/8-16 x 2-7/8 special

2шт.

43

U13033

SPRING

knotter closing cam

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

44

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Replaces 16964R91

2шт.

45

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-27 PTF 90 deg angle self tapping lub, replaces 109462

4шт.

46

668965R1

HUB

cord holder

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

47

668967R1

RETAINER

SPACER, cord holder

2шт.

48

200425C1

SPACER

twine knife, (or as required)

6шт.

49

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 znd pan-h slt mach

2шт.

50

(Not serviced separately), order 668961R21

1шт.

51

668961R21

KNIFE

ASSY, twine, optional w/495463R4

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 znd hex-hd mach

4шт.

102380

SHANK

WASHER, 1/4 C-Z med lock

4шт.

52

667818R1

FLANGE

BEARING, knotter LH, 4772M and up

1шт.

20696R1

DISC

WASHER, 1-7/32 x 1-3/4 x 11 ga, (or as required)

3шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga C-Z, (or as required)

3шт.

53

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping lub, 2772M and up

1шт.

54

667813R1

COLLAR CLAMP

COLLAR, knotter shaft adj, 4772M and up

2шт.

443100

STUD

No. 12 x 1/2 rd-hd groove drive

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

3шт.

55

615264R1

WASHER

1-7/32 x 1-3/4 x 16 ga, 4772M and up

2шт.
