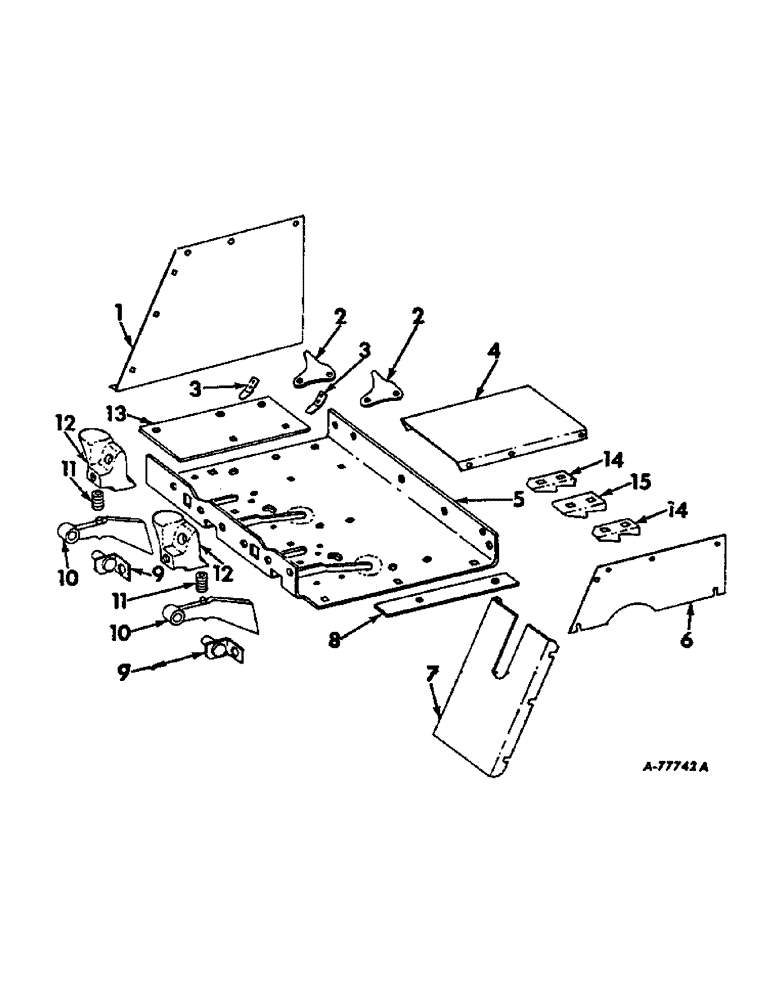

Запчасти Case IH 27 (C-21) - KNOTTER CHAIN SHIELD AND BREAST PLATE

1

670638R1

SHEET, knotter shield RH

1шт.

2

495412R71

NO LONGER SERVICED

FINGER W/RIVETS, breast plate

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

104166

SCREW

RIVET, 1/4 x 5/8 small csk-hd solid

4шт.

3

662112R1

SPRING

twine retainer

2шт.

112620

RIVET

1/4 x 7/16 small csk-hd small

4шт.

15543R1

BOLT

3/8 x 3/4 No. 3 plow

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

670637R1

SHEET, knotter shield top

1шт.

5

670632R11

STRIPPER

PLATE ASSY, breast

1шт.

6

670639R1

SHEET, knotter shield LH

1шт.

7

670640R1

PANEL, knotter shield front

1шт.

14985R1

BOLT

1/4 x 1/2 sq-nk crg

4шт.

14993R1

BOLT, 1/4 x 3/4 sq-nk crg

3шт.

109084

NUT,1/4"-20, G5

7шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

Q392

WASHER

9/32 x 3/4 x 18 ga

7шт.

144811

SCREW,Sl Rnd Hd, #10 - 12 x 1/2"

10-12 x 1/2 C-Z slt-rd-hd tap

8шт.

8

662149R1

FILLER, breast plate LH

1шт.

9

670633R91

SUPPORT

BRACKET ASSY, hay retainer

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

670636R1

RETAINER

hay top

2шт.

11

668869R1

SPRING

hay retainer

2шт.

12

662009R3

ANCHOR

knotter

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 No. 3 plow

2шт.

102635

NUT,3/8"-16, G5

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

13

667780R2

STRAP, filler breast plate RH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

495929R2

WEDGE

hay retainer narrow

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

495930R1

WEDGE

hay retainer wide

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
