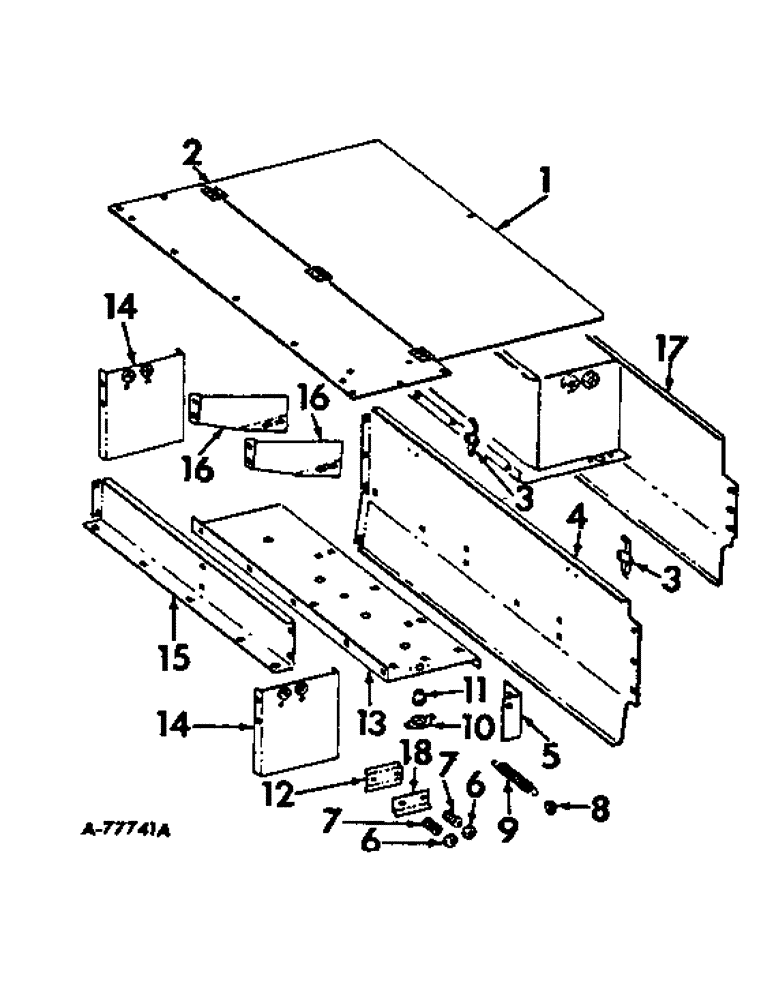

Запчасти Case IH 27 (C-20) - TWINE CHEST

1

670627R91

DOOR

CHEST ASSY, twine door

1шт.

2

670628R1

HINGE

twine chest door

3шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 5/16 small truss-hd solid (PN 135285)

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

106884

RIVET

3/16 x 1/2 small truss-hd solid

6шт.

3

669184R1

CLAMP

twine chest door

2шт.

435141

SCREW

10-24 x 3/8 slt-pan-hd mach

4шт.

110633

NUT,#10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

670619R2

SHEET, twine chest rear, 4771M and below

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

9шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

9шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

670622R2

ANGLE, twine chest

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

B32120

WASHER

twine roller spring cup

2шт.

18635R1

BOLT,Short NK, 1/4"-20 x 3", G2

1/4 x 3 znd sq-nk crg

2шт.

665621R1

NUT, 1/4-20 wing

2шт.

7

76DS

SPRING

twine tension, replaces 323

2шт.

8

670621R1

RING

slack arm

1шт.

9

457094R1

SPRING

slack arm

1шт.

103418

SWITCH,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

10

352133R1

PLATE

twine guide mounting

1шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 slt-pan-hd mach

2шт.

110633

NUT,#10-24

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

670617R1

SPARE PART

GUIDE, twine

1шт.

12

662380R1

GUIDE

PLATE, twine tension inside

1шт.

13

670620R1

BOTTOM, twine chest, 4771M and below

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

670623R91

END ASSY, twine chest LH, 4771M and below

2шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

10шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

15

670626R1

SHEET, twine chest front, 4771M and below

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

11шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

11шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

16

670625R1

PARTITION, twine chest, 4771M and below

2шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

673407R1

CHEST ASSY, twine, 4772M and up

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

12шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

673760R1

PLATE

twine tension outside

1шт.
