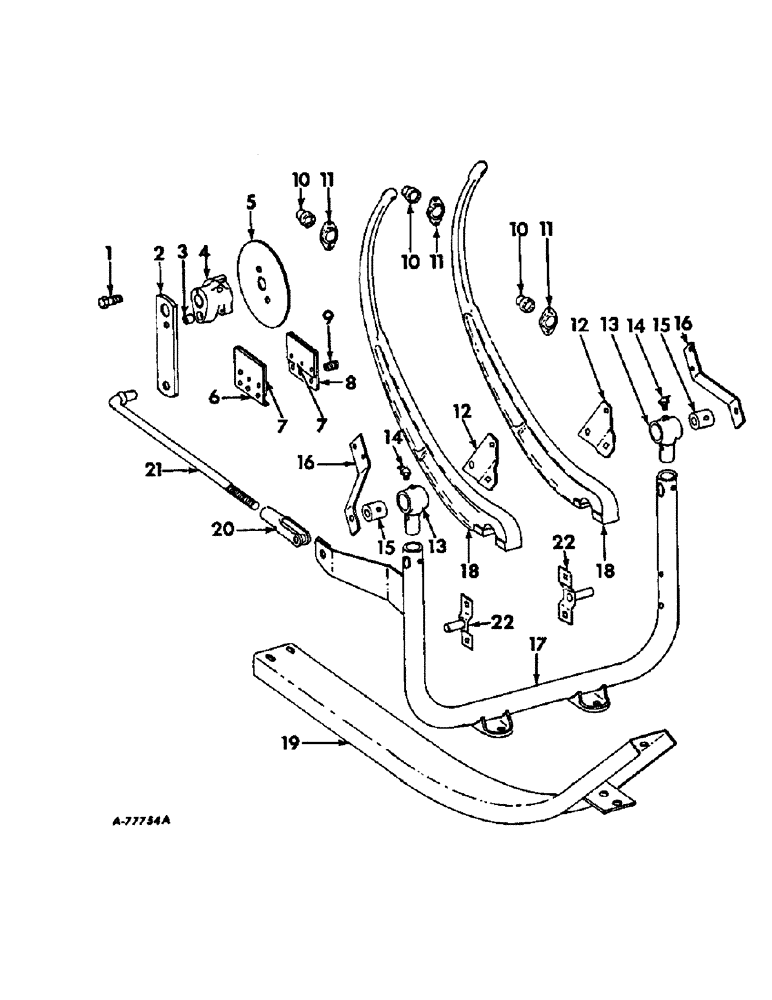

Запчасти Case IH 27 (C-18) - NEEDLES, DRIVE AND GUARD

1

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

SCREW, 5/16-24 x 2 hex-hd cap, shear bolt

1шт.

2

662283R1

CRANK

needle drive

1шт.

3

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

668002R1

HUB

NEEDLE DRIVE CRANK

1шт.

443056

PIN,3/8" x 2", Type F

Grooved, 3/8" x 2", Type F

1шт.

5

662153R1

PLATE

knotter brake pressure

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

662099R1

SHOE

knotter shaft brake LH

1шт.

7

668997R1

LINING

knotter shaft brake

2шт.

8

662098R1

BRAKE SHOE

SHOE, knotter shaft brake RH

1шт.

9

U13033

SPRING

knotter brake

2шт.

17600R1

BOLT, 5/16 x 2-3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

10

670617R1

SPARE PART

GUIDE, twine

3шт.

11

352133R1

PLATE

twine guide mounting

3шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 slt-pan-hd mach

6шт.

110633

NUT,#10-24

6шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

12

671634R1

PIVOT, needle tie pipe, 4771M and below

2шт.

15126R1

BOLT, 1/2 x 2-3/4 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14996R1

BOLT, 7/16 x 3/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

662029R1

PIVOT

BEARING, needle pivot, 4771M and below

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8 x 1-3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF 65 deg angle lub, replaces 109462

2шт.

15

671636R1

BUSHING, tie pipe pivot, 4771M and below

2шт.

Q121

WASHER

1-9/32 x 2 x 16 ga (or as)

6шт.

15

673304R1

PRESS

BUSHING, tie pipe pivot, 4772M and up

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

16

671635R1

STRAP, needle pivot support, 4771M and below

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

16

673305R1

SUPPORT

STRAP, needle pivot support, 4772M and up

2шт.

17

662168R91

PIPE

ASSY, needle tie, 4771M and below

1шт.

17

673299R1

NO LONGER SERVICED

PIPE ASSY, needle tie, 4772M and up

1шт.

18

662034R2

NO LONGER SERVICED

NEEDLE, twine, 4771M and below

2шт.

179887

CABLE

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

PO10535

WASHER

17/32 x 1-/14 x 11 ga

4шт.

18

673306R1

NO LONGER SERVICED

NEEDLE, twine, 4772M and up

2шт.

19

670710R91

GUARD ASSY, needle

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

20

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 adj rod end

1шт.

98795H

CLEVIS PIN,5/8" x 1.781"

PIN, 5/8 x 1-27/32 rod end

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

662282R1

PITMAN

PITTMAN, needle

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

2шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

673302R1

PIVOT ASSY, needle tie pipe, 4772M and up

2шт.

14996R1

BOLT, 7/16 x 3/4 sq-nk crg

4шт.

NLS

NO LONGER SERVICED

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

350515R1

WASHER

21/32 x 1 x 16 ga (or as required)

8шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.
