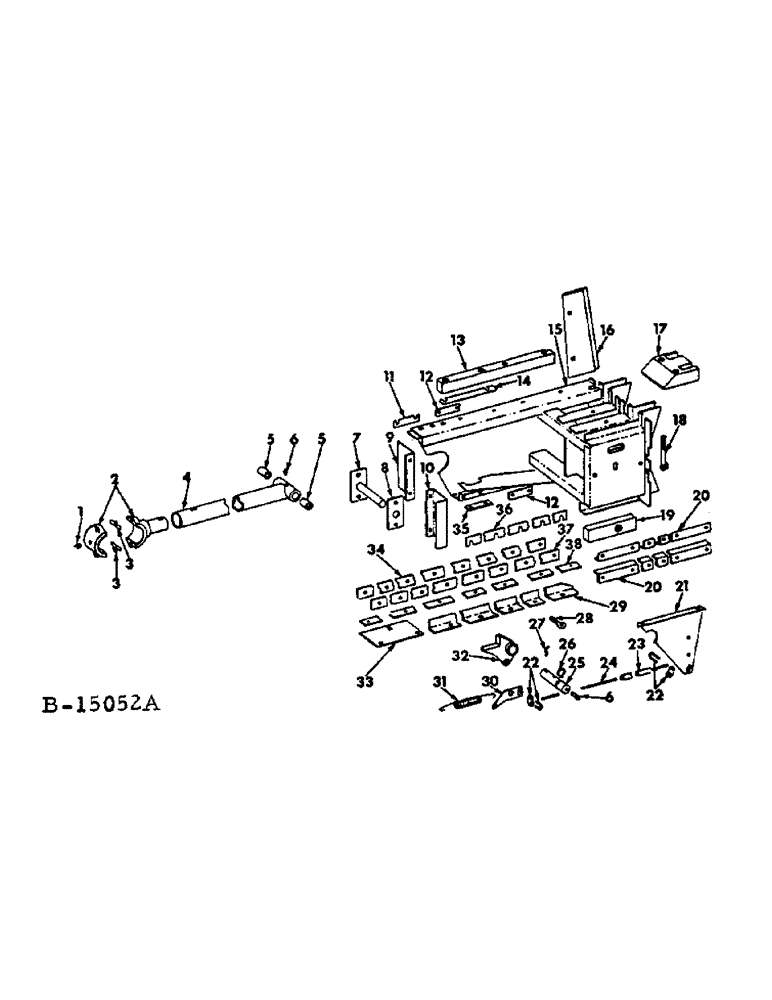

Запчасти Case IH 27 (C-16) - PLUNGER

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

495177R21

BEARING ASSY,4.5" OD x 2.97"

BEARING ASSY, Pitman front

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

2шт.

3

495278R2

SHIM

Pitman bearing

16шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

670587R91

PITMAN

ASSY

1шт.

5

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

Pitman rear

2шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

7

668358R91

SUPPORT

BLOCK ASSY, plunger Pitman

1шт.

8

668359R1

BLOCK

Pitman

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 znd sq-nk crg type 4 material

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

670582R1

BAFFLE

plunger RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

670581R1

BAFFLE

plunger LH

1шт.

11

668368R1

SHIM

lower plunger, .0299 (or as required)

8шт.

12

668367R1

PAD

wear lower

4шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

670578R2

BLOCK

plunger upper right

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

453838

NUT

5/16-18 C-Z tee

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

668365R1

SHIM,45.72mm OD x 0.76mm Thk

upper plunger right (or as required)

4шт.

15

670574R94

PLUNGER

ASSY

1шт.

16

670434R1

KNIFE ASSY

KNIFE, hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Repair Hd 5/8"-11 x 1 1/2", G2, Full Thd

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

668375R1

BLOCK

plunger upper center

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

667922R1

BOLT,Eye, 5/8" - 11 x 4.69"

plunger eye

1шт.

102637

NUT,1/2"-13, G5

2шт.

19

667923R1

SLIDE

plunger

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

1шт.

20

667935R1

ANGLE

plunger guide

2шт.

21

670593R1

BRACKET, plunger stop

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

670595R91

TERMINAL CONNECTOR

CLAMP ASSY, plunger stop cable

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

4шт.

23

670594R1

HOSE

SHIELD, plunger stop cable

1шт.

24

670591R1

CABLE

ROPE, wire

1шт.

25

667954R1

PIVOT, plunger stop

1шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga (or as required)

2шт.

26

454417R1

SNAP RING,#100, Ext

Ring, Snap, , plunger stop pivot #100, Ext

1шт.

27

11453P

PIN

plunger stop pivot lock

1шт.

28

668765R1

BOLT

EYEBOLT, plunger guide

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

1шт.

29

670584R1

ANGLE

plunger guide

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

30

670980R1

CLIP, plunger stop pin

1шт.

31

655919R1

SPRING

plunger stop

1шт.

Q805

PIN, 5/8 x 7/8 std-hd

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

32

667952R1

STOP

plunger

1шт.

33

670586R1

BRACKET

plunger guide angle

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 No. 3 plow

2шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

5шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

34

667937R1

NO LONGER SERVICED

FILLER, plunger thrust spacer

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 No. 3 plow

7шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

35

670579R1

NO LONGER SERVICED

RUNNER, plunger

2шт.

15550R1

PLOW BOLT,#3 Hd, 5/16" - 18 x 1"

BOLT, PLOW, 5/16"-18 x 1", G2, Full Thd

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

664542R1

SHIM

plunger thrust spacer lower

1шт.

37

667936R1

SPACER

plunger thrust lower

1шт.

38

670585R1

RAIL

RUNNER, plunger roller

1шт.
