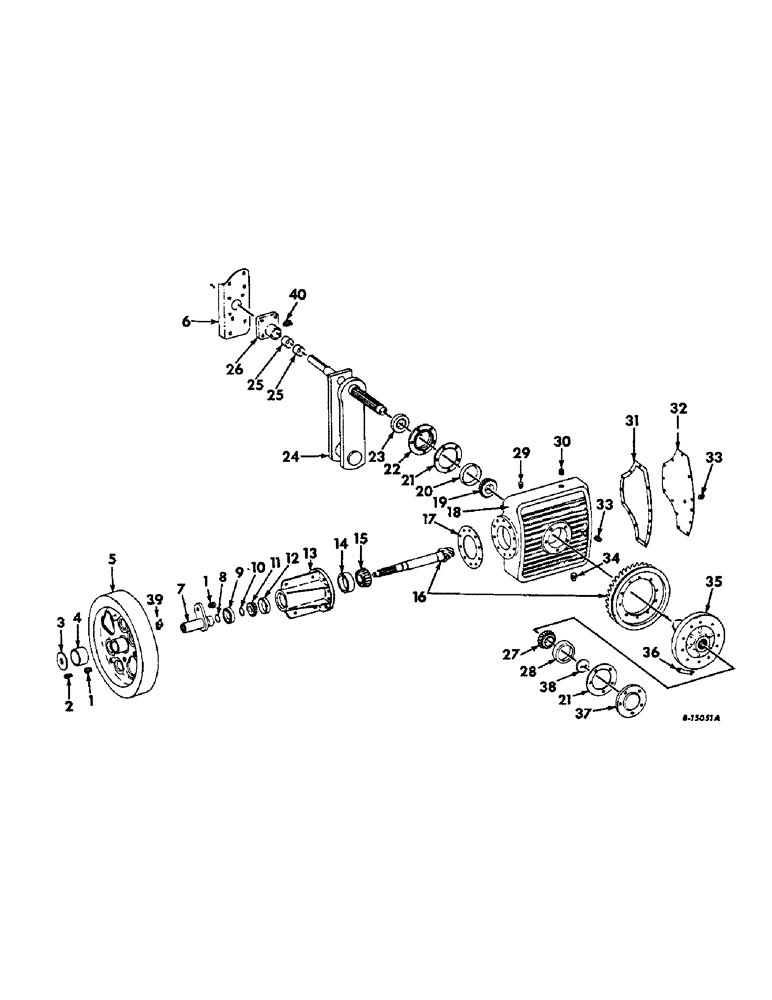

Запчасти Case IH 27 (C-14) - MAIN DRIVE

1

662122R1

SHEAR BOLT BUSHING,Hex, 3/4" - 16 x 1/2"

BUSHING, flywheel shear bolt

2шт.

2

181347

BOLT,Hex, 5/16" - 24 x 2", Gr 5

SCREW, 5/16-24 x 2 hex-hd cap, shear bolt

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

670572R91

WASHER ASSY, flywheel thrust

1шт.

4

662120R1

BUSHING

flywheel outer

1шт.

5

667700R21

FLYWHEEL

W/BUSHINGS

1шт.

6

670571R1

SUPPORT ASSY.

SUPPORT, plunger crank brg RH

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

667633R11

NO LONGER SERVICED

HUB W/BUSHING, flywheel

1шт.

8

310931R1

O-RING

RING, flywheel hub O

1шт.

9

380768R91

OIL SEAL

pinion shaft front oil

1шт.

10

667605R1

SHIM

brg preload, .005 (or as required)

3шт.

10

667606R1

SHIM

brg preload, .007 (or as required)

2шт.

10

667607R1

SHIM

brg preload, .020 (or as required)

1шт.

11

62923R91

ROLLER BEARING

ASSY, pinion shaft front cone

1шт.

12

130503H

BEARING CUP

BEARING, pinion shaft front cup

1шт.

13

667601R1

CASE

main drive gear front

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q5035

WASHER

17/32 x 1 x 16 ga

4шт.

376106R1

SCREW, 7/16-14 x 1-1/2 hex-hd nylock cap

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

14

107577R1

BEARING, CUP

BEARING, pinion shaft rear cup

1шт.

15

662062R91

ROLLER BEARING

ASSY, pinion shaft rear cone

1шт.

16

662050R11

STRIPPER PACKAGE

GEAR ASSY, ring and pinion

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

17

662088R1

SHIM

main drive gear case, .020 (or as required)

2шт.

17

662089R1

SHIM

main drive gear case, .007 (or as required)

2шт.

17

662090R1

SHIM

main drive gear case, .005 (or as required)

3шт.

18

667600R2

CASE

main drive gear rear

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21067R1

SCREW,, 3/4-10 x 2-1/2 hex-hd nylock cap

2шт.

19

ST2083

BEARING ASSY

main drive gear RH

1шт.

20

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

main drive gear cup

1шт.

21

662091R1

SHIM

main drive bevel gear, .005 (or as required)

8шт.

21

662093R1

SHIM

main drive bevel gear, .007 (or as required)

4шт.

21

662092R1

SHIM

main drive bevel gear, .020 (or as required)

2шт.

22

662017R1

COVER

main drive bevel gear brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylock cap

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

23

662066R91

OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk

plunger crank oil RH

1шт.

24

667632R92

CRANKSHAFT

ASSY, plunger, replaces 667629R91, if 667632R91 is required order 667632R92, 200525C1, 2229057R1 and 2120382

1шт.

25

670570R1

BUSHING

plunger crank RH

2шт.

26

670569R11

BUSHING

BEARING W/BUSHING, plunger crank RH

1шт.

27

971528R91

BEARING

ASSY, main drive gear cone

1шт.

28

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

BEARING, main drive gear cup

1шт.

29

663002R91

BREATHER

VENT ASSY, main drive gear box

1шт.

30

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1-11-1/2 automotive sq-soc-hd pipe, replaces 103876

1шт.

31

667603R1

GASKET

main drive gear box cover

1шт.

32

667602R11

COVER

ASSY, main drive gear case rear, 4772M and up also order 444574 plug

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

13шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

33

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 automotive sq-hd pipe, replaces 103866, 1 used 4771M and below, 2 used 4772M and up

2шт.

34

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe, replaces 103868

1шт.

35

670568R1

HUB

main bevel gear

1шт.

181432

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5

SCREW, 1/2-20 x 1-5/8 hex-hd cap

10шт.

36

261622R1

PLATE, LOCKING

LOCKPLATE, main drive gear hub cap screw

5шт.

37

667604R1

CAP

main drive bevel gear

1шт.

376106R1

SCREW, 7/16-14 x 1-1/4 hex-hd nylock cap

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

38

662117R1

RETAINER

WASHER, plunger crankshaft thrust, used w/667632R91

1шт.

15507H

SCREW,Hex, 5/16" - 24 x 1"

5/16-24 x 1 dld-hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

200525C1

WASHER

plunger crankshaft thrust, used w/667632R92

1шт.

229057R1

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

39

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tapping lub

1шт.

40

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 self tapping 45 deg angle lub

1шт.
