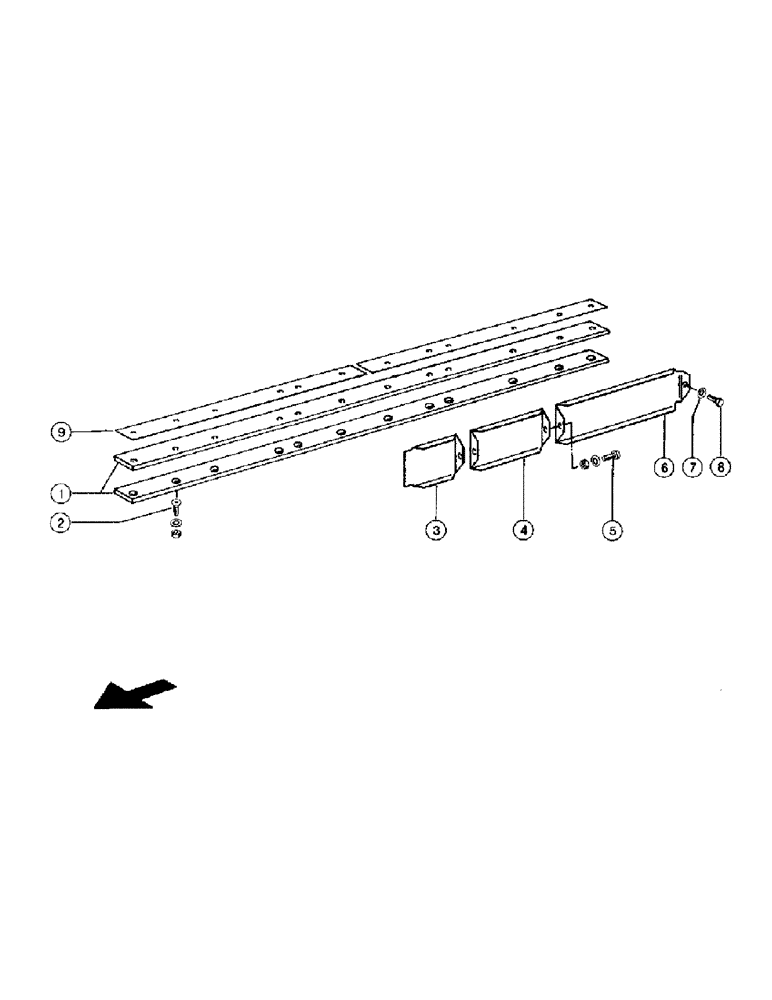

Запчасти Case IH 110 (025) - RAM RUNNERS (13) - Baling Mechanism

1

8170480

BAR

Guide rail

4шт.

2

2363300

SCREW

Countersunk bolt M 8x 25

40шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

40шт.

98-029447

WASHER

Contact washer A 8

40шт.

3

8170220

COVER

2шт.

4

8170230

COVER

2шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

98-029447

WASHER

Contact washer A 8

4шт.

6

8170240

COVER

2шт.

7

2393860

WASHER

Contact washer A 6

2шт.

8

2394370

SCREW

Hexagonal screw M 6x 16

2шт.

9

8306391

SHIM

0,5 mm

1шт.
